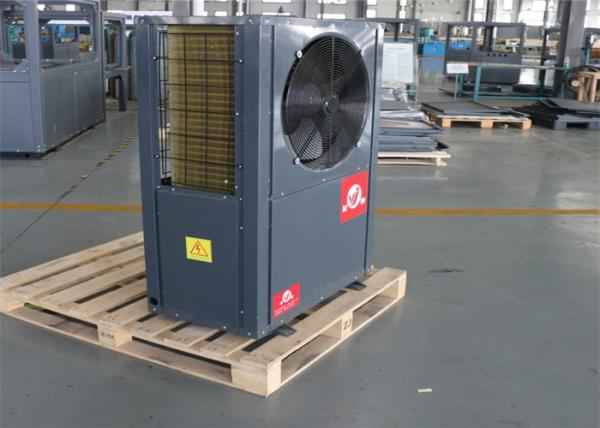

27.7A Commercial Air Source Heat Pump Swimming Pool Heater 320Kg 45℃ IP×4
27.7A Commercial Air Source Heat Pump Swimming Pool Heater 320Kg 45℃ IP×4
Specifications
Model Number :
YW-35D(10P)
Type :
Air Source Heat Pump
Product Name :
Commercial Heat Pump
Hot water rated temperature :
45℃
Use :
Swimming Pool Heater
Voltage :
380VAC/50Hz
Color :
White
Place of Origin :
China
Brand Name :
YouJIA New energy
Certification :
CCC, ISO, CQC
MOQ :
1 set
Price :
Negotiable
Packaging Details :
Reinforced Carton box with wooden tray
Delivery Time :
1-2 weeks
Payment Terms :
T/T
Supply Ability :
10 sets/day
Description

Schools Hotels Commercial Heat Pump Easy Installation Cooling Mode 35.4 KW

ASHPs are often paired with auxiliary or emergency heat systems to provide backup heat when outside temperatures are too low for the pump to work efficiently, or in the event the pump malfunctions. Since ASHPs have high capital costs, and efficiency drops as temperature decreases, it is generally not cost-effective to size a system for the coldest possible temperature scenario, even if an ASHP could meet the entire heat requirement at the coldest temperatures expected. Propane, natural gas, oil or pellet fuel furnaces can provide this supplementary heat.


Common commercial type


Applicable to schools, hotels, hospitals, factories, communities, clubs and other places where heating, cooling and hot water are required.


Imported fully enclosed scroll compressor with low noise;


The main components are all imported brands;


It can realize 45%~100% four-level energy regulation or frequency conversion adjustment;


Intelligent control, efficient and safe, easy to operate;


Intelligent defrosting design;


Small footprint, no need for machine room, easy installation and maintenance;


Widely used in public facilities such as hotel shopping malls, office buildings.

Heat pump function: Heating, cooling, hot water

Unit parameters:

Unit Type YW-35D(10P) YW-70D(20P) YW-140D(40P)

Rated power/frequency

 380V 3N~/50HZ

Cooling mode

 Cooling mode(KW) 35.4 70.8 141.6
input power(KW) 11.16 22.32 46.4
Heating mode

Nominal condition

(7℃)

 Heating(KW) 28.8 57.6 115.2
Rated input power(KW) 10.8 21.6 43.2

Low temperature condition

(-12℃)

Rated heating capacity

(KW)

 23.8 47.6 95.2

Rated input power

(KW)

 9.8 19.6 39.2
Maximum input current(A) 27.7 55.4 110.8
Circulating pump flow (m³/h) 6.43 12.87 25.72
Refrigerant/charge(R22/Kg) 9 18 36
Hot water rated temperature 45℃
Refrigeration inlet and outlet water temperature 5~15℃
Hot water maximum temperature 55℃
waterproof level IP×4
Anti-shock protection category I Grade
Ambient temperature range 30~40℃
Unit noise db(A) ≤60 ≤65 ≤65
Unit weight(Kg) 320 650 1300
Unit size(mm) 1590*850*1600 2000*1100*2090 2200*2000*2170

27.7A Commercial Air Source Heat Pump Swimming Pool Heater 320Kg 45℃ IP×4
