Villa Heat Pump Heating And Cooling System , Underfloor Heating Pump
Villa Heat Pump Heating And Cooling System , Underfloor Heating Pump
Specifications
Brand Name :
Yushen
Model Number :
SLNB-035Y
Certification :
CCC, ISO, CQC
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
10 sets/day
Delivery Time :
1-2weeks
Packaging Details :
Reinforced Carton box with wooden tray
Key word :
Villa Air Source Heat Pump system
Compressor capacity :
12.5HP
Function :
Air conditiong and under floor heating
Service area :
450M2
Compressor brand :
copeland
Description

Villa Air Source Heat Pump System for Heating and Cooling and Hot Water

Project Introduction

Location: E 117 N 37.5

Floor quantity: three

Building area: 450M2

System design: ultra low temperature air source heat pump+underfloor heating+AC coil

Quantity of air-source heat pump: one set

The project is used to provide air-conditioning projects for villas, with a heating area of about 450M2, a total building of 3 floors, energy-saving buildings; refrigeration rooms are not used at the same time; The system is designed to solve customer 's winter floor heating, summer central air-conditioning refrigeration, dehumidification function requirements.

The systen was successfully built and put into use in the spring of 2017, it is running well and stable

Product Information

  • Air source heat pump is 40% energy-saving than that of electric AC unit in heating.
  • high automation, easy operation
  • Water circulate inside the system, safe and comfortable
  • It could be connected with different enders, e.g. fan coil, radiator, floor heating, convenient and high-efficient

Model Parameter

Model SLNB-035Ycode name.pdf
Compressor capacity 12.5HP
Function Heating and Cooling
Electricity 380V-3N-50Hz
Working conditions ℃ -25~+45
Data Heata Nominal capacity KW 22.3
Input power KW 9.4
COP / 2.35
Heating IPLV(H) 2.7
Coolb Nominal capacity KW 28
Input power KW 10.4
COP / 2.7
Cooling IPLV(C) 2.7
A7W35c KW/COP 35.0/4.1
A2W35 KW/COP 28.5/3.60
A-7W35 KW/COP 23.5/2.9
A-15W55 KW/COP 20.2 /1.94
A-20W45 KW/COP 18.7/2.02
Max. running currency A 27
Compressor quantity set 1
Refrigerant/charging quantity kg / R22/9
Air blow type / Side
Water pipe diameter mm 32
Rating flow m³/h 5.9
Water side pressure loss kPa ≤45
Noise level dB(A) 62
Overall dimensions(L×W×H) mm 1490×900×1900
Weight kg 350

a: Nominal heating conditions: ambient dry bulb temperature-12℃, wet bulb temperature-14℃, outlet water temperature 41℃, water flow 0.172 * nominal heating capacity

A7W35 working condition: inlet air temperature 7℃, outlet water temperature 35℃

Yushen Products Advantages

  • Suitable for environmental temperature:-25℃ to +45 ℃ /-13℉ to 113 ℉
  • 35% more powerful than other products, long heating time and less defrosting time
  • No capacity decay under low temperature, keep high COP
  • Quality Components such as Copeland compressor, Danfoss valves
  • Pay attention to details such as every stainless-steel screw has cushion to prevent from water corrosion
  • Clean and clear wiring and lining
  • 100% finished products testing

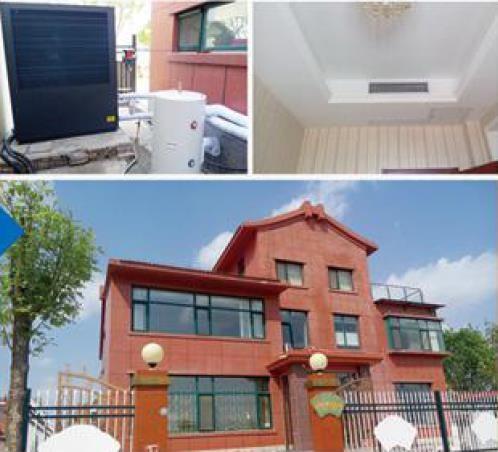

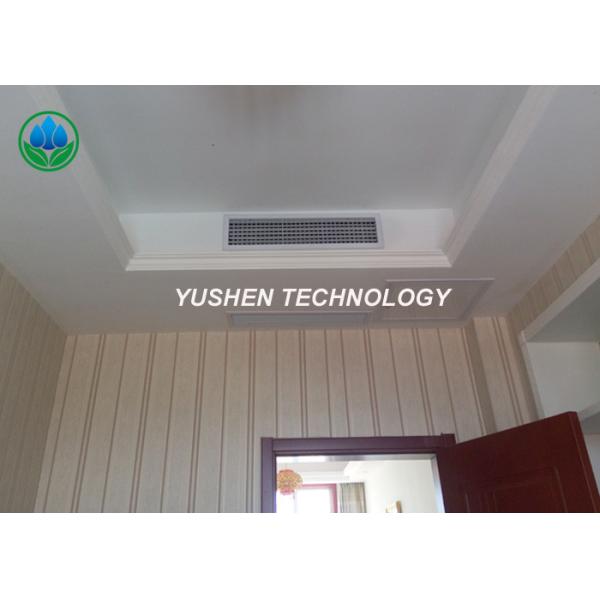

Project picture

Villa Heat Pump Heating And Cooling System , Underfloor Heating Pump
