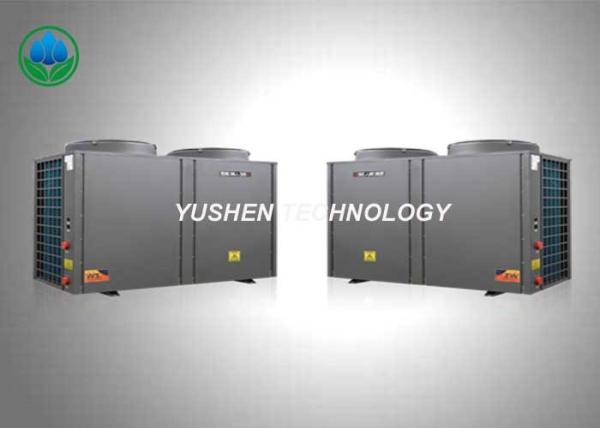

Practicality Heat Pump Ac Unit Compact Structure Anti Corrossion Casing
Practicality Heat Pump Ac Unit Compact Structure Anti Corrossion Casing
Specifications
Brand Name :
Yushen
Model Number :
SLNB-035Y
Certification :
CCC, ISO, CQC
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
10 sets/day
Delivery Time :
1-2 weeks
Packaging Details :
Reinforced Carton box with wooden tray
Key word :
radiator Air Source Heat Pump
Compressor capacity :
12.5HP
Function :
Heating and cooling
Air blow type :
Side
working conditions :
-25C ~+45C
Compressor quantity :
1
Description

Heating AC Equipment Air Source Heat Pump Compact Structure Anti-Corrossion Casing

Quick Details

1. -25C heating with high COP, no heating decay and fast defrosting in bad weather

2.Multi-function.Ultra-low temperature air source heat pumps have the functions of cooling in summer and heating in winter. In places with good quality, it could make hot water for daily use. The hot water temperature could be 50C,which could meet the requirement of bath, washing etc.Air source heat pumps could meet the heavy load in bad weather.It could connected with fan coils,underfloor coil and radiators.

3.Modular design and compact structure.Every system could work independently,any circle fauls cannot affect the others.It dosn't need cooling tower or water pump.It could save the engineering cost. The unit could be placed on roof, balcony or floor.It dosn't need special machine room.

4.Imported compressor with excellent performance and reliable.International famous brand Copeland compressor,scroll type,well-designed high efficiency heat exchanger,and coponents with high quality,make a reliable unit. The control is throught micro-computer.

Model data

Model SLNB-035Ycode name.pdf
Compressor capacity 12.5HP
Function Heating and Cooling
Electricity 380V-3N-50Hz
Working conditions ℃ -25~+45
Data Heata Nominal capacity KW 22.3
Input power KW 9.4
COP / 2.35
Heating IPLV(H) 2.7
Coolb Nominal capacity KW 28
Input power KW 10.4
COP / 2.7
Cooling IPLV(C) 2.7
A7W35c KW/COP 35.0/4.1
A2W35 KW/COP 28.5/3.60
A-7W35 KW/COP 23.5/2.9
A-15W55 KW/COP 20.2 /1.94
A-20W45 KW/COP 18.7/2.02
Max. running currency A 27
Compressor quantity set 1
Refrigerant/charging quantity kg / R22/9
Air blow type / Side
Water pipe diameter mm 32
Rating flow m³/h 5.9
Water side pressure loss kPa ≤45
Noise level dB(A) 62
Overall dimensions(L×W×H) mm 1490×900×1900
Weight kg 350

a: Nominal heating conditions: ambient dry bulb temperature-12℃, wet bulb temperature-14℃, outlet water temperature 41℃, water flow 0.172 * nominal heating capacity

b:Nominal refrigeration conditions: ambient dry bulb temperature 35℃, outlet water temperature 7℃, water flow 0.172 * nominal cooling capacity

c:A7W35 working condition: inlet air temperature 7℃, outlet water temperature 35℃

Products Advantages

  • Suitable for environmental temperature:-25℃ to +45 ℃ /-13℉ to 113 ℉
  • 35% more powerful than other products, long heating time and less defrosting time
  • Quality Components such as Copeland compressor, Danfoss valves
  • Pay attention to details such as every stainless-steel screw has cushion to prevent from water corrosion
  • Clean and clear wiring and lining
  • 100% finished products testing

Applications

Air conditioning of Restaurant, hotels,villa,Building office,shopping mall

Delivery and Packing

Strong and safe packaging for each product so that they will not be any damaged,keeping good the unit performance to users.
