Village Houses Air Source Heat Pump Underfloor Heating CCC Standard
Village Houses Air Source Heat Pump Underfloor Heating CCC Standard
Specifications
Brand Name :
Yushen
Model Number :
SLNB-035Y
Certification :
CCC, ISO, CQC
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
10 sets/day
Delivery Time :
1-2weeks
Packaging Details :
Reinforced Carton box with wooden tray
Key word :
Home Air Source Heat Pump
Compressor capacity :
12.5HP
Service area :
900M2
Function :
heating
quantity :
2 sets
Weight :
350Kg per set
Description

Village Houses Underfloor heating Equipment Air Source Heat Pump System

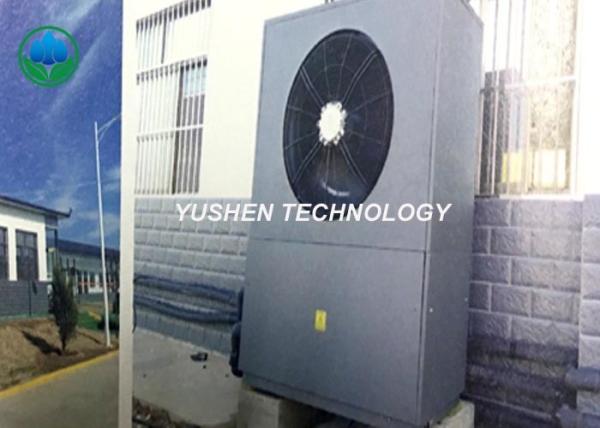

Brief Introduction of project

The heating area of the project is 900 square meters, and the house has no insulation layer and single-layer glass window.
The end is a floor heating coil, and the buildings are arranged symmetrically, each building is 450 square meters. The air source heat pump is used for heating, and the indoor temperature is maintained above 18 degrees throughout the heating season.

Air Source Heat Pump for house

  • Product with both heating and cooling functions are available
  • The air-source heat pump is 40% energy-saving than that of AC in heating
  • It is water circulation in the enders, safe and comfortable
  • Hot water could be used for bath too
  • High automation, easy operation
  • It could be connected with different enders, e.g. fan coil,radiator,floor heating , convenient and high-efficient

Model data/ Parameter

Model SLNB-035Ycode name.pdf
Compressor capacity 12.5HP
Function Heating and Cooling
Electricity 380V-3N-50Hz
Working conditions ℃ -25~+45
Data Heata Nominal capacity KW 22.3
Input power KW 9.4
COP / 2.35
Heating IPLV(H) 2.7
Coolb Nominal capacity KW 28
Input power KW 10.4
COP / 2.7
Cooling IPLV(C) 2.7
A7W35c KW/COP 35.0/4.1
A2W35 KW/COP 28.5/3.60
A-7W35 KW/COP 23.5/2.9
A-15W55 KW/COP 20.2 /1.94
A-20W45 KW/COP 18.7/2.02
Max. running currency A 27
Compressor quantity set 1
Refrigerant/charging quantity kg / R22/9
Air blow type / Side
Water pipe diameter mm 32
Rating flow m³/h 5.9
Water side pressure loss kPa ≤45
Noise level dB(A) 62
Overall dimensions(L×W×H) mm 1490×900×1900
Weight kg 350

a: Nominal heating conditions: ambient dry bulb temperature-12℃, wet bulb temperature-14℃, outlet water temperature 41℃, water flow 0.172 * nominal

b:Nominal refrigeration conditions: ambient dry bulb temperature 35℃, outlet water temperature 7℃, water flow 0.172 * nominal cooling capacity

c:A7W35 working condition: inlet air temperature 7℃, outlet water temperature 35℃

Yushen Products Advantages

  • Larger application range , yushen heat pump could be used from environmental temperature:-25℃ to +45 ℃ /or from -13℉ to 113 ℉
  • 100% finished products testing,quality Components such as Copeland compressor, Danfoss valves
  • 35% more powerful than other products,yushen air-source heat pump has longer heating time and shorter defrosting time
  • High COP, No capacity decay even under low environmental temperature
