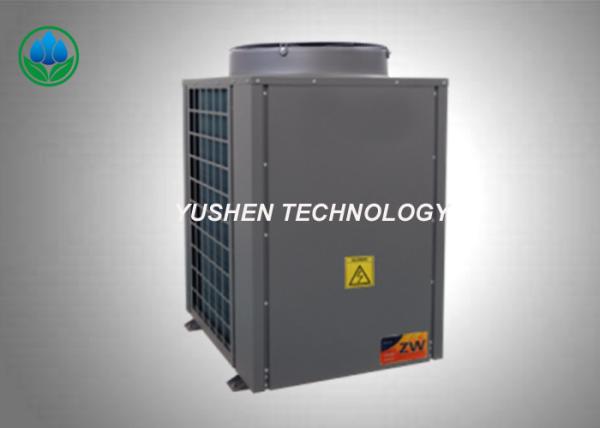

Air To Water Source 14kw Heat Pump 5 HP For Commercial Hot Water Supply
Air To Water Source 14kw Heat Pump 5 HP For Commercial Hot Water Supply
Specifications
Brand Name :
Yushen
Model Number :
SDWA-014Y
Certification :
CCC, ISO, CQC
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
10 sets/day
Delivery Time :
1-2weeks
Packaging Details :
Reinforced Carton box with wooden tray
Key word :
Air to water
Compressor capacity :
5HP
overall size :
730mm*700mm*1020mm
Water temperature :
9-65C
Compressor brand :
Copeland
Refrigerant :
R410A/R22/R407C/R134A/ R410A
Description

14Kw Air To Water Source Heat Pump For Household and Commercial Hot Water Supply

Quick details

1. Compared to electricl boilder, Air source water heater is 65% energy saving
2. It is environmental-friendly, no waste gas emmission, refriegrant is not destroy the ozone layer;
3. Water temperature could be up to 65C
4. Five-fold antifreeze protection, no worries in winter;
5. Professional hot water system integration program, system operation is more energy efficient.

Model Parameter

Model SDWA-014Ycode name.pdf
Compressor capacity 5HP
Function Heat
Electricity 220V 1N-50Hz
Working conditions ℃ -25~+43
Nominal heating capacity KW 14
COP KW/KW 4.12
Nominal input power KW 3.9
Max. running currency A 32
Highest water temperature ℃ 60
Compressor quantity Set 1
Refrigerant/charging quantity kg / R22/3.7
Air blow type / Top
Water pipe diameter / 1''
Rating flow m³/h 2.8
Water side pressure loss kPa ≤45
Noise level dB(A) 62
Overall dimensions(L×W×H) mm 730×700×1020
Weight kg 180

Remarks:

Nominal heating conditions:ambient dry bulb temperature 7℃, web bulb temperature 6℃, water inlet temperature 9℃,water outlet temperature 55℃

Yushen Products Advantages

  • OEM service is available
  • fast delivery time , standard models productivity is 10 sets per day
  • Wider application range ,even environmental temperature is low to -25℃ or high to +45 ℃(from -13℉ to 113 ℉)
  • Automatic testing line,100% finished products testing
  • Reliable performance,yushen air-source heat pump has longer heating time and shorter defrosting time
  • 35% more powerful than other products
  • High COP, no capacity decay even under low environmental temperature

Comparasion

　 Heat pump Pellet fire Flued gas heater Protable Gas heater Electric Heater
Energy effciency: Ability to provide 3-4kW of heat energy for every 1kW used √ 　 　 　 　
Lowest runing cost:The cheapest kW/h heating cost available √ 　 　 　 　
Precise comform control:Space heating and temperature control for increased comfort √ 　 　 　 　
Convient:Heating at a touch of a button, no manual tasks. √ √ √ √ √
Improve air quolity:Filtration and deodorisation systems √ 　 　 　 　
Unobtrusive Heating:Whisper quiet and can be placed discreetly on a wall. √ 　 √ 　 　
Humidity control:Doesn’t add moisture to your home, provides good airflow to prevent moisture build-up. √ 　 　 　 　
Safety:No hot surfaces, safe for children and pets. √ 　 　 　 　
Cooiling in summer:Keeping the home nice and cool on those long hot summer days. √ 　 　 　 　
