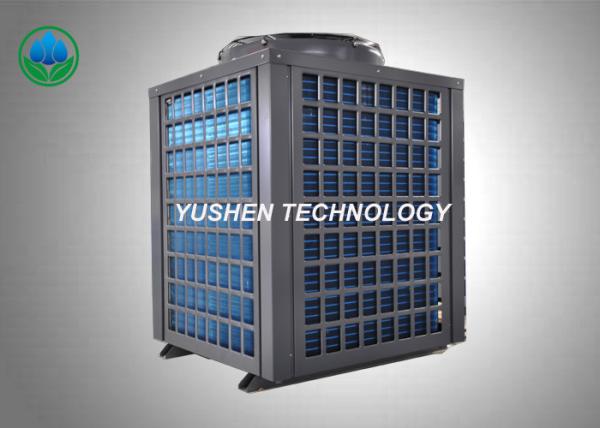

6HP Air to Water Air Source Heat Pump Monoblock Water Heater for Bathroom
6HP Air to Water Air Source Heat Pump Monoblock Water Heater for Bathroom
Specifications
Brand Name :
Yushen
Model Number :
SDWA-017Y
Certification :
CCC, ISO, CQC
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
10 sets/day
Delivery Time :
1-2weeks
Packaging Details :
Reinforced Carton box with wooden tray
Key word :
Air to Water Air Source Heat Pump
Compressor capacity :
6HP
Function :
heating water
Refrigerant :
R410A/R22/R407C/R134A/ R410A
Compressor type :
Scroll compressor
Compressor brand :
copeland
Description

6HP Air to Water Air Source Heat Pump Monoblock Water Heater For Bathroom

Brief Introduction

  • Air to water air source heat pump is 40% energy-saving than that of electric AC unit in heating.
  • Air to water Air-source heat pumpproduce hot water circulation in the system, safe and comfortable
  • high automation, easy operation

Model Parameter

Model SDWA-017Ycode name.pdf
Compressor capacity 6HP
Function Heat
Electricity 380V 3N-50Hz
Working conditions ℃ -25~+43
Nominal heating capacity KW 17
COP KW/KW 4.1
Nominal input power KW 4.14
Max. running currency A 11.5
Highest water temperature ℃ 60
Compressor quantity Set 1
Refrigerant/charging quantity kg / R22/4.8
Air blow type / Top
Water pipe diameter / 1 1/2''
Rating flow m³/h 3
Water side pressure loss kPa ≤45
Noise level dB(A) 62
Overall dimensions(L×W×H) mm 860×820×1080
Weight kg 197

Nominal heating conditions:ambient dry bulb temperature 7℃, web bulb temperature 6℃, water inlet temperature 9℃,water outlet temperature 55℃

Application

Home/house heating, bathroom, public bathroom, swimming pool, factory production line, domitory etc.

Yushen Products Advantages

  • Suitable for environmental temperature:-25℃ to +45 ℃ /-13℉ to 113 ℉
  • 35% more powerful than other products, long heating time and less defrosting time
  • No capacity decay under low temperature, keep high COP
  • Quality Components such as Copeland compressor, Danfoss valves
  • Pay attention to details such as every stainless-steel screw has cushion to prevent from water corrosion
  • Clean and clear wiring and lining
  • 100% finished products testing

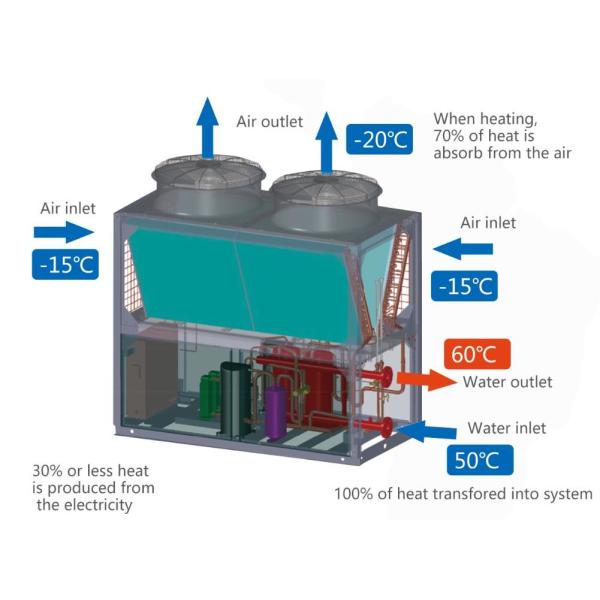

How air source heat pump works

6HP Air to Water Air Source Heat Pump Monoblock Water Heater for Bathroom
