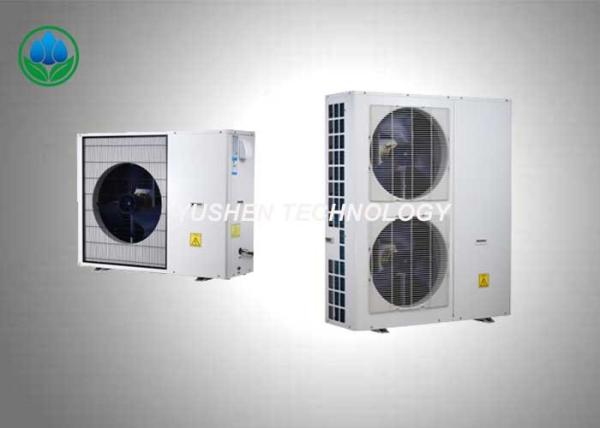

Household High Temperature Air Source Heat Pumps Side Air Blow 70 Kg
Household High Temperature Air Source Heat Pumps Side Air Blow 70 Kg
Specifications
Brand Name :
Yushen
Model Number :
SLNA-007UVP /009UP
Certification :
CCC, ISO, CQC
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
10 sets/day
Delivery Time :
1-2 weeks
Packaging Details :
Reinforced Carton box with wooden tray
Key word :
Home Air Source Heat Pump
Compressor brand :
Copeland
Compressor quantity :
1
Air blow :
side
Weight :
70Kg
Defrosting :
automatic
Description

Household Two Functions Heat Pump Unit 2P~ 3P High Temperature With Water Pump

Quick Details

1, heating + cooling two in one, dual function brings double enjoyment.
2, energy efficiency ratio up to 4.5, significantly reducing operating costs.
3. Cooperate with international famous brands such as Gu Gulun to ensure the competitiveness of “core”.
4, suitable for families, villas, hotels, hotels, beauty salons and other occasions.

Model data

Model SLNA-007UM SLNA(B)-009U(P)
Compressor capacity 2HP 3HP
Function Heating and Cooling Heating and Cooling
Electricity 220V-1N-50Hz 220V-1N-50Hz
Working conditions ℃ -25~～+45 -25~～+45
Data Heata Nominal capacity KW 3.9 5.8
Input power KW 1.69 2.52
COP / 2.3 2.3
Heating IPLV(H) 2.53 2.53
Coolb Nominal capacity KW 4.4 6.5
Input power KW 1.69 2.6
COP / 2.6 2.5
Cooling IPLV(C) 2.7 2.7
A7W35c KW/COP 6.4/4.1 9.2/4.10
A2W35 KW/COP 5.8/3.6 8.0/3.6
A-7W35 KW/COP 4.3/2.7 5.9/2.7
A-15W55 KW/COP 3.4/1.9 5.0/1.90
A-20W45 KW/COP 2.9/1.94 4.5/1.95
Max. running currency A 13.2 18
Compressor quantity set 1 1
Refrigerant/charging quantity kg / R404A/2.2 R404A/2.2
Air blow type / Side Side
Water pipe diameter inch G1〞 G1〞
Rating flow m³/h 1.6 1.6
Water side pressure loss kPa ≤35 ≤35
Noise level dB(A) 59 59
Overall dimensions(L×W×H) mm 1087×435×901 1087×435×901
Weight kg 70 70

a: Nominal heating conditions: ambient dry bulb temperature-12℃, wet bulb temperature-14℃, outlet water temperature 41℃, water flow 0.172 * nominal heating capacity

b:Nominal refrigeration conditions: ambient dry bulb temperature 35℃, outlet water temperature 7℃, water flow 0.172 * nominal cooling capacity

c:A7W35 working condition: inlet air temperature 7℃, outlet water temperature 35℃

Products Advantages

  • Suitable for environmental temperature:-25℃ to +45 ℃ /-13℉ to 113 ℉
  • Large-area hydrophilic aluminum heat exchangers increase the heat production.The four-row tube V-shaped arrangement has high heat exchange efficiency and uniform wind speed distribution.It adopts 9.52*0.35 internal thread high-efficiency heat exchange copper tube and 3.1mm large-format hydrophilic aluminum fins with better hydrophobicity; it improves the operating efficiency during frosting and reduces the number of defrosting.

  • The optimized long flow path design and wide expansion of the expansion throttle ensure uniform distribution of refrigerant in low temperature environments. Ensure even frosting, complete defrosting, strong heating and efficient operation

  • 35% more powerful than other products, long heating time and less defrosting time
  • Quality Components such as Copeland compressor, Danfoss valves
  • Pay attention to details such as every stainless-steel screw has cushion to prevent from water corrosion
  • Multi-throttle channel design is accurate.

  • Multiple energy-saving devices in a single system, precise control of refrigerant flow, enabling the unit to maximize heat/cooling capacity and maximum energy efficiency in various working environments, reducing operating costs

  • 100% finished products testing

Learn more about air source heat pump

.Safety

There is a safety hazard of electric leakage in the electric water heater. The gas water heater has the problem of gas poisoning. Compared with the two water heaters, the air energy water heater passes through the medium heat exchange, avoiding the direct contact between the electric heating element and the water, thus solving the electric water heater. There are hidden dangers of leakage, and secondly, because the raw material is air, the possibility of gas explosion or gas poisoning in gas water heaters is also excluded, which makes people more comfortable and worry-free.
