Cold Climate Heat Pump Residential Central Air Conditioning Units 23.5 Kw Input Power
Cold Climate Heat Pump Residential Central Air Conditioning Units 23.5 Kw Input Power
Specifications
Brand Name :
Yushen
Model Number :
SDNA-090YB
Certification :
CCC, ISO, Energy Concervation Product
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
10 sets/day
Delivery Time :
1-2 weeks
Packaging Details :
Reinforced Carton box with wooden tray
Key word :
Comercial Air Source Heat Pump
input power :
23.5kw
Rated currency :
70A
Function :
heating
Noise :
62DBA
Refrigrant :
Freon R22
Description

Commercial Cold Climate ASHP for Cental Heating Station of Residential Block

Charaters

1.Working air temperature range:-25℃to 45℃.

2. Copeland Enhanced vapour injection (EVI) technology scroll compressor with high COP in cold area.

3. Max water outlet temperature: 60℃.

4. Working mode is changeable between heating and hot water by 3-way valve.

5. Linkage function of heat pump ON/OFF controlled by external controlling system.

6. Anti-freeze function.

Parametercode name.pdf

Model SDNA-090YB
Compressor capacity 30HP
Function Heat
Electricity 380V 3N-50Hz
Working conditions ℃ -25~+45
Data Heata Nominal capacity KW 56.2
Input power KW 23.4
COP / 2.4
Heating IPLV(H) 2.7
A7W35c KW/COP 90.0/4.2
A2W35 KW/COP 79.0/3.20
A-7W35 KW/COP 63.2/3.0
A-15W55 KW/COP 56.2/1.97
A-20W45 KW/COP 47.2/2.04
Max. running currency A 70
Compressor quantity set 4
Refrigerant/charging quantity kg / R22/5*4
Air blow type / Top
Water pipe diameter mm 50
Rating flow m³/h 12.6
Water side pressure loss kPa ≤45
Noise level dB(A) 62
Overall dimensions(L×W×H) mm 2100×1100×2080
Weight kg 830

Applications residential communities central heating station di...

  • It is suitable for the heating of office building, hotel and residential community.
  • A central heating station with inteligent control
  • The ender indoor could be AC fans, floor coil or radiators
  • In winter it provide water of 50℃ for heating to the ender to produce heat

Yushen Products Features

  • Yushen air source heat pump is 35% more powerful than other products, long heating time and less defrosting time
  • More than 20 items testing and 100% automatic line testing
  • No capacity decay under low temperature, keep high COP in winter
  • Quality Components such as Copeland compressor, Danfoss valves
  • Over 6 million heating area' project all over China
  • Jet Boost compressor, high efficient and environmental-friendly, even in -25C can work in high COP
  • Fan of heat exchanger is big diameter Jagged type, which increase the air flow tangent length when air going through fans, reduce noise; When the air volume is increased, the heat exchanger is more evenly.
  • Multi-throttle channel design is accurate.

  • Multiple energy-saving devices in a single system, precise control of refrigerant flow, enabling the unit to maximize heat/cooling capacity and maximum energy efficiency in various working environments, reducing operating costs

  • The water side shell and tube heat exchanger have high efficiency and reliability.

  • The industry's leading refrigerant distribution technology can effectively improve the uniformity of gas-liquid two-phase fluid distribution into heat transfer tubes, improve the utilization of heat exchange tubes, and achieve efficient heat transfer.

  • Large-area hydrophilic aluminum heat exchangers increase the heat production.

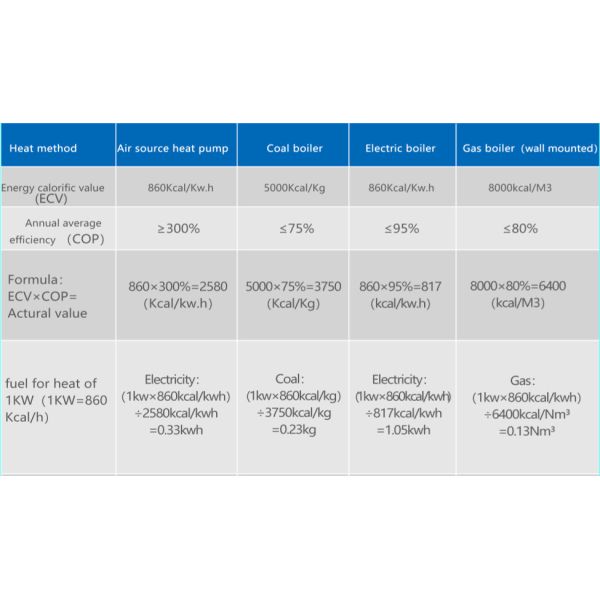

Air Source heat Pump VS other heating methods

​Cold Climate Heat Pump Residential Central Air Conditioning Units 23.5 Kw Input Power
