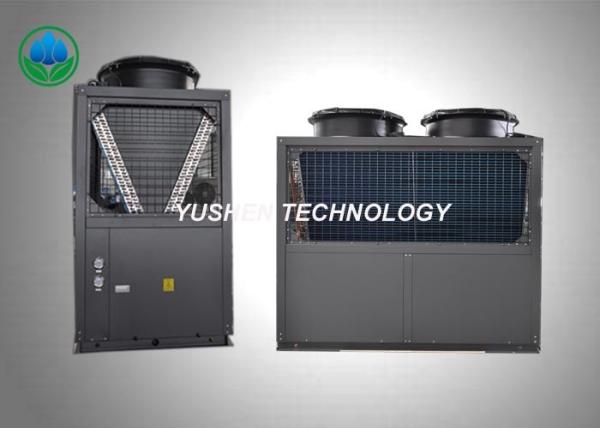

830 Kg Central Air Source Heat Pump 380 V 3N 50 Hz For Residentail Community
830 Kg Central Air Source Heat Pump 380 V 3N 50 Hz For Residentail Community
Specifications
Brand Name :
Yushen
Model Number :
SDNA-090YB
Certification :
CCC, ISO, Energy Concervation Product
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
10 sets/day
Delivery Time :
1-2 weeks
Packaging Details :
Reinforced Carton box with wooden tray
Key word :
Residential Community Air Source Heat Pump
Compressor brand :
Copeland
Compressor capacity :
30HP
Function :
Central heating
Overall size per set :
2100×1100×2080mm
Weight :
830Kg
Description

Residentail Community Central Heat Station Air Source Heat Pump

Air Source Heat Pump Parameter

Model SDNA-090YBcode name.pdf
Compressor capacity 30HP
Function Heat
Electricity 380V 3N-50Hz
Working conditions ℃ -25~+45
Data Heata Nominal capacity KW 56.2
Input power KW 23.4
COP / 2.4
Heating IPLV(H) 2.7
A7W35c KW/COP 90.0/4.2
A2W35 KW/COP 79.0/3.20
A-7W35 KW/COP 63.2/3.0
A-15W55 KW/COP 56.2/1.97
A-20W45 KW/COP 47.2/2.04
Max. running currency A 70
Compressor quantity set 4
Refrigerant/charging quantity kg / R22/5*4
Air blow type / Top
Water pipe diameter mm 50
Rating flow m³/h 12.6
Water side pressure loss kPa ≤45
Noise level dB(A) 62
Overall dimensions(L×W×H) mm 2100×1100×2080
Weight kg 830

Brief description

  • Yushen Air source heat pump is the best substitute for coal boiler, gas boiler, electricity unit type heater for residential community.
  • Air source heat pump is 40% energy-saving than air conditioner
  • Air source heat pump use less than 1/3 electricity that of electricity heating.
  • Air source heat pump has a central control screen which is highly automation and operation
  • It could be connected with different enders, e.g. fan coil, radiator, floor heating, convenient and high-efficient

Yushen Products Features

  • It could be used in lower environmental temperature:-25℃ to +45 ℃ /-13℉ to 113 ℉
  • Yushen heat pump is 35% more powerful than other products, long heating time and less defrosting time
  • 100% testing before delviery.
  • No capacity decay under low temperature, keep high COP
  • Quality Components such as Copeland compressor, Danfoss valves
  • Pay attention to details such as every stainless-steel screw has cushion to prevent from water corrosion
  • Clean and clear wiring and lining

Applications residential communities central heating station di...

  • It is suitable for the heating of office building, hotel and residential community. In winter it provide water of 50℃ for heating to the ender to produce heat.

Service

  • 1. OEM Manufacturing welcome: Product, Package...
    2. Sample order
    3. We will reply you for your inquiry in 24 hours.
    4. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback. If you have any questions about the problem, contact with us, we will offer
    the solve way for you.830 Kg Central Air Source Heat Pump 380 V 3N 50 Hz For Residentail Community
