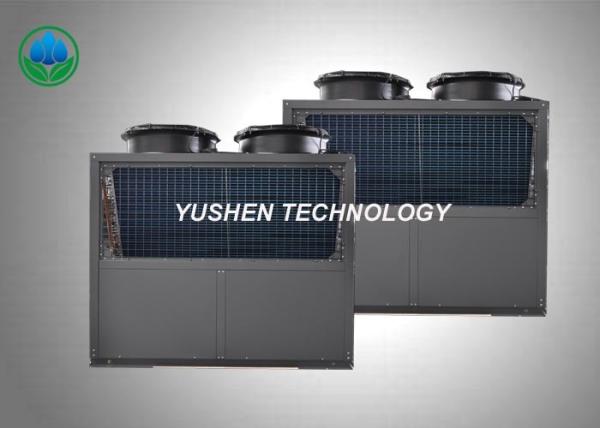

15 HP Portable Air Source Heat Pump , Office High Efficiency Air Source Heat Pump
15 HP Portable Air Source Heat Pump , Office High Efficiency Air Source Heat Pump
Specifications
Brand Name :
Yushen
Model Number :
SDLC-040Y
Certification :
CCC, ISO, CQC
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
10 sets/day
Delivery Time :
1-2weeks
Packaging Details :
Reinforced Carton box with wooden tray
Key word: :
Cooling Air Source heat pump
Compressor capacity :
15HP
Function :
Cooling
Compressor quantity :
2
COP :
3.11
Noise :
62DBA
Description

15HP Air Source Heat Pump Efficiency Commercial Cooling Unit for Office Residential Community

Yushen Cooling Heat Pump

  • Yushen Cooling equipment could work in conditions -25C to +45C
  • More 70% energy of Yushen air-source cooling equipment is from the air, less than 30% energy consumption is electricity
  • It is water circulation in the enders, suitable for different enders,e.g. fan coil,radiator,floor heating
  • With full protection functions including water flow, high/low pressure, phase order, over-current ect.
  • Strong casing, SS screws with plastic cushions, service life is over 20 years

Technical data

Model SDLC-040Ycode name.pdf
Compressor capacity 15HP
Function Cool
Electricity 380V 3N-50Hz
Working conditions ℃ -25~+45
Data Coola Nominal capacity KW 40
Input power KW 12.8
COP / 3.11
A35W0b KW/COP 30.3/2.73
A35W-5 KW/COP 25.7/2.38
A35W-10 KW/COP 21.4 /2.04
A35W-15 KW/COP 17.3/1.69
Max. running currency A 35
Compressor quantity Set 2
Refrigerant/charging quantity kg / R22/11*2
Air blow type / Top
Water pipe diameter mm 50
Rating flow m³/h 8.3
Water side pressure loss kPa ≤45
Noise level dB(A) 62
Overall dimensions(L×W×H) mm 1450×1100×2080
Weight kg 470

a:Nominal Cooling conditions: ambient dry bulb temperature35℃, , outlet water temperature 7℃, water flow 0.172 * nominal cooling capacity

b:A7W35 working condition: inlet air temperature 7℃, outlet water temperature 35℃

Applications

It suitable for the cooling for the following places' air conditioning or produce cool water for factory use

  • office building
  • swiming pool
  • villa
  • House
  • hotel
  • Residential community central heating
  • Market/shopping mall
