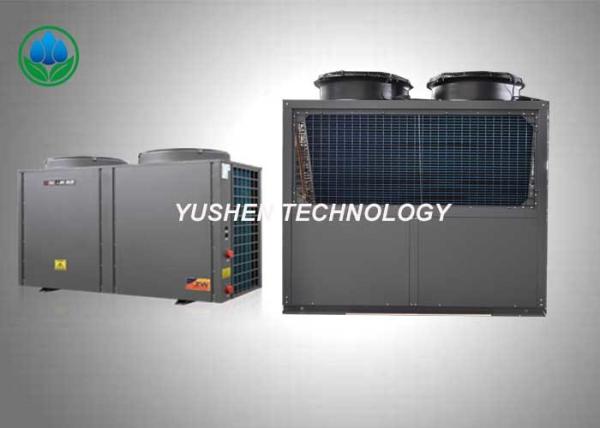

Energy Saving Hot Water Machine Air To Water Heat Pump 14kw/17kw/34Kw/75Kw For All Seasons
Energy Saving Hot Water Machine Air To Water Heat Pump 14kw/17kw/34Kw/75Kw For All Seasons
Specifications
Brand Name :
Yushen
Model Number :
SDWA-014U/017Y/034YB/075YB
Certification :
CCC, ISO, CQC
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
10 sets/day
Delivery Time :
1-2weeks
Packaging Details :
Reinforced Carton box with wooden tray
Key word :
hot water machine energy saving
Compressor capacity :
5HP/6HP/10Hp/25Hp
Water temperature :
9-55C
Compressor brand :
Copeland
Refrigerant :
R410A/R22/R407C/R134A/ R410A
MAx. outlet water temeprature :
60C
Description

Energy Saving Hot Water Machine Air To Water Heat Pump 14kw/17kw/34Kw/75Kw For All Seasons

Models options

Model SDWA-014U SDWA-017Y SDWA-034YB SDWA-075YB
Compressor capacity 5HP 6HP 10HP 25HP
Function Heat Heat Heat Heat
Electricity 220V 1N-50Hz 380V 3N-50Hz 380V 3N-50Hz 380V 3N-50Hz
Working conditions ℃ -25~+43 -25~+43 -25~+43 -25~+43
Nominal heating capacity KW 14 17 34 75
COP KW/KW 4.12 4.1 4 4
Nominal input power KW 3.9 4.14 8.25 20.5
Max. running currency A 32 11.5 23 60
Highest water temperature ℃ 60 60 60 60
Compressor quantity Set 1 1 2 2
Refrigerant/charging quantity kg / R22/3.7 R22/4.8 R22/3.7*2 R22/10*2
Air blow type / Top Top Top Top
Water pipe diameter / 1'' 1 1/2'' 1 1/2'' 50
Rating flow m³/h 2.8 3 6 12
Water side pressure loss kPa ≤45 ≤45 ≤45 ≤45
Noise level dB(A) 62 62 62 62
Overall dimensions(L×W×H) mm 730×700×1020 860×820×1080 1530×750×1370 2100×1100×2080
Weight kg 180 197 320 830

Above data are based on following tested conditions, you could contact us for select models:

Nominal heating conditions:ambient dry bulb temperature 7℃, web bulb temperature 6℃, water inlet temperature 9℃,water outlet temperature 55℃

Features of air source heat pump hot water machine

  • Energy saving. Compapared to whole electrical water heater , air source heat pump hot water machine is 40% energy-saving. Because more than 70% of energy is absorb from the air.
  • Wide application range: Current air source heat pumps products are with "jet booster" compressors, which enlarge its application temperature range, from -25C to +45C.
  • Environmentally friendly products, without any pollution, without any burning of discharge materials, will not cause damage to the human body, with good social benefits.

Why choose Yushen products?

  • OEM service is available
  • fast delivery time , standard models productivity is 10 sets per day
  • Automatic testing line,100% finished products testing
  • Reliable performance,yushen air-source heat pump has longer heating time and shorter defrosting time
  • 35% more powerful than other products
  • High COP, no capacity decay even under low environmental temperature

How energy saving ?

Equipment Air Source Heat Pump Electric boiler Gas boiler Oil boiler
Energy heating value 860Kcal/kwh 860Kcal/kwh 8000Kcal/M3 10300Kcal/L
Annual COP >=400% <=90% <=75% <=75%
Heating results 860*400%=3440Kcal/kwh 860*90%=774kcal/kwh 800*75%=6000kcal/M3 10300*75%=7725kcal/L
Making 1M3 hot water need 1000/3440=14.5Kwh 1000/774=64.6kwh 1000/6000=8.3kwh 1000/7725=6.47L
Unit price of energy USD 0.15/kwh USD 0.15/kwh USD1/m3 USD 1.1/L
Price 2.175 9.69 8.3 7.117

Yushen in exhibition

Energy Saving Hot Water Machine Air To Water Heat Pump 14kw/17kw/34Kw/75Kw For All Seasons
