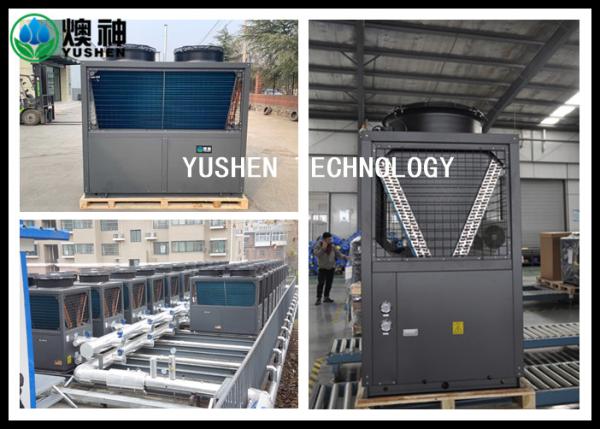

High Efficiency Air To Water Heat Pump For Hotel / Hair Salon / Spa Center
High Efficiency Air To Water Heat Pump For Hotel / Hair Salon / Spa Center
Specifications
Brand Name :
Yushen
Model Number :
SDWA-075YB
Certification :
CCC, ISO, CQC
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
10 sets/day
Delivery Time :
1-2weeks
Packaging Details :
Reinforced Carton box with wooden tray
Key word :
Air To Water Heat Pump
Compressor capacity :
75KW
Refrigerant :
R410A/R22/R407C/R134A/ R410A
Compressor quantity :
2
COP :
4
Weight :
830KG
Description

High Efficiency Air To Water Heat Pump For Hotel / Hair Salon / Spa Center

Air To Water Heat Pump Features

  1. Automatically remember all parameters if power off
  2. Under the condition of without control panel (or panel damaged), system can work automatically
  3. Over high /low pressure protection
  4. Benefit from a high volume of stored thermal energy
  5. High efficiency and energy-saving: Up to 40% savings as compared to heating by electricity or oil
  6. Intelligent digital controller for precise control
  7. Can work at night as well as on cloudy and rainy days
  8. Can be scaled to meet any requirement of hot water
  9. Easy to install: Just need to complete plumbing and electrical connections
  10. Occupies very little space: So can be connected near utility point
  11. Long life and corrosion resistant cabinet to withstand severe climates
  12. Safer than combustion: Heat pumps are safer than systems based on combustion
  13. Less maintenance than combustion heating systems
  14. Long life-span: Very long life span (20 years), thus they are extremely reliable and a steady source of heating and cooling

Air To Water Heat Pump Model data

Model SDWA-075YBcode name.pdf
Compressor capacity 25HP
Function Heat
Electricity 380V 3N-50Hz
Working conditions ℃ -25~+43
Nominal heating capacity KW 75
COP KW/KW 4
Nominal input power KW 20.5
Max. running currency A 60
Highest water temperature ℃ 60
Compressor quantity Set 2
Refrigerant/charging quantity kg / R22/10*2
Air blow type / Top
Water pipe diameter / 50
Rating flow m³/h 12
Water side pressure loss kPa ≤45
Noise level dB(A) 62
Overall dimensions(L×W×H) mm 2100×1100×2080
Weight kg 830

Nominal heating conditions:ambient dry bulb temperature 7℃

web bulb temperature 6℃, water inlet temperature 9℃,water outlet temperature 55℃

Yushen Product advantages

1. Jet boosting technology, the heat of -25 °C is not attenuated, and the cooling capacity of 43 °C is not attenuated.
2. Intelligent defrosting, frost defrosting, no frost heating, maximizing heating energy efficiency.
3. Environmentally friendly refrigerant, does not destroy the ozone layer;
4. Energy saving 35% compared with similar products

Comparasion to other water heater

the best oil-fueled furnaces can only approach a 1-to-1 ratio of energy consumed to heat energy provided.
