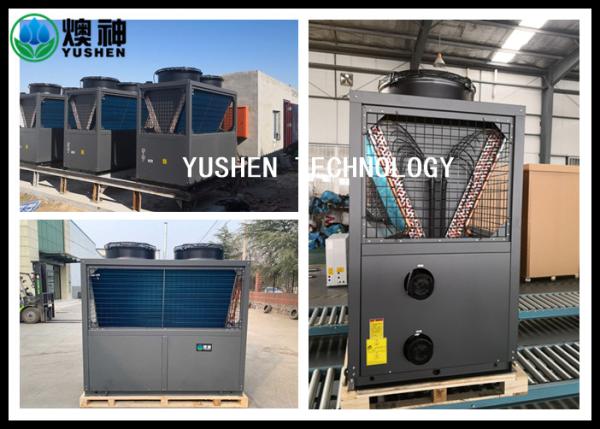

Low Noise Heat Pump Heating And Cooling System Stainless Steel Heat Exchanger
Low Noise Heat Pump Heating And Cooling System Stainless Steel Heat Exchanger
Specifications
Brand Name :
Yushen
Model Number :
SDNA-075Y
Certification :
CCC, ISO, CQC
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
10 sets/day
Delivery Time :
1-2weeks
Packaging Details :
Reinforced Carton box with wooden tray
Name :
Air Source Heat Pump Central Heating Syeterm
Project time :
2015
Sysem ender :
AC fans
Service area :
45000M2
Heat pump capacity :
25HP per set
Heat pump Quantity :
Low Noise
Description

Low noise Heat Pump Heating And Cooling System Stainless steel heat exchanger

Air Source Heat Pump Central Heating Syeterm Quick Details

  • American Copeland compressor
  • Stable running, safe & reliable ,easy installation
  • Low noise & vibration
  • Stainless steel brazing plate heat exchanger
  • All Weather Operation: stable operation without being influenced by weather.
    10. Refrigerant of R22,R407C,R410A are available.
  • High degree of automation, simple operation, unattended operation
  • Automatically defrosting
  • It can be combined with fan coil, radiator, floor heating, etc.

Air Source Heat Pump Central Heating Syeterm Applications

Villas

office buildings

hotels and restaurants

Apartments

Product parameters in this project

Model SDNA-075Ycode name.pdf
Compressor capacity 25HP
Function Heat
Electricity 380V 3N-50Hz
Working conditions ℃ -25~+45
Data Heata Nominal capacity KW 44.5
Input power KW 18.3
COP / 2.4
Heating IPLV(H) 2.7
A7W35c KW/COP 75.0/4.2
A2W35 KW/COP 62.5/3.20
A-7W35 KW/COP 52.5/3.0
A-15W55 KW/COP 45.5 /1.97
A-20W45 KW/COP 37.4/2.04
Max. running currency A 56
Compressor quantity set 2
Refrigerant/charging quantity kg / R22/10*2
Air blow type / Top
Water pipe diameter mm 50
Rating flow m³/h 12.6
Water side pressure loss kPa ≤45
Noise level dB(A) 62
Overall dimensions(L×W×H) mm 2100×1100×2080
Weight kg 730

a: Nominal heating conditions: ambient dry bulb temperature-12℃, wet bulb temperature-14℃, outlet water temperature 41℃, water flow 0.172 * nominal heating capacity

A7W35 working condition: inlet air temperature 7℃, outlet water temperature 35℃

Project Overview

The project is located in the bank building air-conditioning, heating area of 45,000 square meters, commercial 10 hours heating, officially put into use in 2015, stable, reliable and efficient operation, the average power consumption per unit area of each heating season is about 14 degrees, according to the general user The burned raw coal is calculated to save about 602 tons of raw coal, reduce SO2 by about 4.9 tons, reduce CO2 by about 1080 tons, and reduce ash and slag emissions by about 180 tons....

Project Sumary:

Project location E 117 N 35.5
Heating area 45000M2
Quantity of air-source heat pump 40 sets
Model SDNA-075Y(25HP)
System design ultra low temperature air source heat pump+AC fans
Building insulation None
Project in use time 2015
