Single Heating Cold Climate Air Source Heat Pump For Office Building
Single Heating Cold Climate Air Source Heat Pump For Office Building
Specifications
Brand Name :
Yushen
Model Number :
SDNA-090YB
Certification :
CCC, ISO, Energy Concervation Product
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
10 sets/day
Delivery Time :
1-2 weeks
Packaging Details :
Reinforced Carton box with wooden tray
Key word :
Cold Climate Air Source Heat Pump
input power :
23.5kw
Rated currency :
70A
Function :
Single heating
Noise :
62DBA
Application :
Office Building
Description

Single Heating Cold Climate Air Source Heat Pump For Office Building

Cold Climate Air Source Heat Pump Charaters

1. Working air temperature range:-25℃to 45℃.

2. Copeland Enhanced vapour injection (EVI) technology scroll compressor with high COP in cold area.

3. Max water outlet temperature: 60℃.

4. Working mode is changeable between heating and hot water by 3-way valve.

Cold Climate Air Source Heat Pump Parametercode name.pdf

Model SDNA-090YB Cold Climate Air Source Heat Pump
Compressor capacity 30HP
Function Heat
Electricity 380V 3N-50Hz
Working conditions ℃ -25~+45
Data Heata Nominal capacity KW 56.2
Input power KW 23.4
COP / 2.4
Heating IPLV(H) 2.7
A7W35c KW/COP 90.0/4.2
A2W35 KW/COP 79.0/3.20
A-7W35 KW/COP 63.2/3.0
A-15W55 KW/COP 56.2/1.97
A-20W45 KW/COP 47.2/2.04
Max. running currency A 70
Compressor quantity set 4
Refrigerant/charging quantity kg / R22/5*4
Air blow type / Top
Water pipe diameter mm 50
Rating flow m³/h 12.6
Water side pressure loss kPa ≤45

Cold Climate Air Source Heat Pump Applications residential communities central heating station di...

  • It is suitable for the heating of office building, hotel and residential community.
  • A central heating station with inteligent control
  • The ender indoor could be AC fans, floor coil or radiators
  • In winter it provide water of 50℃ for heating to the ender to produce heat

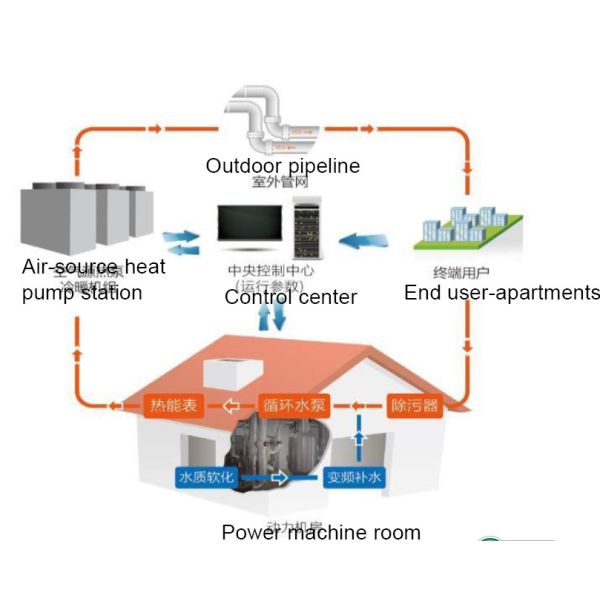

Distributed central heating system

1.Air source heat pumps group: in winter provide hot water of 35C~40C (underfloor heating coil), 40C ~45C (radiators), 45C~50C(fan coils); in summer provide cold water of 7C

Pumps group location: outdoor floor or building top

2. outdoor pipenet: pipes between heat pump group to indoor

3. End user: ender could be underfloor heating coil, radiators or fan coilds.

4. Power machine room: equiped with devices of electricity supply , cycle water pump, water soften.

5. Control center: equiped with centralized control system, controlling the running of machine, transfer all data to the heating company by GPRS, in time check the operation data, automatic adjust data.

Single Heating Cold Climate Air Source Heat Pump For Office Building

​
