Low Noise Indoor Air Source Heat Pump / Heat Pump Air Conditioning Unit
Low Noise Indoor Air Source Heat Pump / Heat Pump Air Conditioning Unit
Specifications
Brand Name :
Yushen
Model Number :
Indoor Air Source Heat Pump
Certification :
CCC, ISO, Energy Concervation Product
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
10 sets/day
Delivery Time :
1-2 weeks
Packaging Details :
Reinforced Carton box with wooden tray
Name :
Indoor Air Source Heat Pump
Feature :
Low Noise
Compressor capacity :
50HP
Function :
heating
Noise :
62DBA
heating area per set :
1500~2400 sqm
Description

Low Noise Indoor Air Source Heat Pump / Heat Pump Air Conditioning Unit

Indoor Air Source Heat Pump Features
1. Large-scale flat fins: extend the defrosting time interval, make the heat more durable; defrosting and draining quickly.
2, large static pressure box: the fins are more uniform over the wind, and the heat exchange efficiency is high.
3, jet increase: the lowest ring temperature -25 ° C, the highest water output 65 ° C.
4, compact design: the floor space is reduced by nearly 40%.
5, original noise reduction technology, the unit's overall noise is only 65dB (A), very suitable for central heating
Recommended area: Energy-saving building heating in the Beijing-Tianjin-Hebei region 2000 to 2400 m2, cooling 1400 to 1700 m2

Indoor Air Source Heat Pump Applications

  • It is suitable for the cental heating of office building, hotel and residential community.
  • In winter it provide water of 50℃ for heating to the ender to produce heat.

Indoor Air Source Heat Pump Advantages

  • It could work in extreme environment /Suitable for environmental temperature:-25℃ to +45 ℃ /-13℉ to 113 ℉
  • Yushen air source heat pump is 35% more powerful than other products, long heating time and less defrosting time
  • No capacity decay under low temperature, keep high COP in winter
  • Quality Components such as Copeland compressor, Danfoss valves
  • Pay attention to details such as every stainless-steel screw has cushion to prevent from water corrosion
  • Clean and clear wiring and lining
  • 100% finished products testing
  • Having only one unit which could both heat and cool to maintain means lower repair costs and less work in general.

​

Indoor Air Source Heat Pump Parameter

code name.pdf

Model SDNA-075Y SDNA-090YB
Compressor capacity 25HP 30HP
Function Heat Heat
Electricity 380V 3N-50Hz 380V 3N-50Hz
Working conditions ℃ -25~+45 -25~+45
Data Heata Nominal capacity KW 44.5 56.2
Input power KW 18.3 23.4
COP / 2.4 2.4
Heating IPLV(H) 2.7 2.7
A7W35c KW/COP 75.0/4.2 90.0/4.2
A2W35 KW/COP 62.5/3.20 79.0/3.20
A-7W35 KW/COP 52.5/3.0 63.2/3.0
A-15W55 KW/COP 45.5 /1.97 56.2/1.97
A-20W45 KW/COP 37.4/2.04 47.2/2.04
Max. running currency A 56 70
Compressor quantity set 2 4
Refrigerant/charging quantity kg / R22/10*2 R22/5*4
Air blow type / Top Top
Water pipe diameter mm 50 50
Rating flow m³/h 12.6 12.6
Water side pressure loss kPa ≤45 ≤45
Noise level dB(A) 62 62
Overall dimensions(L×W×H) mm 2100×1100×2080 2100×1100×2080
Weight kg 730 830

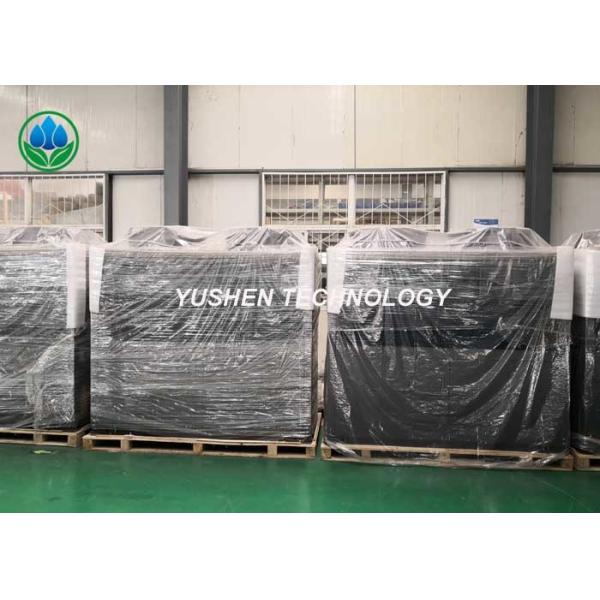

Packing
