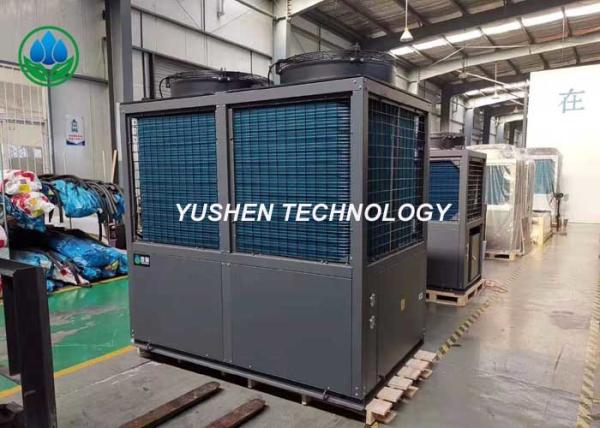

Standard Look Air Source Central Heating System , Cold Climate Heat Pump Unit
Standard Look Air Source Central Heating System , Cold Climate Heat Pump Unit
Specifications
Brand Name :
Yushen
Model Number :
SDNA-090YB
Certification :
CCC, ISO, Energy Concervation Product
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
10 sets/day
Delivery Time :
1-2 weeks
Packaging Details :
Reinforced Carton box with wooden tray
Name :
Air Source Central Heating System
Overall size :
Customized
Heating capacity :
30HP
Function :
heating
Noise :
62DBA
Weight :
830kg per set
Description

Standard Look Air Source Central Heating System , Cold Climate Heat Pump Unit

Air Source Central Heating System Features

American Copeland compressor

Stainless steel brazing plate heat exchanger

Super intelligence

Vertical fan discharge

Stable running, safe & reliable

Low noise & vibration

Automatic defrosting

Easy installation

Air Source Central Heating System Applications

Air Source Central Heating System could be connected in parallel and used for the central heating station of residential area, office building, plaza building etc.

Air Source Central Heating System Advantage

  • High-efficiency and energy-saving--the heat pump that uses the compressor as the main body to condense, evaporate, and throttle the energy required to cool and heat the air, because the obtained cold heat is much larger than the heat pump's power consumption.
  • Ultra-low temperature operation---This equipment is an ultra-low temperature air source heat pump, which runs stably for a long time in the environment of -25°-+45°.
  • Module combination, easy to install---Each module unit has independent frame structure, refrigeration system, power distribution system, control system and protection system. When one module unit fails, it does not affect the normal operation of other module units.
  • Quiet design and beautiful appearance---low noise large blade axial flow fan, reasonable and compact system piping design, avoiding large vibration and resonance, adopting V-shaped fin structure, high space utilization, uniform air supply on finned tube surface The unit shape is more smooth.

Air Source Central Heating System Parameter

Model SDNA-090YB Air Source Central Heating System code name.pdf
Compressor capacity 30HP
Function Heat
Electricity 380V 3N-50Hz
Working conditions ℃ -25~+45
Data Heata Nominal capacity KW 56.2
Input power KW 23.4
COP / 2.4
Heating IPLV(H) 2.7
A7W35c KW/COP 90.0/4.2
A2W35 KW/COP 79.0/3.20
A-7W35 KW/COP 63.2/3.0
A-15W55 KW/COP 56.2/1.97
A-20W45 KW/COP 47.2/2.04
Max. running currency A 70
Compressor quantity set 4
Refrigerant/charging quantity kg / R22/5*4
Air blow type / Top
Water pipe diameter mm 50
Rating flow m³/h 12.6
Water side pressure loss kPa ≤45
Noise level dB(A) 62
Overall dimensions(L×W×H) mm 2100×1100×2080
Weight kg 830

Yushen ASHPs

  • It could work in extreme environment /Suitable for environmental temperature:-25℃ to +45 ℃ /-13℉ to 113 ℉
  • Yushen air source heat pump is 35% more powerful than other products, long heating time and less defrosting time
  • No capacity decay under low temperature, keep high COP in winter
  • Quality Components such as Copeland compressor, Danfoss valves
  • Pay attention to details such as every stainless-steel screw has cushion to prevent from water corrosion
  • Clean and clear wiring and lining
  • 100% finished products testing
