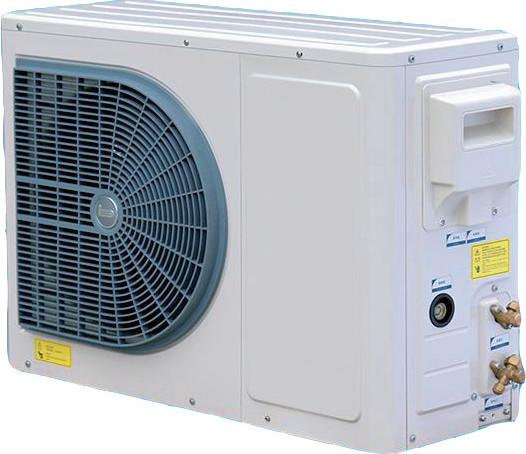

Intelligent Split Of Air-cooled CM-DAM020QYT Medium Temp Condensing Unit Coldroom Refrigeration Unit
Intelligent Split Of Air-cooled CM-DAM020QYT Medium Temp Condensing Unit Coldroom Refrigeration Unit
Specifications
Brand Name :
COLDMACH
Model Number :
CM-DAM020QYT
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
500pcs per weeks
Delivery Time :
4-6 weeks
Packaging Details :
wooden case
Type :
Air Cooled Condensing Unit
Temp Range :
Medium-High Temp
Cooling :
Air-Cooled
Application :
Chiller and freezer cold room
Power :
220V/50Hz,380V/50Hz/60Hz
Condition :
Brand new
Function :
Refrigeration
Name :
Coldroom Condensing Unit
Description

Intelligent Split Of Air-cooled CM-DAM020QYT Medium Temp Condensing Unit Coldroom Refrigeration Unit

Coidmach Intelligent Split Of Air Cooled Condensing Unit​​

Coldmach casing condensing unit based on traditionalunits, implanted modern automatic control technology, complicatedcontrol system with frozen within the unit, high efficiency and energy saving, installation and maintenance is veryronvenient, these units are specially designed for cold rooms , which can be widely used in food cold storage and industryenvironmental laboratory, electronics manufacturing inspection industry, chemical industry etc, which have specialrequirements for temperature, is another key product for Coldmach to keep leading in refrigeration industry.

Coidmach Intelligent Split Of Air Cooled Condensing Unit​​ Product Features

1.Compact configuration,high temperature electrostatic coating treatment,durable long life time.
2.Electronic expansion valve control,cooling fast,high efficiency.
3.Household air-conditioning installation,it is not need the senior technician.
4.Full intelligent cintrol system,boot self-diagnosis,free of debugging,Optional remote monitoring maintenance module.
5.Automatic recommendations for maintenance and fault diagnosis(show the cause of the problem with troubishooting tips
and advice,simplify maintenance job.
6.Achieve the maximum protection of the unit and compressor,ensure the stability of long-term operation of compressor.
7.Complete configuration,no need other valve parts,control cabinet
Technical Specification
Model:CM-DAM020QYT
Power Supply 380V/3N/50Hz
Condensing Unit Cold Room Temperature°C 10 1817
-18 2105
-20 2597
0 3826
8 4890
Norminal Power(W) Power 1692
Compressor Type Hermetic Scroll
Fan Motor OTY 1
Power(W) 60
Pipe Connection(in) Gas Line 1/2”
Liquid Line 3/8”

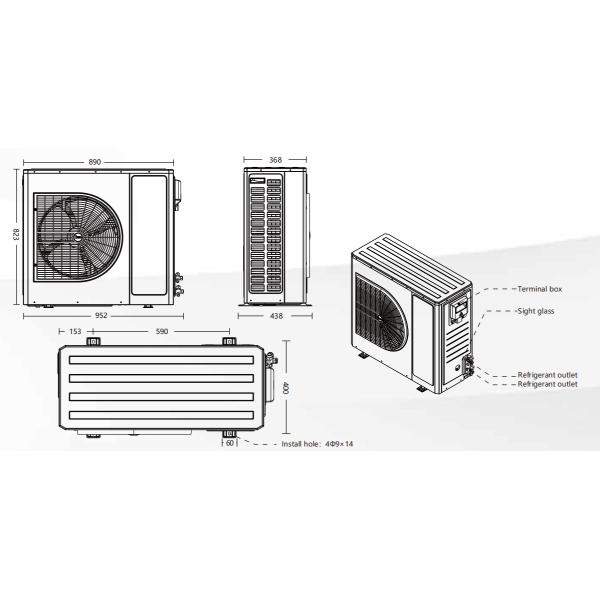

Dimensions(mm) 952×438×823
Weight(kg 80
