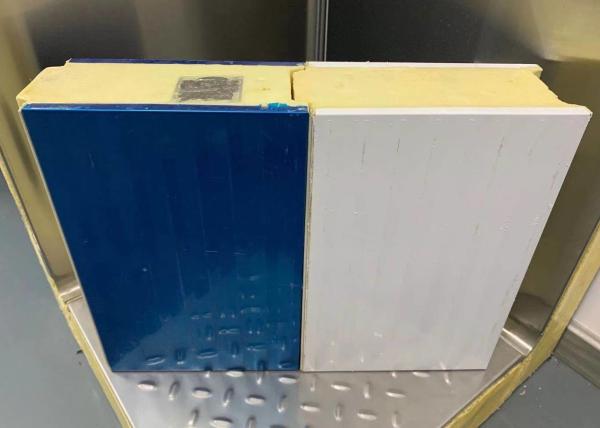

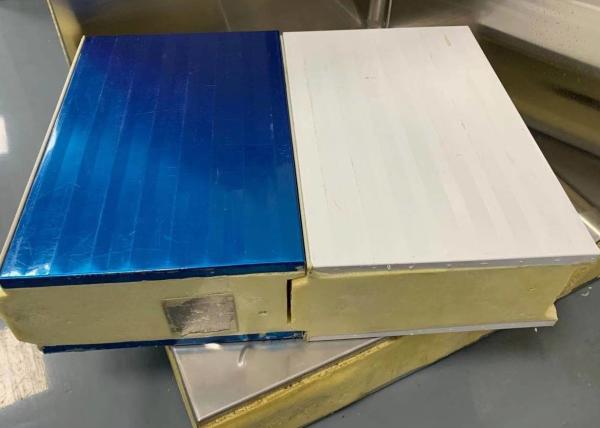

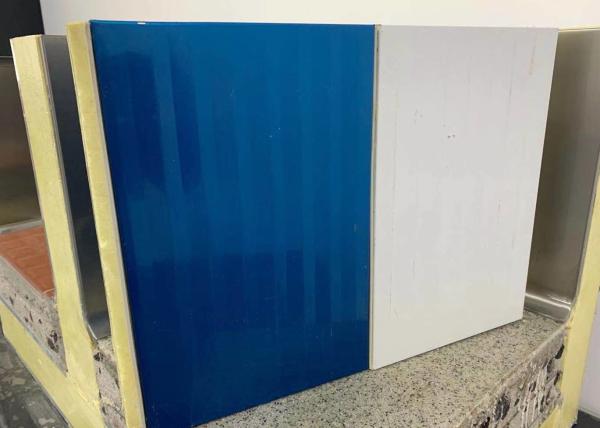

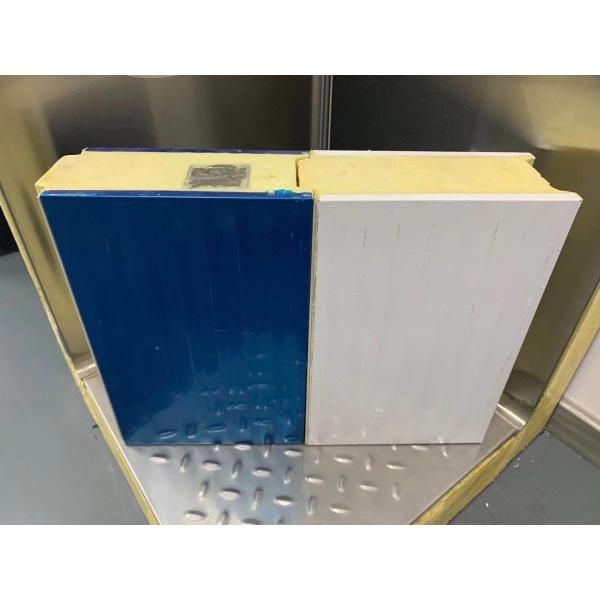

2.0mm Steel Polyurethane Board 42KG/M3 Cold Storage Insulated Panels
2.0mm Steel Polyurethane Board 42KG/M3 Cold Storage Insulated Panels
2.0mm Steel Polyurethane Board 42KG/M3 Cold Storage Insulated Panels
2.0mm Steel Polyurethane Board 42KG/M3 Cold Storage Insulated Panels
2.0mm Steel Polyurethane Board 42KG/M3 Cold Storage Insulated Panels
2.0mm Steel Polyurethane Board 42KG/M3 Cold Storage Insulated Panels
2.0mm Steel Polyurethane Board 42KG/M3 Cold Storage Insulated Panels
2.0mm Steel Polyurethane Board 42KG/M3 Cold Storage Insulated Panels
Specifications
Brand Name :
Oasis brand
Model Number :
50mm,75mm,100mm,150mm,200mm
Certification :
GB/T 19001-2006/ISO9001:2015
Place of Origin :
China
MOQ :
1 set
Price :
negotiate
Payment Terms :
T/T
Supply Ability :
100 set per week
Delivery Time :
5-6 weeks
Packaging Details :
carton
Material :
Polyurethane insulation
Steel thickness :
0.6mm,0.8mm,1.0mm,1.5mm,2.0mm
Panel thickness :
50mm,75mm,100mm,150mm,200mm
Dimension :
Customized
Function :
Insulation and refrigeration
Density :
42KG/M3
Thermal conductivity :
0.022-0.027 W/M. K
Surface Patterns :
Plain, corrugated, embossed, pressure ribs
Combustion properties :
Polyurethane Class B1-B3
Effective Coverage :
600 MM-1000 MM
Description

Polyurethane Cold Room Board, Coolroom Panel, Cold Storage Plate, Fabricated With Stainless Steel, Aluminum,Colorbond

Features:

1. Core material thickness: 50mm 75mm 100mm 120mm 150mm 200mm

2. Effective coverage: 60mm1000mm

3. Core material weight: Polyurethane: 40 ± 2kg/m

4. Thermal conductivity: 0.022-0.027W/m. K

5. Surface pattern: flat, corrugated, embossed, compression rib

6. Combustion performance: Polyurethane Class B1-B3

System composition:

Upper pressing steel plate, intermediate urethane material, lower pressing steel plate.

2.0mm Steel Polyurethane Board 42KG/M3 Cold Storage Insulated Panels

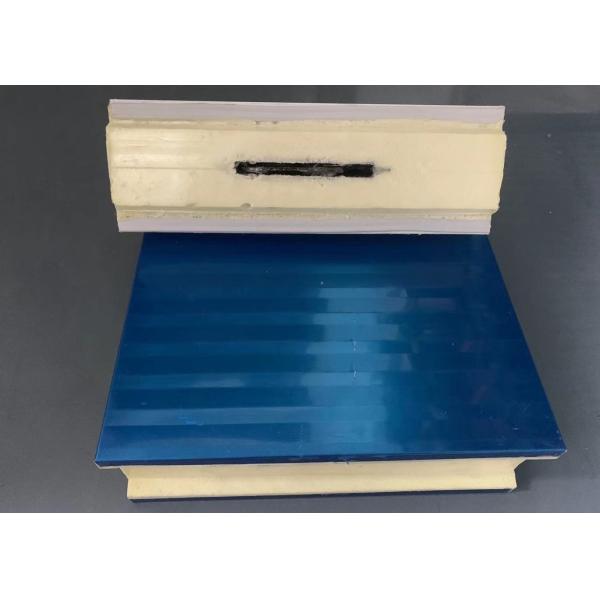

Connection method:

Each panel connected by camlock, with tongue and groove joint.

2.0mm Steel Polyurethane Board 42KG/M3 Cold Storage Insulated Panels

Surface pattern Materals for your referance

Metal steel face plate (exterior +interior) Metal steel plate thickness PU Thickness (mm)
50 75 100 120 150 200
Colorbond + Colorbond 0.4-0.8 √ √ √ √ √ √
Salinized steel + Salinized steel 0.4-1.0 √ √ √ √ √ √
Stainless steel +Stainless steel 0.5-2.0 √ √ √ √ √ √
Aluminum + Aluminum 0.4-2.0 √ √ √ √ √ √
Colorbond + Stainless steel Customized √ √ √ √ √ √
Colorbond + Salinized steel Customized √ √ √ √ √ √
Colorbond + Galvanized steel Customized √ √ √ √ √ √
Colorbond + Aluminum steel Customized √ √ √ √ √ √
Bare PU panel √ √ √ √ √ √
Customized Customized √ √ √ √ √ √

The structure of coldroom as below:

2.0mm Steel Polyurethane Board 42KG/M3 Cold Storage Insulated Panels

Should you have any question, feel free to contact. You are all welcome at any time.
