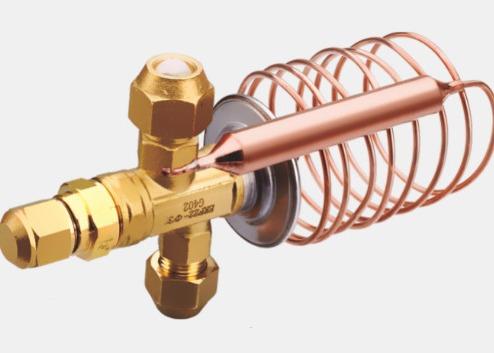

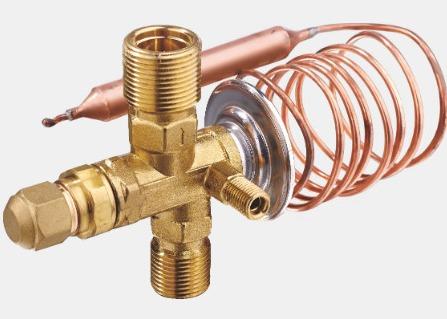

FRF22W FRF134W T Type Thermal Expansion Valve Air Conditioning
FRF22W FRF134W T Type Thermal Expansion Valve Air Conditioning
FRF22W FRF134W T Type Thermal Expansion Valve Air Conditioning
FRF22W FRF134W T Type Thermal Expansion Valve Air Conditioning
FRF22W FRF134W T Type Thermal Expansion Valve Air Conditioning
FRF22W FRF134W T Type Thermal Expansion Valve Air Conditioning
FRF22W FRF134W T Type Thermal Expansion Valve Air Conditioning
FRF22W FRF134W T Type Thermal Expansion Valve Air Conditioning
Specifications
Brand Name :
Original
Model Number :
TH THW
Certification :
CE/ROHS/FCC/SGS
Place of Origin :
China
MOQ :
20 pcs
Price :
negotiate
Payment Terms :
T/T
Supply Ability :
2000pcs per weeks
Delivery Time :
4-6 weeks
Packaging Details :
cartons
Packing :
Individual box
Material :
Copper
Condition :
Brand new
Application :
Coldroom Evaporators
Name :
Expansion Valves
Refrigerant :
R404a,R134a,R407,R22
Description

FRF22W,FRF134W Thermal Expansion Valve For Refrigeration / Air Conditioning System For Condensing Unit / Evaporator Used

Description:

1. T-type expansion value is a novel thermostatic expansion value with replaceable valve element

2. T-type expansion value is used for adjusting the supply quantity of liquid refrigerant in evaporator

3. T-type expansion value is particularly suitable for supplying liquid refrigerant in dry-type evaporator

4. T-type expansion value has autocontrol through regulating the-superheating degree of refrigerant.

Specifications:

Refrigerant Model Pressure Balance Thread(Connection Size) Nominal Refrigerating Capacity
Inlet inch Outside Balanced End T kW
R22 FRF22W-3-3-5 —— 3/8"ODF 5/8"ODF 1/4" 3 10
FRF22W-3-4-5 1/2"ODF 5/8"ODF
FRF22W-4-4-7 1/2"ODF 7/8"ODF 4 14
FRF22W-6-4-5 1/2"ODF 5/8"ODF 6 20
FRF22W-6-4-7 1/2"ODF 7/8"ODF
FRF22W-7.5-5-7 5/8"ODF 7/8"ODF 7.5 27
FRF22W-11-5-7 5/8"ODF 7/8"ODF 11 38
FRF22W-11-5-9 5/8"ODF 11/8"ODF
FRF22W-12-5-7 5/8"ODF 7/8"ODF 12 43
FRF22W-12-5-9 5/8"ODF 11/8"ODF
FRF22W-15-5-9 5/8"ODF 11/8"ODF 15 54
FRF22W-15-7-9 7/8"ODF 11/8"ODF
FRF22W-18-7-9 7/8"ODF 11/8"ODF 18 63
FRF22W-18-7-11 7/8"ODF 13/8"ODF
FRF22W-26-7-11 7/8"ODF 13/8"ODF 26 92
FRF22W-26-9-11 11/8"ODF 13/8"ODF
FRF22W-30-7-11 7/8"ODF 13/8"ODF 30 104
FRF22W-30-9-11 11/8"ODF 13/8"ODF
FRF22W-38-9-11 11/8"ODF 13/8"ODF 38 134
R134a FRF134W-3-3-5 3/8"ODF 5/8"ODF 3 10
FRF134W-3-4-5 1/2"ODF 5/8"ODF
FRF134W-4-4-7 1/2"ODF 7/8"ODF 4 14
FRF134W-6-4-5 1/2"ODF 5/8"ODF 6 20
FRF134W-6-4-7 1/2"ODF 7/8"ODF
FRF134W-7.5-5-7 5/8"ODF 7/8"ODF 7.5 27
FRF134W-11-5-7 5/8"ODF 7/8"ODF 11 38
FRF134W-11-5-9 5/8"ODF 11/8"ODF
FRF134W-12-5-7 5/8"ODF 7/8"ODF 12 43
FRF134W-12-5-9 5/8"ODF 11/8"ODF
FRF134W-15-5-9 5/8"ODF 11/8"ODF 15 54
FRF134W-15-7-9 7/8"ODF 11/8"ODF
FRF134W-18-7-9 7/8"ODF 11/8"ODF 18 63
FRF134W-18-7-11 7/8"ODF 13/8"ODF
FRF134W-26-7-11 7/8"ODF 13/8"ODF 26 92
FRF134W-26-9-11 11/8"ODF 13/8"ODF
FRF134W-30-7-11 7/8"ODF 13/8"ODF 30 104
FRF134W-30-9-11 11/8"ODF 13/8"ODF
FRF134W-38-9-11 11/8"ODF 13/8"ODF 38 134

·Working Condition of Nominal Refrigerating Capacity: Evaporation Temperature te = + 5℃; Condensation Temperature tK = +40℃; Degree of Superheat 2℃

Technical Parameters:

Installation and usage requirements

1) welded pipe expansion valve with the system pipe welding, we must pay attention to the following points;

1.1, use a damp cloth or a wet cotton bag to protect bodyon the body, To avoid high that temperature burn in the valve parts in welding. Please note that the 1.2 welding torch flame direction toward the body outward. 1.3 low temperature silverelectrode welding.

2) expansion valve maintenance should be designated professional staff.

FRF22W FRF134W T Type Thermal Expansion Valve Air Conditioning

Should you have any question, feel free to contact.
