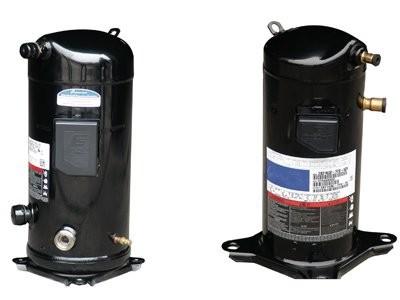

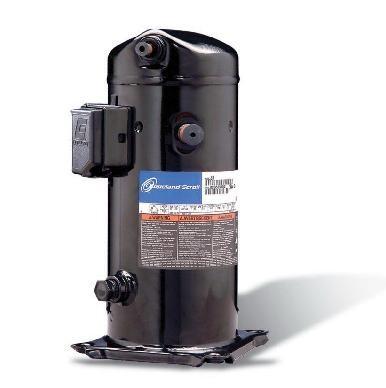

2.5HP Emerson Copeland Hermetic Compressor ZB19KQE-TFD 220V 50Hz
2.5HP Emerson Copeland Hermetic Compressor ZB19KQE-TFD 220V 50Hz
2.5HP Emerson Copeland Hermetic Compressor ZB19KQE-TFD 220V 50Hz
2.5HP Emerson Copeland Hermetic Compressor ZB19KQE-TFD 220V 50Hz
2.5HP Emerson Copeland Hermetic Compressor ZB19KQE-TFD 220V 50Hz
2.5HP Emerson Copeland Hermetic Compressor ZB19KQE-TFD 220V 50Hz
2.5HP Emerson Copeland Hermetic Compressor ZB19KQE-TFD 220V 50Hz
2.5HP Emerson Copeland Hermetic Compressor ZB19KQE-TFD 220V 50Hz
Specifications
Brand Name :
Emerson Copeland
Model Number :
ZB19KQE-TFD
Certification :
CE / CCC
Place of Origin :
China
MOQ :
16 sets
Price :
negotiate
Payment Terms :
T/T
Supply Ability :
500pcs per weeks
Delivery Time :
4-6 weeks
Packaging Details :
pallets
Type :
Hermetic scroll
Application :
Refrigeration
Temperature :
High and medium
Condition :
New
Power :
220/50Hz,380V/50Hz/60Hz
Refrigerant :
R404a, R22
Description

R404a ZB19KQE-TFD 2.5HP Emerson Copeland Hermetic Scroll Refrigeration Compressor For Air Conditioning

In the years since Emerson Climate Technologies Introduced ZB scroll compressors for medium-high temperature refrigeration and process cooling applications, it has been well received by our customers. ZB scroll compressors are revolutionizing this segment of the industry by the providing following benefits to our customers.
* Complete range between 2-15 HP
* Proven reliability
* Superior efficiency
* Low sound levels
* Availability for HFC and HCFC refrigerants
* All voltage offering
* Oil sight glass & Rotalock features
Specifications -R404a models
Product name
Model
 Power
Displacement
Cooling capacity
 Motor Power
Copeland scroll series ZB21KQ(E)-TFD-558 3HP 8.6m³/h 4.65kw~10.5kw 2.1kw
Copeland scroll series ZB29KQ(E)-TFD-558 4HP 11.4m³/h 6.25kw~14.1kw 2.9kw
Copeland scroll series ZB38KQ(E)-TFD-558 5HP 14.4m³/h 7.75kw~17.6kw 3.8kw
Copeland scroll series ZB45KQ(E)-TFD-558 6HP 17.2m³/h 9.45kw~21.1kw
4.5kw
Copeland scroll series ZB48KQ(E)-TFD-558 7HP 18.8m³/h 10.4kw~23.2kw 5.1kw
Copeland scroll series ZB58KQ(E)-TFD-550 8HP 22.1m³/h
11.85kw~28.05kw
 5.9kw
Copeland scroll series ZB76KQ(E)-TFD-550 10HP 28.8m³/h 16.4kw~36.85kw 7.5kw
Copeland scroll series ZB88KQ(E)-TFD-551 12HP 33.2m³/h 18.75kw~42kw 8.8kw
Copeland scroll series ZB95KQ(E)-TFD-551 13HP 36.4m³/h 19.55kw~45.2kw 9.6kw
Copeland scroll series ZB114KQ(E)-TFD-551 16HP 43.3m³/h 23.2kw~54.5kw 11.4KW

Specifications -R22 models

Model Horse Power Refrigerant Voltage Connection
ZB15KQ-PFJ-558 2 R22 220-240V / 1Ph/50hz or 265V/1Ph/60Hz Brazing
ZB15KQ-TFD-558 2 R22 380-420V/3Ph/ 50Hz or 460V/3Ph/60Hz Brazing
ZB19KQ-PFJ-558 3 R22 220-240V / 1Ph/50hz or 265V/1Ph/60Hz Brazing
ZB19KQ-TFD-558 3 R22 380-420V/3Ph/ 50Hz or 460V/3Ph/60Hz Brazing
ZB21KQ-TFD-558 3 R22 380-420V/3Ph/ 50Hz or 460V/3Ph/60Hz Brazing
ZB21KQ-PFJ-558 3 R22 220-240V / 1Ph/50hz or 265V/1Ph/60Hz Brazing
ZB26KQ-PFJ-558 4 R22 220-240V / 1Ph/50hz or 265V/1Ph/60Hz Brazing
ZB26KQ-TFD-558 4 R22 380-420V/3Ph/ 50Hz or 460V/3Ph/60Hz Brazing
ZB29KQ-TFD-558 4 R22 380-420V/3Ph/ 50Hz or 460V/3Ph/60Hz Brazing
ZB38KQ-TFD-558 5 R22 380-420V/3Ph/ 50Hz or 460V/3Ph/60Hz Brazing
ZB45KQ-TFD-558 6 R22 380-420V/3Ph/ 50Hz or 460V/3Ph/60Hz Brazing
ZB48KQ-TFD-558 7 R22 380-420V/3Ph/ 50Hz or 460V/3Ph/60Hz Brazing
ZB58KQ-TFD-551 8 R22 380-420V/3Ph/ 50Hz or 460V/3Ph/60Hz Rotalock
ZB66KQ-TFD-551 9 R22 380-420V/3Ph/ 50Hz or 460V/3Ph/60Hz Rotalock
ZB76KQ-TFD-551 10 R22 380-420V/3Ph/ 50Hz or 460V/3Ph/60Hz Rotalock
ZB88KQ-TFD-551 12 R22 380-420V/3Ph/ 50Hz or 460V/3Ph/60Hz Rotalock
ZB95KQ-TFD-551 13 R22 380-420V/3Ph/ 50Hz or 460V/3Ph/60Hz Rotalock
ZB114KQ-TFD-551 15 R22 380-420V/3Ph/ 50Hz or 460V/3Ph/60Hz Rotalock

Customers can be confident that ZB scroll compressors are coming from Emerson Climate Technologies experience of over 80 million scroll
compressors. ZB scroll compressors are manufactured in our scroll factories in Suzhou, China and Rayong, Thailand. To our customers, this gives
additional value by lower inventory and reduced shipping cost.
Description of Features
1. Dual Compliance :
Compliance means sealing between the orbiting and fixed scroll involutes. Dual compliance means the sealing is on both the axial and radial directions. This prevents refrigerant leak back across successive

scroll pressure pockets. Compliance design also allows the scroll involutes to separate in both the radial and axial directions. This allows debris or liquid refrigerant to pass through the scroll involutes without damaging the compressor. Benefits of Dual Compliance are:

* Increased efficiency
* Better liquid handling capability
* Better handling of debris
2. Scroll Wear In
The scroll involutes of Copeland scroll compressor wear in, rather than wear out. So unlike in other compressor technologies among similar categories, there is no constant degradation of performance with time due to wear out.
3. Lower sound, vibration and pulsation
The compression process in a scroll set is symmetrical and continuous. This inherently reduces the sound, vibration and pulsation. This eliminates the need for use of vibration absorbers and suction or discharge mufflers in most of the applications. In further, ZB scroll compressors are engineered to produce smooth sound spectrum
which improves the quality of sound.
4. Unloaded Start
The scroll sets separate at the instant of compressor shutdown. This allows the scroll set internal pressures to equalize on compressor stops. In addition to this, the scroll sets are not engaged at the instant of starting. Scroll sets engage only after few milliseconds of startup. This allows easier startup of ZB scroll compressors. Due to this design feature, typically a start assist kit is not required even on single phase compressors.
5. DU bearings
A space age bearing material comprising of porous bronze with PTFE-lead overlay. These bearings are used in ZB scroll compressors in the scroll drive and main bearings. DU bearings work with exceptionally low friction between the load bearing surfaces. In addition, DU bearings can operate safely for a short time with loss of lubrication. This situations could happen on compressor applications due to oil pump out during a flooded start or heavy oil dilution after a defrost cycle.
We have our own warehouse to stock all kinds of refrigeration products.

2.5HP Emerson Copeland Hermetic Compressor ZB19KQE-TFD 220V 50Hz

Should you have any question, feel free to contact.
