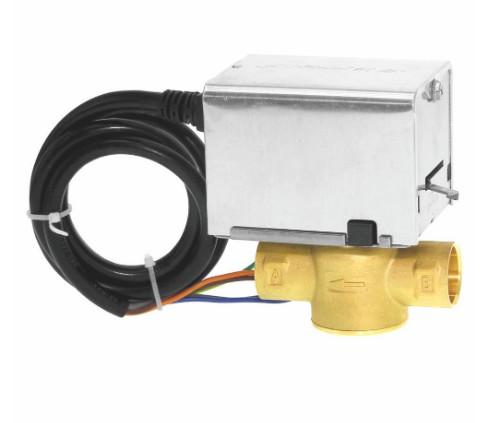

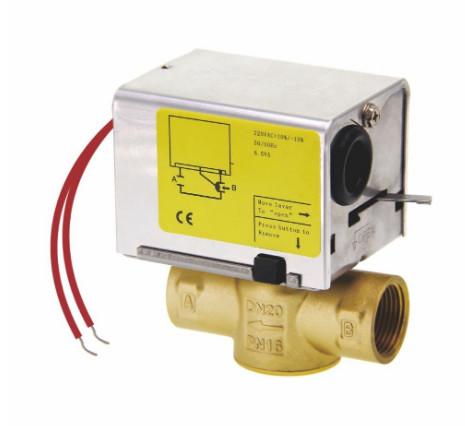

CE ROHS Forged Brass 2 Port Motorised Valve Nitrile Rubber Sealing
CE ROHS Forged Brass 2 Port Motorised Valve Nitrile Rubber Sealing
CE ROHS Forged Brass 2 Port Motorised Valve Nitrile Rubber Sealing
CE ROHS Forged Brass 2 Port Motorised Valve Nitrile Rubber Sealing
CE ROHS Forged Brass 2 Port Motorised Valve Nitrile Rubber Sealing
CE ROHS Forged Brass 2 Port Motorised Valve Nitrile Rubber Sealing
CE ROHS Forged Brass 2 Port Motorised Valve Nitrile Rubber Sealing
CE ROHS Forged Brass 2 Port Motorised Valve Nitrile Rubber Sealing
Specifications
Brand Name :
Original
Model Number :
DDF series
Certification :
CE/ROHS/FCC/SGS
Place of Origin :
China
MOQ :
20 pcs
Price :
negotiate
Payment Terms :
T/T
Supply Ability :
2000pcs per weeks
Delivery Time :
4-6 weeks
Packaging Details :
cartons
Stem material :
Stainless steel
Travel time :
11~15 seconds
Body material :
forged brass
Working medium :
Cold/hot water
Application :
Refrigeration / Air-conditioning
Name :
Motorised Valve
Fluid temperature :
2-94℃
Pressure :
1.6MPa
Description

Motorised Valve For Refrigeration / Air Conditioning System, Condensing Unit, Refrigeration Unit

Features

● Body material: forged brass
● Stem material: stainless steel06Cr19Ni10
● Sealing material: nitrile rubber (NBR)
● Working medium: cold/hot water
● Fluid temperature: 2-94℃
● Pressure: 1.6MPa
● Ambient temperature: 0-65 ℃ maximum relative humidity is no dew
● Travel time: 11~15 seconds
● Motor torque: >800gf.cm

Specifications

Order
No.		 Model No. Valve
Type		 DN Thread
Size		 Kvs Maximum
differential
pressure

kPa

 Dimensions
L W H
12060 DDF-G-215*DFQ-JA1-220 2-way 15 G1/2 1.5 250 52 14 44.5
12061 DDF-G-220*DFQ-JA1-220 2-way 20 G3/4 2.1 250 64 17.5 44.5
12063 DDF-G-225*DFQ-JA1-220 2-way 25 G1 3.3 100 71 20 44.5
12064 DDF-G-315*DFQ-JA1-220 3-way 15 G1/2 1 250 55 30 40
12065 DDF-G-320*DFQ-JA1-220 3-way 20 G3/4 2.3 250 64 35 45
12066 DDF-G-325*DFQ-JA1-220 3-way 25 G1 3.6 100 66 35 45
Note: The table is recommended model, you can refer to the following selection
description of the combination of models, please consult the sales staff for details.

CE ROHS Forged Brass 2 Port Motorised Valve Nitrile Rubber Sealing

Model Selection Description

CE ROHS Forged Brass 2 Port Motorised Valve Nitrile Rubber Sealing

Serial
number		 Code definition Optional range definition
① Motorized valve body series DDF
② Valve body code G=internal thread, high pressure motorized valve
③ Valve type 2=2-way valve,3=3-way valve
④ DN 15=DN15,20=DN20,25=DN25
⑤ Motorized valve actuator series DFQ
⑥ Actuator code JA1=2-wire,JA2=5-wire,JA3=2-wire aluminum alloy shell
⑦ Input power 220=220VAC,110=110VAC,24AC=24VAC

CE ROHS Forged Brass 2 Port Motorised Valve Nitrile Rubber Sealing
