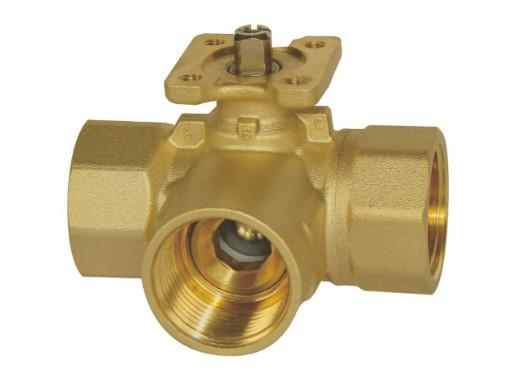

10x10 Stem 1.6MPa Motorised Ball Valve DDF Series Refrigeration Service Valves
10x10 Stem 1.6MPa Motorised Ball Valve DDF Series Refrigeration Service Valves
10x10 Stem 1.6MPa Motorised Ball Valve DDF Series Refrigeration Service Valves
10x10 Stem 1.6MPa Motorised Ball Valve DDF Series Refrigeration Service Valves
10x10 Stem 1.6MPa Motorised Ball Valve DDF Series Refrigeration Service Valves
10x10 Stem 1.6MPa Motorised Ball Valve DDF Series Refrigeration Service Valves
10x10 Stem 1.6MPa Motorised Ball Valve DDF Series Refrigeration Service Valves
10x10 Stem 1.6MPa Motorised Ball Valve DDF Series Refrigeration Service Valves
Specifications
Brand Name :
Original
Model Number :
DDF series
Certification :
CE/ROHS/FCC/SGS
Place of Origin :
China
MOQ :
20 pcs
Price :
negotiate
Payment Terms :
T/T
Supply Ability :
2000pcs per weeks
Delivery Time :
4-6 weeks
Packaging Details :
cartons
Actuator torque :
2N.m
Stem size :
10x10
Body material :
forged brass
Valve opening torque :
<1N.m
Application :
Refrigeration / Air-conditioning
Nominal pressure :
1.6MPa
Working medium :
Water
Fluid temperature :
5~95℃
Description

Motorised Ball Valve For Refrigeration / Air Conditioning System, Condensing Unit, Refrigeration Unit

DQF-A*DQQ-A -Product parameters

Main material: forging brass body, seal PTFE / HNBR

Actuator torque: 2N.m

Valve opening torque: <1N.m

Nominal pressure: 1.6MPa

Working medium: water

Fluid temperature 5~95℃

Stem size: 10x10

Specification

Order
No.		 Model Valve
type		 DN Thread
size		 Kvs Maximum
differential
pressure

kPa

 Demension
L H
15000 DQF-A-220*DQQ-AK3-220 2-way 20 G3/4 9.5 600 74 43.5
15002 DQF-A-220*DQQ-AK2-220 2-way 20 G3/4 9.5 600 74 43.5

Instruduction of selection

10x10 Stem 1.6MPa Motorised Ball Valve DDF Series Refrigeration Service Valves

NO. Code definition option and interpretation
① Motorized ball valve body series DQF
② Valve body series code A = Development sequence
③ Valve type 2 = two-way valve
④ Valve size 20=DN20
⑤ Motorized ball valve actuator series DQQ
⑥ Actuator series code A = Development sequence
⑦ Control mode K2 = two-wire, on/off K3 = three-wire, on/off
⑧ Input power 24AC=24VAC,220=220VAC

Product parameDQF-B Series- Product parameters

● Main material: forging brass body, seal PTFE / HNBR
● Valve opening torque:
DN15~DN25＜1N.m,DN32~50＜2N.m
● Nominal pressure: 1.6MPa ● Working medium: water
● Fluid temperature 5~95℃ ● Stem size: 10x10

Technical data

10x10 Stem 1.6MPa Motorised Ball Valve DDF Series Refrigeration Service Valves Model DQQ-B1 DQQ-B2 DQQ-B3 DQQ-E2-10
Rated stroke 90° 90° 90° 90°
Rated thrust 2N.m 10N.m 5N.m 10N.m
Photo 10x10 Stem 1.6MPa Motorised Ball Valve DDF Series Refrigeration Service Valves 10x10 Stem 1.6MPa Motorised Ball Valve DDF Series Refrigeration Service Valves 10x10 Stem 1.6MPa Motorised Ball Valve DDF Series Refrigeration Service Valves 10x10 Stem 1.6MPa Motorised Ball Valve DDF Series Refrigeration Service Valves
Order No. Model Valve Type DN thread
size		 Kvs demension Maximum
differential
pressure
(KPa)		 Maximum
differential
pressure
(KPa)		 最Maximum
differential
pressure
(KPa)		 Maximum
differential
pressure
(KPa)
L H D
15579 DQF-B-215 2-way 15 G1/2 5.6 60 39 - 600 - 600 -
15580 DQF-B-215A 2-way 15 G1/2 1.2 60 39 - 600 - 600 -
15581 DQF-B-215B 2-way 15 G1/2 2.5 60 39 - 600 - 600 -
15582 DQF-B-215C 2-way 15 G1/2 3.6 60 39 - 600 - 600 -
15583 DQF-B-215D 2-way 15 G1/2 4.6 60 39 - 600 - 600 -
15584 DQF-B-220 2-way 20 G3/4 9.5 67 44 - 600 - 600 -
15585 DQF-B-220A 2-way 20 G3/4 1.5 67 44 - 600 - 600 -
15586 DQF-B-220B 2-way 20 G3/4 2.3 67 44 - 600 - 600 -
15587 DQF-B-220C 2-way 20 G3/4 4.5 67 44 - 600 - 600 -
15588 DQF-B-220D 2-way 20 G3/4 6.5 67 44 - 600 - 600 -
15589 DQF-B-220E 2-way 20 G3/4 20 66 36 - 600 - 600 -
15590 DQF-B-225 2-way 25 G1 9.5 89 47 - 500 - 500 -
15591 DQF-B-225A 2-way 25 G1 23.5 81 42.5 - 500 - 500 -
15592 DQF-B-232 2-way 32 G1-1/4 15 98.5 52.5 - - - 500 -
15721 DQF-B-232A 2-way 32 G1-1/4 36 89 96.8 - - - 500 -
15593 DQF-B-240 2-way 40 G1-1/2 24 106 57 - - 500 - 500
15594 DQF-B-250 2-way 50 G2 42 123 62 - - 400 - 400
15595 DQF-B-315 3-way 15 G1/2 5.6 60 39 30.5 600 - 600 -
15596 DQF-B-315A 3-way 15 G1/2 1.2 60 39 30.5 600 - 600 -
15597 DQF-B-315B 3-way 15 G1/2 2.5 60 39 30.5 600 - 600 -
15598 DQF-B-315C 3-way 15 G1/2 3.6 60 39 30.5 600 - 600 -
15599 DQF-B-315D 3-way 15 G1/2 4.6 60 39 30.5 600 - 600 -
15600 DQF-B-320 3-way 20 G3/4 9.5 67 44 32 600 - 600 -
15601 DQF-B-320A 3-way 20 G3/4 1.5 67 44 32 600 - 600 -
15602 DQF-B-320B 3-way 20 G3/4 2.3 67 44 32 600 - 600 -
15603 DQF-B-320C 3-way 20 G3/4 4.5 67 44 32 600 - 600 -
15604 DQF-B-320D 3-way 20 G3/4 6.5 67 44 32 600 - 600 -
15605 DQF-B-325 3-way 25 G1 13 89 47 46.5 500 - 500 -
15606 DQF-B-332 3-way 32 G1-1/4 15 98.5 52.5 49 - - 500 -
15607 DQF-B-340 3-way 40 G1-1/2 24 106 57 52 - 500 - 500
15608 DQF-B-350 3-way 50 G2 42 123 62 69 - 400 - 400

Note: DN15~DN20 ball valve, A:KV1.6, B:KV2.5, C:KV4.0, D:KV6.3, E: full diameter.DN25~DN50,without letters: indicates without guide vane.
