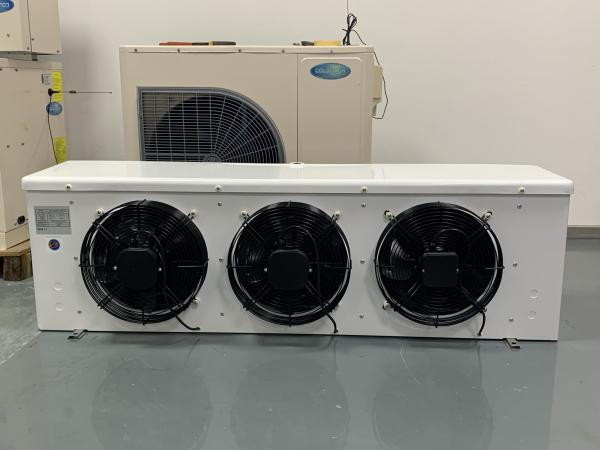

220V R404a Cold Room Evaporators Air Cooler For Cold Room Freezer Room
220V R404a Cold Room Evaporators Air Cooler For Cold Room Freezer Room
Specifications
Brand Name :
Coldmach
Model Number :
CM 3003 16 9D
Certification :
CE / CCC
Place of Origin :
China
MOQ :
1
Price :
negotiate
Payment Terms :
T/T
Supply Ability :
500pcs per weeks
Delivery Time :
4-6 weeks
Packaging Details :
cartons
Relative humidity :
85%
Refrigerant :
R404a
Material :
Aluminum
Temp :
Medium and low temp range
Condition :
New
Power :
220V/50Hz,380V/50Hz/60Hz
Application :
Freezer room, Cold room
Name :
Evaporators Air Cooler For Cold Room Freezer Room
Description

Evaporators Air Cooler For Cold Room Freezer Room

Features:

1. High efficiency heat exchange design,separate evenly,optimizing temperature difference;

2. Sufficient cooling capacity, plenty of heat exchange area;

3. Hot gas defrosting design, without defrosting electrical heater, no hidden dangers, easy to maintenance.

4. Larger air flow rate and cooling fast.

5. Aluminum shell, light-weight,easy installation;

6. Fish type design terminal box, convenient for wiring.

Specifications:

High Temp Series - Fin spacing 4mm, with heaters Rt ≥0℃
Model Tube volume (dm3) Capacity (KW) Surface (m2) Connection (Ømm)
te= -8℃ te= -25℃ Inlet Outlet
DT1=8K DT1=7K
CM-2501-09-4D 1.8 L 1.3 0.94 9 12 16
CM-2502-17-4D 3.2 L 2.68 2.04 17 12 19
CM-2503-26-4D 4.7 L 4.05 3.13 26 12 22
CM-2504-35-4D 6.1 L 5.47 4.38 35 12 22
CM-2506-52-4D 8.7 L 8.16 6.53 52 15 28
CM-3001-12-4D 2.4 L 2.14 1.78 12 12 19
CM-3002-23-4D 4.3 L 4.31 3.54 23 12 22
CM-3003-35-4D 6.2 L 6.47 5.22 35 12 22
CM-3004-46-4D 8.2 L 8.50 6.75 46 15 28
CM-3006-69-4D 11.6 L 12.39 9.54 69 15 28
CM-4001-20-4D 3.5L 4.7 3.84 20 12 19
CM-4002-40-4D 7.2L 9.26 7.25 40 12 22
CM-4003-54 4D 9.6L 12.98 9.98 54 15 28
CM-4004-81-4D 14.4L 12.27 12.85 81 15 35
CM-4501-31-4D 5.5 L 6.61 5.36 31 12 22
CM-4502-61-4D 10.5 L 14.84 11.47 61 15 28
CM-4503-92-4D 15.5 L 21.18 16.04 92 15 35
CM 5001 39 4D 7.1L 9.6 7.64 39 15 28
CM 5001 58 4D 10.6L 11.88 9.62 58 15 28
CM 5002 81 4D 14L 18.75 14.46 81 22 35
CM 5002 121 4D 21L 23.56 18.13 121 22 35
CM 5003 122 4D 21.1L 28.77 22.77 122 28 42
CM 5003 183 4D 31.5L 35.23 27.27 183 28 42

Medium Temp Series - Fin spacing 6mm, with heaters Rt ≥-18℃
Model Tube volume (dm3) Capacity (KW) Surface (m2) Connection (Ømm)
te= -8℃ te= -25℃ Inlet Outlet
DT1=8K DT1=7K
CM-2501-06-6D 1.8 L 1.14 0.81 6 12 16
CM-2502-11-6D 3.2 L 2.35 1.78 11 12 19
CM-2503-17-6D 4.7 L 3.6 2.89 17 12 22
CM-2504-23-6D 6.1 L 4.68 3.67 23 12 22
CM-2506-35-6D 8.7 L 7.17 5.79 35 15 28
CM-3001-08-6D 2.4 L 1.89 1.58 8 12 19
CM-3002-15-6D 4.3 L 3.76 3.1 15 12 22
CM-3003-23-6D 6.2 L 5.59 4.55 23 12 22
CM-3004-31-6D 8.2 L 7.4 5.93 31 15 28
CM-3006-46-6D 11.6 L 10.88 8.31 46 15 28
CM-4001-13-6D 3.5L 4.01 3.29 13 12 19
CM-4002-27-6D 7.2L 7.92 6.35 27 12 22
CM-4003-36-6D 9.6L 11.26 8.84 36 15 28
CM-4004-54-6D 14.4L 15.15 11.6 54 15 35
CM-4501-20-6D 5.5 L 5.41 4.42 20 12 22
CM-4502-41-6D 10.5 L 12.26 9.67 41 15 28
CM-4503-61-6D 15.5 L 17.73 13.48 61 15 35
CM 5001 26 6D 7.1L 8.16 6.59 26 15 28
CM 5001 39 6D 10.6L 10.15 8.22 39 15 28
CM 5002 54 6D 14L 16.02 12.87 54 22 35
CM 5002 81 6D 21L 20.77 16.26 81 22 35
CM 5003 82 6D 21.1L 24.66 19.77 82 28 42
CM 5003 122 6D 31.5L 30.82 24.38 122 28 42

Low Temp Series - Fin spacing 9mm, with heaters Rt ≥-25℃
Model Tube volume (dm3) Capacity (KW) Surface (m2) Connection (Ømm)
te= -8℃ te= -25℃ Inlet Outlet
DT1=8K DT1=7K
CM-2501-04-9D 1.8 L 0.98 0.69 4 12 16
CM-2502-08-9D 3.2 L 2.07 1.66 8 12 19
CM-2503-12-9D 4.7 L 3.12 2.51 12 12 22
CM-2504-16-9D 6.1 L 4.08 3.21 16 12 22
CM-2506-24-9D 8.7 L 6.19 5.04 24 15 28
CM-3001-06-9D 2.4 L 1.59 1.38 6 12 19
CM-3002-10-9D 4.3 L 3.17 2.68 10 12 22
CM-3003-16-9D 6.2 L 4.79 3.92 16 12 22
CM-3004-21-9D 8.2 L 6.32 5.13 21 15 28
CM-3006-31-9D 11.6 L 7.4 5.93 31 15 28
CM-4001-09-9D 3.5L 3.43 2.83 9 12 19
CM-4002-18-9D 7.2L 6.76 5.47 18 12 22
CM-4003-24-9D 9.6L 9.62 7.54 24 15 28
CM-4004-36-9D 14.4L 13.11 10.17 36 15 35
CM-4501-14-9D 5.5 L 4.79 3.99 14 12 22
CM-4502-28-9D 10.5 L 10.92 8.7 28 15 28
CM-4503-41-9D 15.5 L 15.85 12.19 41 15 35
CM 5001 17 9D 7.1L 6.92 5.64 17 15 28
CM 5001 26 9D 10.6L 8.93 7.24 26 15 28
CM 5002 36 9D 14L 13.85 10.99 36 22 35
CM 5002 54 9D 21L 17.73 14.24 54 22 35
CM 5003 54 9D 21.1L 20.88 16.52 54 28 42
CM 5003 82 9D 31.5L 26.69 21.37 82 28 42

220V R404a Cold Room Evaporators Air Cooler For Cold Room Freezer Room

Marks:

* Optional model without heater available.

* Evaporator with Glycol gas available.

* Golden fins with highly anti-corrosion strength available.

* Double trays available.

* Silica gel heater for fan motor with Long-Nozzle available.

Should you have any question, feel free to contact.
