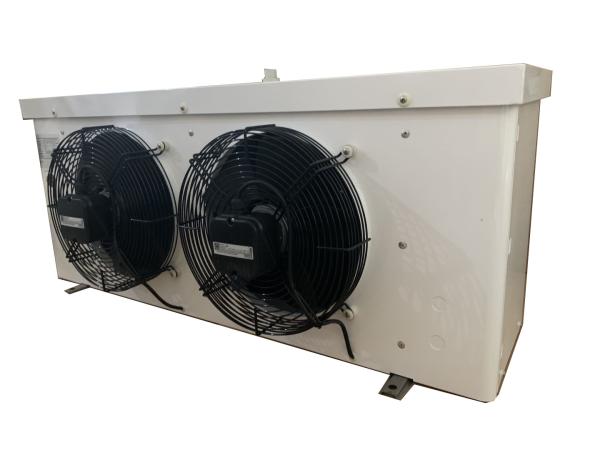

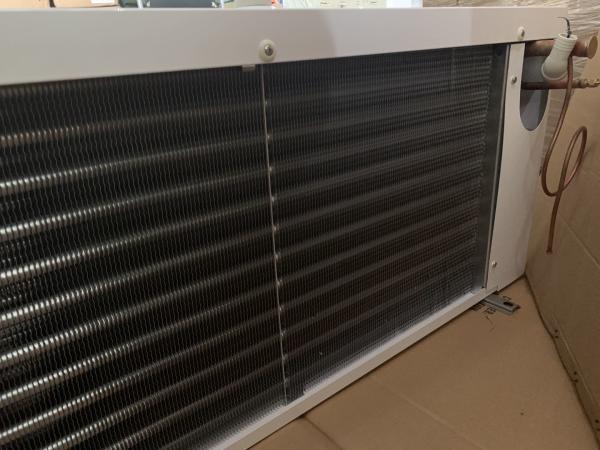

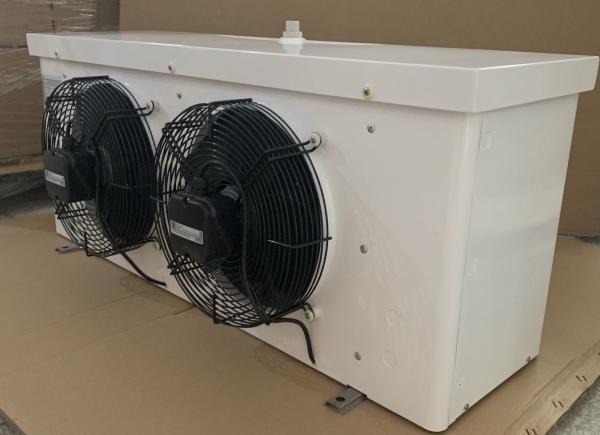

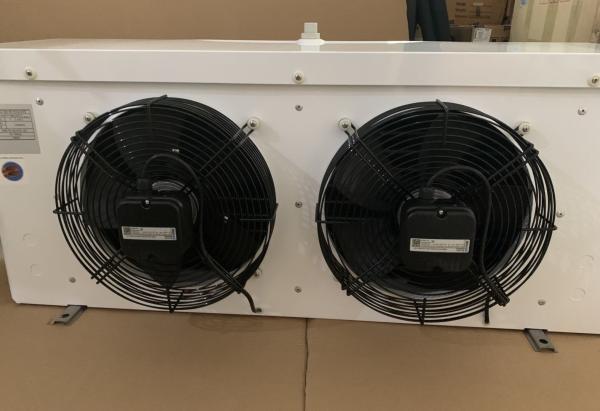

EBM Motor Air Cooler Evaporator R404a Fin Spacing 9mm With Heater
EBM Motor Air Cooler Evaporator R404a Fin Spacing 9mm With Heater
EBM Motor Air Cooler Evaporator R404a Fin Spacing 9mm With Heater
EBM Motor Air Cooler Evaporator R404a Fin Spacing 9mm With Heater
EBM Motor Air Cooler Evaporator R404a Fin Spacing 9mm With Heater
EBM Motor Air Cooler Evaporator R404a Fin Spacing 9mm With Heater
EBM Motor Air Cooler Evaporator R404a Fin Spacing 9mm With Heater
EBM Motor Air Cooler Evaporator R404a Fin Spacing 9mm With Heater
Specifications
Brand Name :
Coldmach
Model Number :
CM series
Certification :
CE / CCC
Place of Origin :
China
MOQ :
1
Price :
negotiate
Payment Terms :
T/T
Supply Ability :
500pcs per weeks
Delivery Time :
4-6 weeks
Packaging Details :
cartons
Relative humidity :
85%
Refrigerant :
R404a
Material :
Aluminum / White painted / Stainless steel
Temp :
Low temp range
Condition :
New
Power supply :
220V/380V/50Hz/60Hz
Application :
Cold storage, freezer and chiller
Name :
Evaporator, Air cooler
Description

Low Temperature Rt≥-25℃ Air Cooler Evaporator Fin Spacing 9mm With Heater Powder Coated Aluminium Ceiling Mounted

1. Can be with EMB motor if needed

2. Aluminum / White painted / Stainless steel cover are optional

Specifications:

Low Temp Series - Fin spacing 9mm, with heaters Rt ≥-25℃
Model Tube volume (dm3) Capacity (KW) Surface (m2) Connection (Ømm)
te= -8℃ te= -25℃ Inlet Outlet
DT1=8K DT1=7K
CM-2501-04-9D 1.8 L 0.98 0.69 4 12 16
CM-2502-08-9D 3.2 L 2.07 1.66 8 12 19
CM-2503-12-9D 4.7 L 3.12 2.51 12 12 22
CM-2504-16-9D 6.1 L 4.08 3.21 16 12 22
CM-2506-24-9D 8.7 L 6.19 5.04 24 15 28
CM-3001-06-9D 2.4 L 1.59 1.38 6 12 19
CM-3002-10-9D 4.3 L 3.17 2.68 10 12 22
CM-3003-16-9D 6.2 L 4.79 3.92 16 12 22
CM-3004-21-9D 8.2 L 6.32 5.13 21 15 28
CM-3006-31-9D 11.6 L 7.4 5.93 31 15 28
CM-4001-09-9D 3.5L 3.43 2.83 9 12 19
CM-4002-18-9D 7.2L 6.76 5.47 18 12 22
CM-4003-24-9D 9.6L 9.62 7.54 24 15 28
CM-4004-36-9D 14.4L 13.11 10.17 36 15 35
CM-4501-14-9D 5.5 L 4.79 3.99 14 12 22
CM-4502-28-9D 10.5 L 10.92 8.7 28 15 28
CM-4503-41-9D 15.5 L 15.85 12.19 41 15 35
CM 5001 17 9D 7.1L 6.92 5.64 17 15 28
CM 5001 26 9D 10.6L 8.93 7.24 26 15 28
CM 5002 36 9D 14L 13.85 10.99 36 22 35
CM 5002 54 9D 21L 17.73 14.24 54 22 35
CM 5003 54 9D 21.1L 20.88 16.52 54 28 42
CM 5003 82 9D 31.5L 26.69 21.37 82 28 42

Marks:

* Optional model without heater available.

* Evaporator with Glycol gas available.

* Golden fins with highly anti-corrosion strength available.

* Double trays available.

* Silica gel heater for fan motor with Long-Nozzle available.

Should you have any question, feel free to contact.
