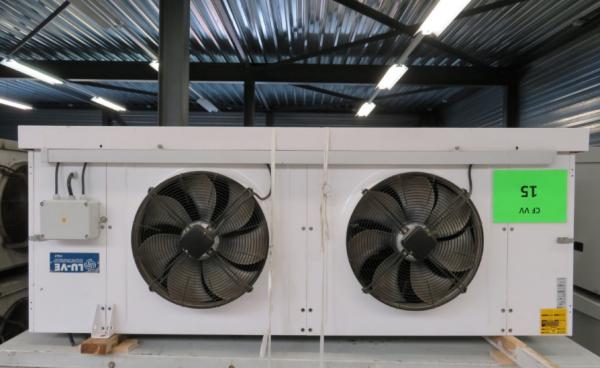

LU-VE Contardo Evaporators Air Cooler For Cold Room Freezer Room
LU-VE Contardo Evaporators Air Cooler For Cold Room Freezer Room
LU-VE Contardo Evaporators Air Cooler For Cold Room Freezer Room
LU-VE Contardo Evaporators Air Cooler For Cold Room Freezer Room
LU-VE Contardo Evaporators Air Cooler For Cold Room Freezer Room
LU-VE Contardo Evaporators Air Cooler For Cold Room Freezer Room
LU-VE Contardo Evaporators Air Cooler For Cold Room Freezer Room
LU-VE Contardo Evaporators Air Cooler For Cold Room Freezer Room
LU-VE Contardo Evaporators Air Cooler For Cold Room Freezer Room
LU-VE Contardo Evaporators Air Cooler For Cold Room Freezer Room
Specifications
Brand Name :
LU-VE Contardo
Model Number :
S2HC S3HC Series
Certification :
CE / CCC
Place of Origin :
Italy
MOQ :
1
Price :
negotiate
Payment Terms :
T/T
Supply Ability :
500pcs per weeks
Delivery Time :
4-6 weeks
Packaging Details :
cartons
Relative humidity :
80%
Refrigerant :
R404a,R134a,R507,R22
Material :
Stainless steel,White Coating
Temp :
High,Medium,Low temp range
Condition :
New
Power :
220V/50Hz,380V/50Hz/60Hz
Application :
Cold storage, Coolroom
Name :
Coldroom evaporator
Description

LU-VE Contardo Evaporators Air Cooler For Cold Room Freezer Room

The LU-VE Contardo Evaporators is designed for most refrigeration applications.

These high quality evaporators (air cooled) can be used for all kinds of coldroom, cool room, freeze room etc application. The capacity is from 1400W to 27200W, low temperature or high temperature.

S2HC Series: 1400-9400W

Model (50=4.8mm) 25-50 36-50 49-50 71-50 107-50 142-50
Cooling capacity (W) 1800 2350 3800 4750 7200 9400
Air Flow ( m3/h) 950 950 1900 1900 2850 3800
Air Throw (M) 11 11 13 13 14.5 16
Surface (m2) 6.8 6.8 13.6 13.6 20.4 27.2
Weight (Kg) 12 13 19 21 28 36
Model (65=6.3mm) 19-65 28-65 38-65 55-65 85-65 110-65
Cooling capacity (W) 1600 2065 3300 4150 6300 8300
Air Flow ( m3/h) 1000 1000 2000 2000 3000 4000
Air Throw (M) 11.5 11.5 13.5 13.5 15 17
Surface (m2) 5.3 5.3 10.7 10.7 16 21.4
Weight (Kg) 11 12 18 20 27 34
Model (80=7.7mm) 16-80 23-80 31-80 46-80 70-80 92-80
Cooling capacity (W) 1400 1800 2900 3600 5550 7400
Air Flow ( m3/h) 1050 1050 2100 2100 3150 4200
Air Throw (M) 12 12 14 14 16 18
Surface (m2) 4.4 4.4 8.8 8.8 13.2 17.6
Weight (Kg) 10 11 17 19 26 32

S3HC Series: 2900-27200W

Model (50=4.8mm) 73-50 106-50 133-50 145-50 215-50 272-50 323-50 362-50 430-50
Cooling capacity (W) 5350 6700 8000 10800 13500 18450 20200 24800 27200
Air Flow ( m3/h) 2600 2400 2650 5200 4800 7450 7200 9950 9600
Air Throw (M) 15.5 14.5 16 18.5 17.5 21 20 24 23
Surface (m2) 12.3 18.4 24.5 24.5 36.8 45.9 55.1 61.3 73.5
Weight (Kg) 27 32 35 44 51 65 71 86 93
Model (65=6.3mm) 59-65 84-65 108-65 117-65 174-65 218-65 261-65 290-65 348-65
Cooling capacity (W) 4500 5900 7100 9200 11950 16100 18000 21500 24000
Air Flow ( m3/h) 2650 2500 2700 5300 5000 7700 7500 10300 10000
Air Throw (M) 16 15 16.5 19 18 21.5 20.5 24.5 23.5
Surface (m2) 9.6 14.4 19.2 19.2 28.8 36.1 43.3 48.1 57.7
Weight (Kg) 26 31 33 42 49 62 67 82 88
Model (80=7.7mm) 47-80 69-80 86-80 94-80 143-80 179-80 213-80 238-80 284-80
Cooling capacity (W) 3900 5200 6300 7950 10650 14150 16000 18800 21300
Air Flow ( m3/h) 2700 2600 2750 5400 5200 7950 7800 10600 10400
Air Throw (M) 16.5 1.5 17 19.5 18.5 22 2135.7 25 24
Surface (m2) 7.9 11.9 15.9 15.9 23.8 29.8 35.7 39.7 47.6
Weight (Kg) 25 30 32 41 47 60 65 79 85

S2HC Series Model SS cover Capacity (W) S3HC Series Model SS cover Capacity (W)
S2HC 25-50-SS 1800 S3HC 73-50-SS 5350
S2HC 36-50-SS 2350 S3HC 106-50-SS 6700
S2HC 49-50-SS 3800 S3HC 133-50-SS 8000
S2HC 71-50-SS 4750 S3HC 145-50-SS 10800
S2HC 107-50-SS 7200 S3HC 215-50-SS 13500
S2HC 142-50-SS 9400 S3HC 272-50-SS 18450
S2HC 19-65-SS 1600 S3HC 323-50-SS 20200
S2HC 28-65-SS 2050 S3HC 362-50-SS 24800
S2HC 38-65-SS 3300 S3HC 430-50-SS 27200
S2HC 55-65-SS 4150 S3HC 59-65-SS 4500
S2HC 85-65-SS 6300 S3HC 84-65-SS 5900
S2HC 110-65-SS 8300 S3HC 108-65-SS 7100
S2HC 16-80-SS 1400 S3HC 117-65-SS 9200
S2HC 23-80-SS 1800 S3HC 174-65-SS 11950
S2HC 31-80-SS 2900 S3HC 218-65-SS 16100
S2HC 46-80-SS 3600 S3HC 261-65-SS 18000
S2HC 70-80-SS 5550 S3HC 290-65-SS 21500
S2HC 92-80-SS 7400 S3HC 348-65-SS 24000
S3HC 47-80-SS 3900
S3HC 69-80-SS 5200
S3HC 86-80-SS 6300
S3HC 94-80-SS 7950
S3HC 143-80-SS 10650
S3HC 179-80-SS 14150
S3HC 213-80-SS 16000
S3HC 238-80-SS 18800
S3HC 284-80-SS 21300


Features:

1. High efficient coils - high efficient coils are made of high quality copper tubes and good aluminum fins. Heat exchanger is supplied clean and tested under pressure of 30 bars.

2. Inside grooved copper tubes - increase heat efficiency exchange by 10-12%.

3. Stainless steel tubes and Stainless steel covers are available.

4. Casing - White power coating aluminium or stainless steel 304, highly anti-corrosion strength, impact resistance, and does not produce polluting debris.

5. Fan motors - High quality fan motors fitted well to the unit casing with an anti-vibration system.

6. Defrost heating - SS electric heater parts covered by the aluminium tubes, located in the finned pack and in the drain pan, to avoid steam problems and make easy replacement.

7. Electrical elements and wiring - are connected to an earth terminal, carried out in junction box with access holes equipped with water-proof cable grands. All materials are selected carefully for long-term reliability.

8. Expansion valve and solenoid valve are available.

9. Capacities with other fans requested can be supplied separately.

Should you have any question, feel free to contact
