Specifications
Brand Name :
HENGZE
Model Number :
HZ-2400
Certification :
CE
Place of Origin :
China
MOQ :
5
Price :
Negotiable
Payment Terms :
T/T, Western Union , MoneyGram
Supply Ability :
100+unit+15days
Delivery Time :
15 work days
Packaging Details :
Wooden box packing
Power (W): :
437500
Place of Origin: :
Guangdong, China
main temperature :
60-65℃
Inlet water pressure (kg/C㎡) :
2-5kg/C㎡
Name :
Commercial Dishwasher Machine
OEM/ODM :
YES
Description

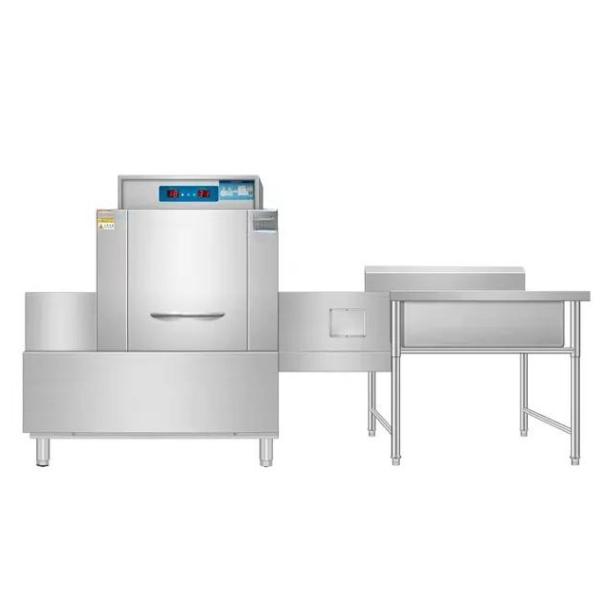

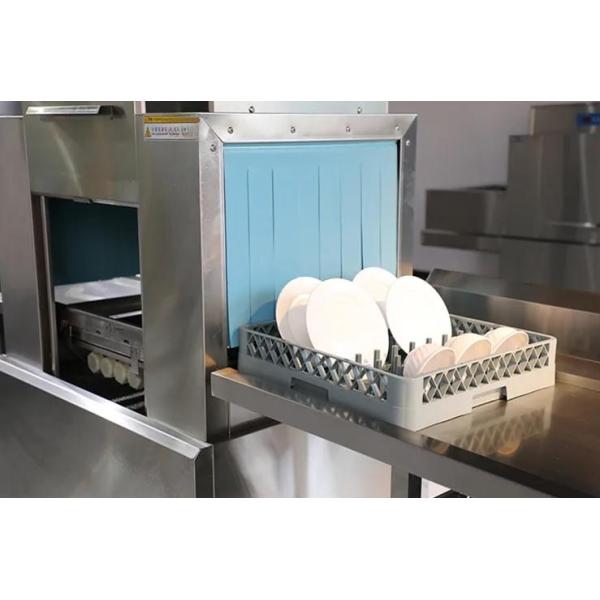

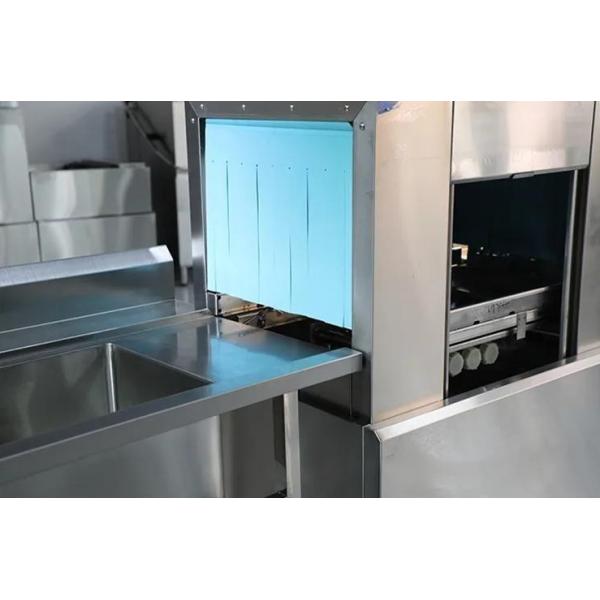

Countertop Rv Dishwasher Conveyor Belt Commercial Dishwasher Machine

Product Description:

voltage&Power
380V/43.75KW
dimension
2300*760*1520mm
Gross Weight
345KG/PCS
washing capacity
2500-4000Disc/H
water consumption
390L/H
main temperature
60-65℃
rinse temperature
80-90℃
Inlet water pressure (kg/C㎡)
2-5kg/C㎡
Inlet size
G1/2"
drain size
θ50
washing basket inlet size
530*420mm

Main Features:

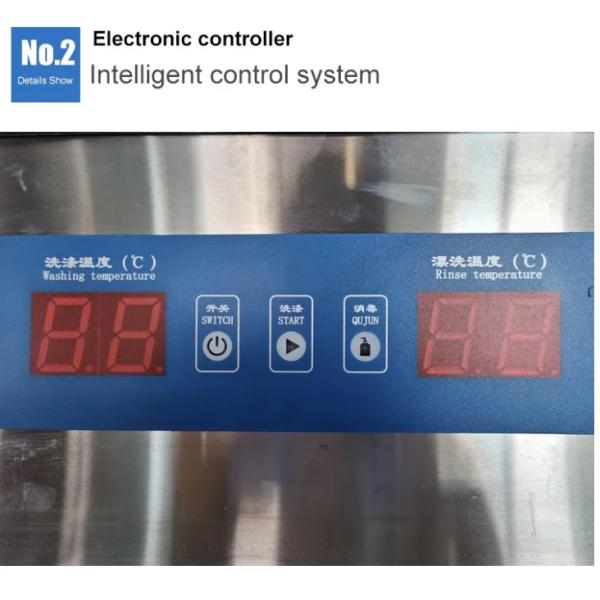

1 Stable control system, simple mechanical operation panel, with LED temperature display, alarm prompt and fault diagnosis
2 Inclined track to keep the tableware at the best cleaning angle
3 When the tableware enters the machine, the infrared sensor starts the washing process

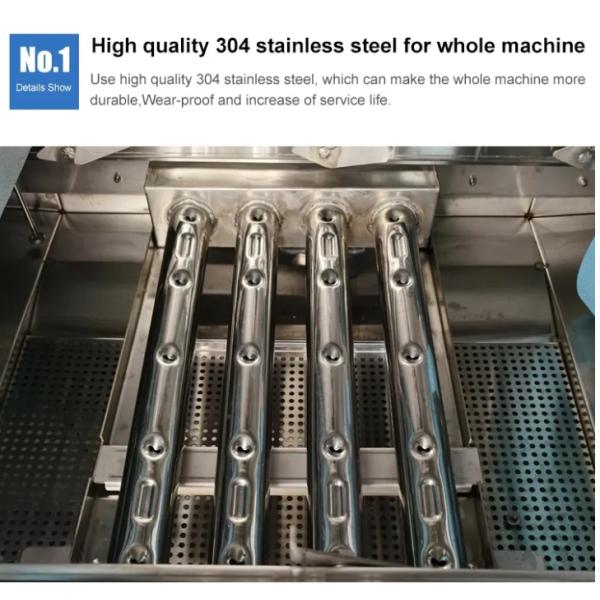

4 Each cleaning module is equipped with 8 concave anti-blocking spray feeding arms to ensure a larger range of fan-shaped water flow and better cleaning performance;
5 The wash arm and spray arm adopt a pull-out structure, which is more convenient to disassemble and clean
6 Double-channel spraying system, better spraying effect, effectively reducing water consumption;
7 Import and export double gear design, reduce chain wear

Specifition:

Model No 203E
Product Name Rack Conveyor Dishwasher
Performance
External Dimension(mm)
Length×Width×Height 1105x772x1650
Electrial
Rated Voltage(V/N/Hz) 380/3/50
Rated Power (kW) 43.75
Electric Current(A) 66.5
Main Heating Power(kW) 12

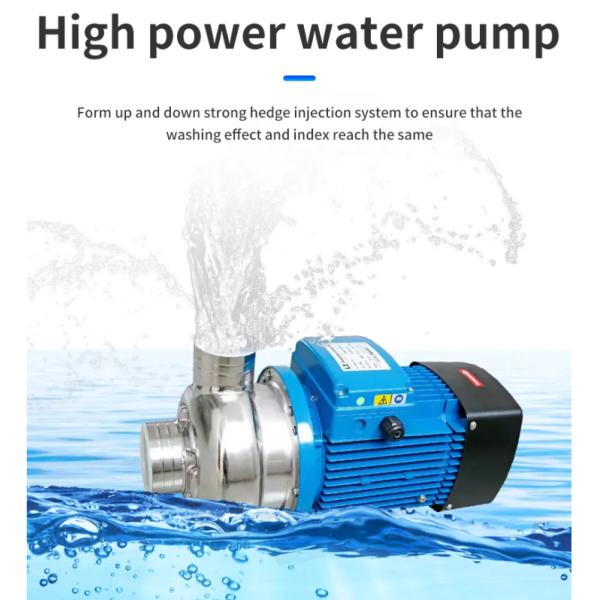

Main Wash Pump Power(kW) 1.5
Rinse Heating Power(kW) 30
Configuration
Water Tank Capacity(L) 75
Power Line Specifications(mm) 25
Water Inlet(DN) 20
Drainage(DN) 50
Water Pressure(MPa) 0.1 ~ 0.35
Water Main Wash Temperature(℃) 55-65
Water Rinse Temperature(℃) 82~90
Water Inlet Temperature(℃) 10~60
Minimum Water Flow(L/H) 405
Exhaust Inlet(m3/min) 5.7
Exhaust Outlet(m3/min) 11.3
Packing Size(mm) 1215*850*1770
Net Weight(kg) 218
Gross Weight(kg) 280

About Us:

Guangdong Hengze Commercial Kitchen Equipment Co., Ltd.. was established in 2016 and located in Shunde Foshan, China. It is a leading enterprise in the commercial dishwasher equipment industry with strong technical strength and complete production lines.

We are a professional manufacturer specialized in commercial dishwasher equipment with many years experiences. Now we have 4 main dishwasher products including hood type dishwasher, rack conveyor dishwasher and Long line conveyor dishwasher,Bubble Washing Machine . High quality is the most important point for us to make sure our final customers have perfect satisfied using experience. By now, we have cooperated with many Hotels, Schools, Company groups, Hospitals and Restaurants also we have exported our dishwasher into many countries out of China rely on the advantage of our competitive price, high quality, fast producing and delivery.

Hengze has been committed to providing international standard quality commercial dishwasher products and one-stop solutions for all partners. We have the most advanced laser cutting machine, bending machine. From product development to production inspection, we have a complete set of quality control process. Also we have obtained CE ISO14001 ISO9001 certification. Selling well in all cities and provinces around China, the products are also exported to customers all of the world as the United States, Japan, Malaysia, Thailand, Singapore, Qatar, India, Africa, Kazakhstan and Saudi Arabia.

We have an experienced products development team making sure to provide OEM/ODM service with high-quality. Whether selecting a current product from our catalog or seeking engineering assistance for your requirement you can talk to our customer service center about your sourcing requirements. We must provide you professional services with nice price, high quality and fast delivery.
