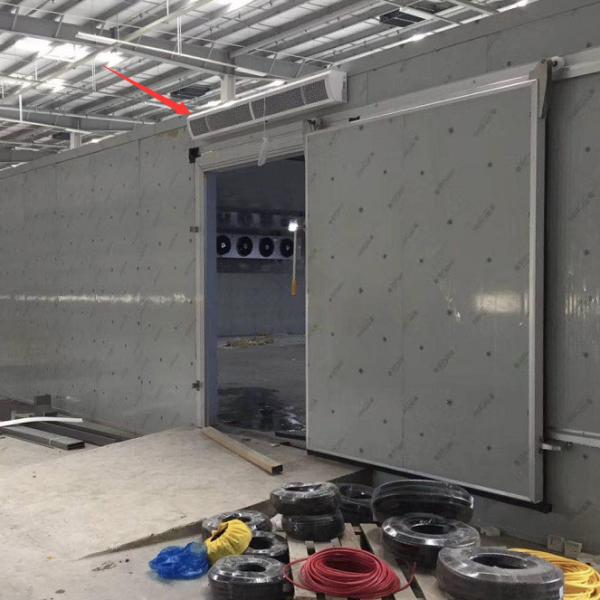

100nn PU panel Sliding door cold room Cold Room With Refrigeration Unit Food Storage Cold Chamber For Restuarant Use
Products details
This walk in cold room can be widely used in many fields including foods, aquatic product medical health etc. Indoor temperature: Between +10 and -35 degree C.
The main equipments and materials:
1. Refrigeration system:
1.1 Compressor: Famous Brand, Copeland etc for choice,
1.2 Condenser units: Water cooled, air cooler or water and air cooled for choice.
1.3 Evaporator: Air cooler and grid evaporator for choice.
2. Electric system: Siemens electric components or the other brand for choice.
3. Insulation panel, cold store panels:
3.1 Material: Polyurethane (PU), metal sheet.
3.2 Density of PU: 38~40 kg/m3, 40~42kg/m3, 42~45kg/m3 for choice,
3.3 Metal sheet: Painted steel sheet, stainless steel sheet, aluminium steel sheet or mixed together for choice.
3.4 Thickness of panel: 75mm, 100mm, 110mm, 150mm and 200mm for choice.
4. Cold store door:
4.1 Sliding door and swing door for choice,
4.1.1 Sliding door: Manual opened, automatic opened for choice.
Our advantage
1.avoid between cells in gennerating large ice crystals
2.reduce cell the thawing water out,less wastage juice
3.cells inside the orgnization, the solute concentration and food, colloid and various ingredients orgnization touch each other time shotens significantly,the harmfulness of concentrated down to a minimum
4.will the food quickly reduced to microbial growth activities under temperature,the growth of microorganism beneficial boycott and biochemical reactions
5.in frozen food stayed in short time, the equipment to improve the utilization ratio of equipment and continuous production
Material novel:

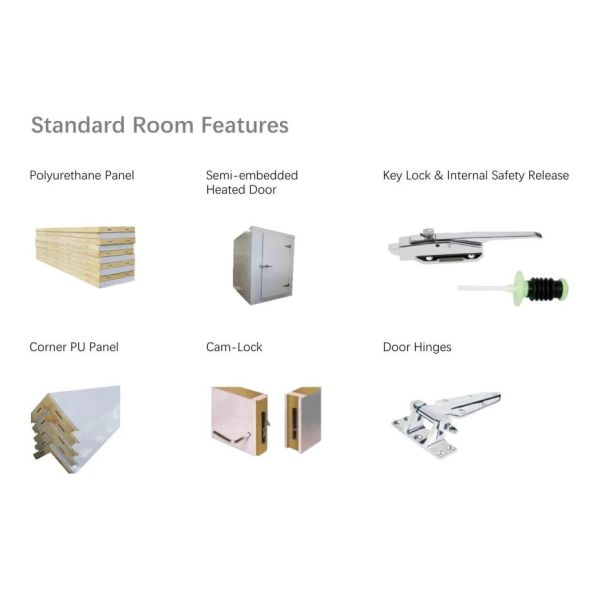

Cold Room Polyurethane ( PU) Sandwich Panels | |
Thickness | 50, 75, 100, 150 , 200 mm |
Density | 38 - 40 – 43 – 46 kg / m3 |
Width | 960mm |
Joint | Camlock (tongue and groove) |
Plate | External is color steel or stainless steel or Aluminium (Stucco embossed or pre-painted) |
Usage | Wall & Floor & Ceiling |
Door | Sliding door and Swing door |
