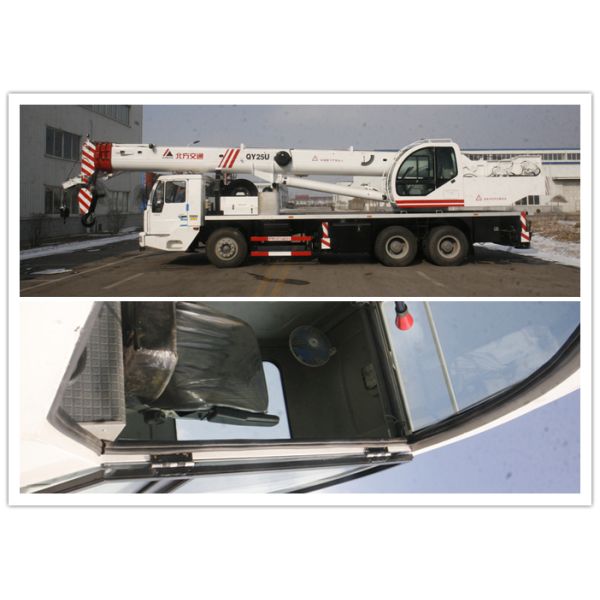

199kw Hydraulic Truck Crane 25t 70km / H With 6.1m Outrigger Horizontal Span
199kw Hydraulic Truck Crane 25t 70km / H With 6.1m Outrigger Horizontal Span
199kw Hydraulic Truck Crane 25t 70km / H With 6.1m Outrigger Horizontal Span
199kw Hydraulic Truck Crane 25t 70km / H With 6.1m Outrigger Horizontal Span
Specifications
Brand Name :
KaiFan
Model Number :
KFM5323JQZ25G5
Certification :
IQNET,ISO
Place of Origin :
China
MOQ :
1
Price :
USD
Payment Terms :
T/T
Supply Ability :
300/year
Delivery Time :
3months
Altitude :
0-4500m
Temperature :
-25℃--+45℃
Elevation of boom :
-2~80°
Rated power :
199KW
Departure angle :
11°
Traveling speed :
70 km/h
Description

Extension time of the lift boom 110s 25T Truck Mounted Crane Horizontal span of outrigger 6.1m

I. The working condition of the truck

1,Allowed working condition: solid, stable land, the vehicle should be horizontal

2,Wind force: ≤6 degree

II. Main Parameters of the truck

Items Unit Value

Working Performance Parameters

 Max. Rated lifting weight kg 25000
Max. Lifting force of the basic boom kn.m 970
Max. Lifting force of the longest main boom kn.m 470
Max. Height of the main boom m 40
Max. Height of the vice boom m 48.2
Max. Speed of the single rope (the second stage) m/min 120
Traveling Parameters Max. Traveling speed km/h 70
Max. Grade ability % 30
Min. Turning radius m 11
Min. Ground clearance m 0.27
Approaching angle ° 16
Departure angle ° 11

Dimension Parameters

 External dimension(length×width×height) mm 12790×2500×3460
Vertical span of outrigger m 5.35
Horizontal span of outrigger m 6.1
Length of main boom m 10.3~39.5
Length of vice boom m 8.3
Elevation of boom ° -2~80

III. Standard Equipments of the truck

1. Electric system

3. Outrigger

4. Superstructure control system

5. Chassis control system

6. Tool box
