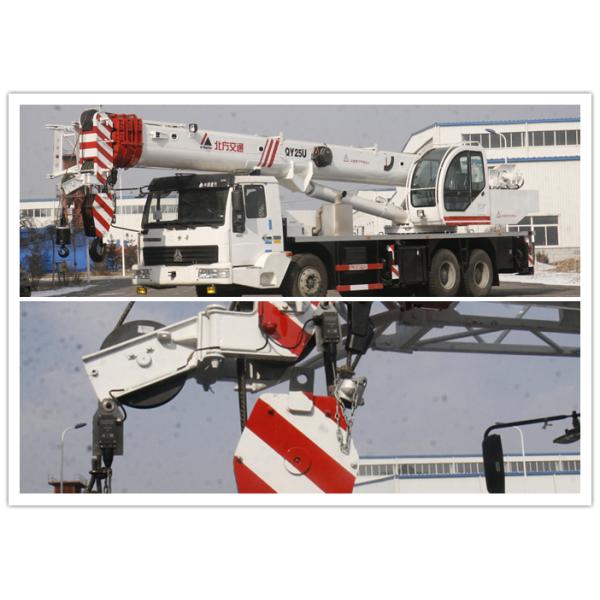

25 Ton Hydraulic Truck Crane 199kw Vice Boom Length 8.3m Max Height 48.2m
25 Ton Hydraulic Truck Crane 199kw Vice Boom Length 8.3m Max Height 48.2m
25 Ton Hydraulic Truck Crane 199kw Vice Boom Length 8.3m Max Height 48.2m
25 Ton Hydraulic Truck Crane 199kw Vice Boom Length 8.3m Max Height 48.2m
Specifications
Brand Name :
KaiFan
Model Number :
KFM5323JQZ25G5
Certification :
IQNET,ISO
Place of Origin :
China
MOQ :
1
Price :
USD
Payment Terms :
T/T
Supply Ability :
300/year
Delivery Time :
3months
Altitude :
0-4500m
Temperature :
-25℃--+45℃
Wind force :
≤6 degree
Rated power :
199KW
Max. Torque :
1100n.m
Departure angle :
11°
Description

Max. Height of the vice boom 48.2m 25T Truck Mounted Crane Length of vice boom 8.3m

1. Working Condition

1,Allowed working condition: solid, stable land, the vehicle should be horizontal

2,Wind force: ≤6 degree

2. Main Parameters

Items Unit Value

Working Performance Parameters

 Max. Rated lifting weight kg 25000
Max. Lifting force of the basic boom kn.m 970
Max. Lifting force of the longest main boom kn.m 470
Max. Height of the main boom m 40
Max. Height of the vice boom m 48.2
Max. Speed of the single rope (the second stage) m/min 120
Working Speed Extension time of the lift boom s 110
Lifting time of the lift boom s 60
Turning speed r/min 0～2
Vertical span of outrigger m 5.35
Horizontal span of outrigger m 6.1
Length of main boom m 10.3~39.5
Length of vice boom m 8.3
Elevation of boom ° -2~80

3. Standard Equipments

1. Electric system

2. Hydraulic system

3. Outrigger

4. Superstructure control system

25 Ton Hydraulic Truck Crane 199kw Vice Boom Length 8.3m Max Height 48.2m
