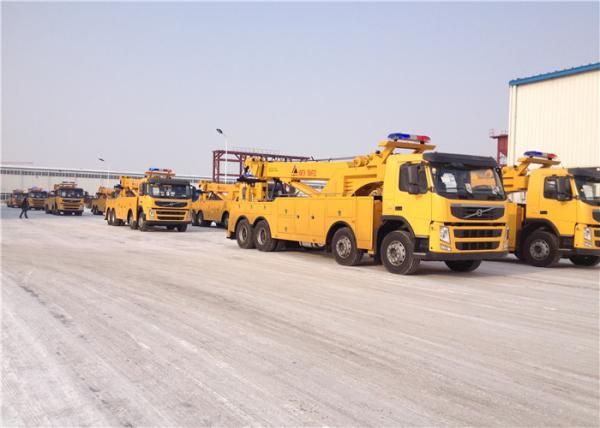

Two Persons' Diesel Fuel Heavy-duty H Series Safety Road Wrecker Truck
Two Persons' Diesel Fuel Heavy-duty H Series Safety Road Wrecker Truck
Two Persons' Diesel Fuel Heavy-duty H Series Safety Road Wrecker Truck
Two Persons' Diesel Fuel Heavy-duty H Series Safety Road Wrecker Truck
Specifications
Brand Name :
KaiFan
Model Number :
KFM5071TQZ13P –SQZ1503PO
Certification :
IQNET,ISO
Place of Origin :
China
MOQ :
1 unit
Price :
Factory price. Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
300/year
Delivery Time :
3months
Packaging Details :
Exporting standard package or customized packing
Temperature :
-35℃--+45℃
Fuel type :
Diesel
Engine model :
D13
Persons :
2
Tire size :
315/80R22.5
Drive :
10×4 drive
Wind force :
≤8degree
Product name :
Road Wrecker Truck
Description

25% Max. Grade ability 2 persons Diesel Fuel Heavy-duty H Series volvo chassis Road Wrecker D13 Engine model



A,Working Condition
1,Altitude: 0-4500m
2,Temperature: -35℃--+45℃
3,Relative humidity: 80%
4,Wind force: ≤8degree


B,Working Range
KFM5540TQZ Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind


C,Main Parameters

ItemsUnitValue
Lifting StructureRated Lifting weightkg15815
Max. Lifting weight of original placekg35000
Max. Lifting weight of full extension boomkg12500
Rated towing weightkg54000
Max. Designed towing weightkg80000
Effective length of boomm3670
Extension traveling of boomm1850
Folding angle of boom°90
Under lift StructureMax. Rated hanging weightkg40000
The height from hook to the groundmm13500
Max. Extension traveling of lifting boommm6000
Rotation angle°360
Numbers of winchpiece2
Rated pulling power of winchkg25000
Dia. Of steel cablemm26
Length of steel cablem45
Min. Speed of steel cablem/min4
Rotation angle°65

Vehicle
Parameters

External dimensionmm11342×2500×3710
Chassis model FM440 104RB
Drive 10×4
Axle basemm1995+2805+1400+1370
The whole weight of empty loadkg38055
Load of front axle of empty loadkg16885
Load of rear axle of empty loadkg21170
The whole weight of full loadkg54000
Load of front axle of full loadkg9000
Load of rear axle of full loadkg10000/13000
Wheel base (front/rear axle)mm2029/1875
Front suspensionmm1362
Rear suspensionmm1750
Approach angleº16.6
Departure angleº20
Min. Turning diameterm27.2
Min. Ground clearancemm306
Max. Speedkm/h90
Max. Grade ability%25
Gas consumption per one hundred miles(diesel oil)L42.9
Engine model-D13
Engine emissionL12.8
Rated powerkw/r/min440/324/1400～1800
Torquen·m/r/min2200/1050～1400
Fuel type Diesel
Standard of emission EN III
Tire size 315/80R22.5
Persons 2
