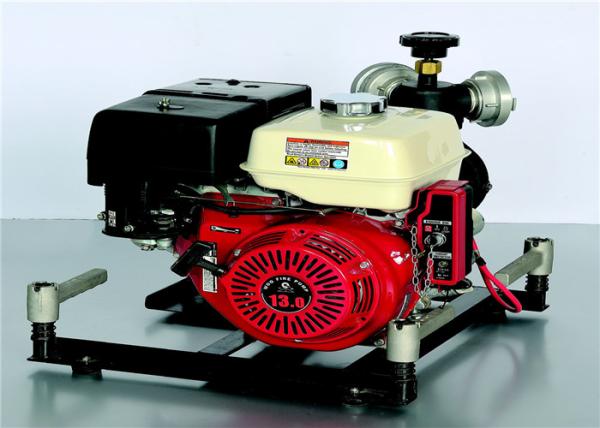

Single Stage Portable Fire Fighting Pumps Threaded 7800rpm High Lift Forest
Single Stage Portable Fire Fighting Pumps Threaded 7800rpm High Lift Forest
Single Stage Portable Fire Fighting Pumps Threaded 7800rpm High Lift Forest
Single Stage Portable Fire Fighting Pumps Threaded 7800rpm High Lift Forest
Specifications
Brand Name :
Jindun
Model Number :
JBQ10/3.6-K
Certification :
ISO
Place of Origin :
China
MOQ :
1
Price :
USD
Payment Terms :
T/T
Supply Ability :
300/year
Delivery Time :
3months
Dimension :
610×560×610mm
Net weight :
≤67kg
Highest lift :
150m
Rated pressure :
1.0Mpa
Cylinders :
Double cylinder
Water pump :
Single stage
flow rated :
220L/min
suction depth :
7m
Description

Single stage/7800RPM High lift forest Portable fire pump 14HP KOHLER CH440 HONDA GX390

Dimension 610×560×610mm
Weight ≤67kg
Rated flow rate 220L/min
Lift 150m
Rated pressure 1.0Mpa
Inlet pipe diameter Φ65mm
Outlet pipe diameter φ40mm
Water gun nozzle diameter φ12mm
Connection method Threaded type
Maximum suction depth 7m
Water diversion time ≤35s(Exhaust diversion)
Startup mode Hand / electric start
Engine model 14HP, KOHLER CH440 HONDA GX390
Water pump Single stage/7800RPM

Single Stage Portable Fire Fighting Pumps Threaded 7800rpm High Lift Forest
