2200L watar and 500L Foam Tender Fire Fighting Truck With Imported Chassis 5 Seats
2200L watar and 500L Foam Tender Fire Fighting Truck With Imported Chassis 5 Seats
2200L watar and 500L Foam Tender Fire Fighting Truck With Imported Chassis 5 Seats
2200L watar and 500L Foam Tender Fire Fighting Truck With Imported Chassis 5 Seats
Specifications
Brand Name :
IVECO
Model Number :
JDX5080GXFPM30/Y
Certification :
ISO9001,CCC
Place of Origin :
shanghai China
MOQ :
1 unit
Price :
Factory price, Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
90days after sign contract
Supply Ability :
300 units/year
Packaging Details :
Exporting standard package or customized packing
Overall :
5270×2200×2980 mm
Gross weight :
7800 Kg
Water capacity :
2200 L
Foam capacity :
500 L
wheel base :
2790 mm
Drive type :
4x2 Drive
Max. speed :
110km/h
Product name :
Foam fire fighting truck
Description

2200L watar and 500L Foam Tender Fire Fighting Truck With Imported Chassis 5 Seats

Vehicle basic data

Dimension (L×W×H) 5270mm×2200mm×2980mm
Gross weight 7800 (kg)
Wheel base 2790mm
Water/ foam tank capacity 2200L /500L
Max. engine power 160kW(217hp)/2700r/min
Emission standard China V
Max. speed 110km/h
Seat (inc. driver) 2+3
Approach angle 18°
Departure angle 30°
Fire pump flow 1.0MPa, 32L/s

　

Chassis

Manufacturer FIAT IVECO
Model ML 100E22
Driving 4×2
Min. turning radius 5.2m
Min. ground clearance Front 169mm, rear 172mm
Chassis Net weight 10910Kg
Approach angle 18°
Departure angle 18°
Engine IVECO TECTOR 6, F4AE3681B*S
Max. authorized total mass 10000kg
Displacement 5.88L
Max. torque 680N•m/1200~2100r/min
Max. power 160kW (217HP)/2700r/min

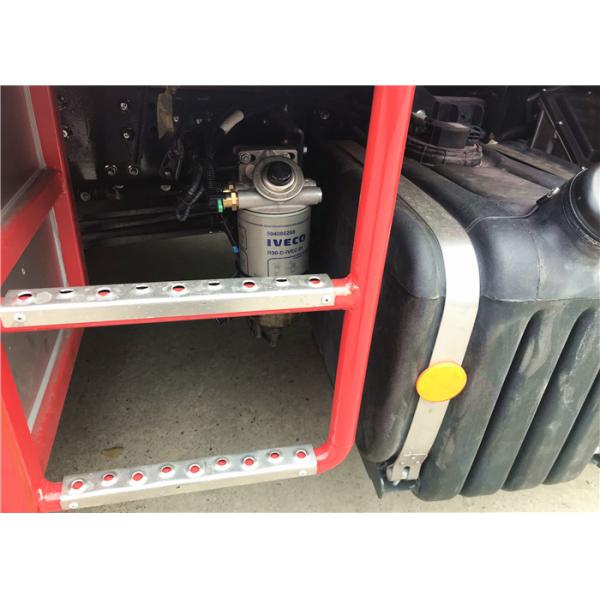

Fuel tank 115L plastic fuel tank, 25L heating type urea tank, Recor oil-water separator with heating

Fire pump

Manufacturer HALE
Model AP32
Water flow 1.0MPa 32L/s
Max. suction depth 7m
Priming time ≤35s

Fire fighting system

Suction inlet 1×DN100 butterfly valve, electric and manual operation
Outside Suction inlet 1×DN125 suction coupling with stainless steel butterfly valve and lid cover, snap- type
Outlet 2×DN80 ordinary outlet with manual ball value, insertion-type
Pump outlet 10mm stainless steel ball valve, manual
Outside liquid inlet Use G1 1/2’’ manual ball valve and KY40 solenoglyphic tooth coupling

Onboard document

  1. Vehicle operation and maintenance manual
  2. Chassis operating manual
  3. Chassis operation and maintenance manual
  4. Chassis quality warranty card

Electrical system

The main lights in the cab at the top of the long row of lights, public address system with Wail-Yelp alarm whistle, including microphone and 100W loudspeaker. 2 Red and blue alarm lamp on both side. A 70w searchlight is set on the roof of the vehicle.

Painting

Red paint: cab, body (shutter doors, except decorative strip)

2200L watar and 500L Foam Tender Fire Fighting Truck With Imported Chassis 5 Seats

​

FAQ:

1. Q:Are you a factory or a trade company?

A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.

2. Q:Where is your factory located?

A:We are located in Shanghai Province,China.

3. Q:What's your payment method?

A: T/T and L/C are preferred.

4.Q:Do you arrange shipment for the vehicles?

A:Yes, we can arrange shippment based on trade terms.

5. Q: How is the packing?

A:All the packing comply with exporting standard.

Any other questions, please do not hesitate to contact with us.
