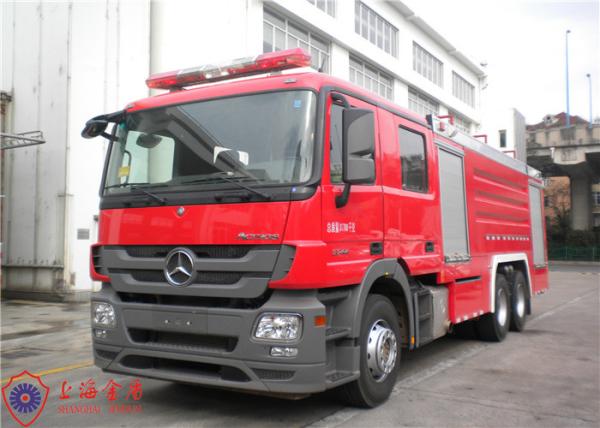

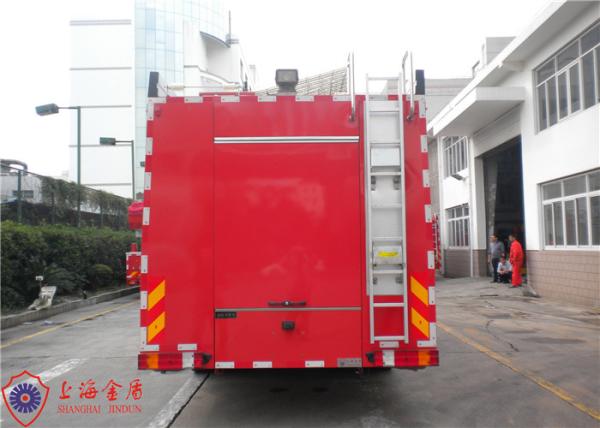

Mercedes Chassis Foam Firefighting Vehicle 6X4 Drive Six Seats with 90L/s Flow Pump
Mercedes Chassis Foam Firefighting Vehicle 6X4 Drive Six Seats with 90L/s Flow Pump
Mercedes Chassis Foam Firefighting Vehicle 6X4 Drive Six Seats with 90L/s Flow Pump
Mercedes Chassis Foam Firefighting Vehicle 6X4 Drive Six Seats with 90L/s Flow Pump
Specifications
Brand Name :
Benz
Model Number :
JDX5320GXFPM160/B
Certification :
ISO9001/CCC
Place of Origin :
shanghai,China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
350 units/year
Delivery Time :
90 days after sign contract
Packaging Details :
Nude packing
Size :
10135×2500×3500mm
G.V.W (kg) :
31800kg
Wheelbase :
4500+1350mm
Drive type :
6x4
seat :
6
Max. power :
325kw
Chassis :
Mercedes Benz
Product name :
Foam firefighting vehicle
Description

Pump 90L/s flow Mercedes chassis Foam firefighting truck vehicle 6X4 drive six seats

Fire truck (also called fire fighting vehicle , Fire engine , Fire fighting apparatus , Fire service truck , Fire and rescue truck , fire truck , fire fight truck , Foam fire tank truck , Fire extinguishing foam tanker ) is a vehicle designed primarily for fire fighting operation to extinguish fire efficiently to prevent fire spread , reducing the loss caused by fire maximumly .

Vehicle

Dimension (L×W×H)10135×2500×3500mm
Gross weight31800kg
Complete vehicle shipping mass15600kg
Seat (inc. driver)6
Max. power325kw


Chassis

ManufacturerDiamler
ModelActros3344
Drive type6x4
CabFlattop double row, overturning type
Crew department4 air breathing apparatus fixed mount in the seats
Wheelbase4500+1350mm
Max. speed100km/h
Min. turning diameter<25m
Approach angle16°
Departure angle11°


Equipment tank

MaterialQ235A high quality steel combine with porous steel
StructureSplit type welding structure
Equipment compartment doorThe light quality aluminum alloy, with shutter doors, lightweight and reliable.
Internal structurethe inner frame for the introduction of aluminum lap technology, can maximize space utilization and variability within the equipment, users can request allocation of various sliding bracket, carriage, rotating frame, and high strength plastic storage box and so on, the structure from the space utilization, aesthetic appearance, ease of handling equipment have reached the international advanced level.


Pedal plate

  • Location: At the bottom of roller shutter door.
  • Material: Steel frame covered by aluminum alloy checkered plate
  • Structure: adopt the gas springs plus shutter fasten, safe and reliable, each petal plate bearing ≥150Kg.



Mercedes Chassis Foam Firefighting Vehicle 6X4 Drive Six Seats with 90L/s Flow Pump

FAQ:

1. Q:Are you a factory or a trade company?

A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.

2. Q:Where is your factory located?

A:We are located in Shanghai Province,China.

3. Q:What's your payment method?

A: T/T and L/C are preferred.

4.Q:Do you arrange shipment for the vehicles?

A:Yes, we can arrange shippment based on trade terms.

5. Q: How is the packing?

A:All the packing comply with exporting standard.

6. Q: What's your main product?

A: Our main product include : water & foam tank trucks, CAFS fire trucks, chemical fire trucks, emergency rescue vehicles, lighting trucks, aerial ladder and platform trucks, airport fire trucks, water tower fire trucks and other general fire trucks. The products have been sold to more than 20 countries.

Any other questions, please do not hesitate to contact with us.
