8 Ton Lighting Fire Truck with 8x2 KW Main Lamps
8 Ton Lighting Fire Truck with 8x2 KW Main Lamps
8 Ton Lighting Fire Truck with 8x2 KW Main Lamps
8 Ton Lighting Fire Truck with 8x2 KW Main Lamps
Specifications
Brand Name :
Jindun
Model Number :
JDX5080TXFZM50
Certification :
ISO9001/CCC
Place of Origin :
SHANGHAI,CHINA
MOQ :
1 UNIT
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
90 days after sign contract
Supply Ability :
350 units/year
Packaging Details :
Nude packing
Gross weight :
8150kg
Number of Seats :
3
Chassis Model :
OL11009KARY
MaxSpeed(km/h) :
95
Rated power :
139kw
Max. speed :
95km/h
Chassis brand :
ISUZU
Product name :
8x2kw lighting fire truck
Description

ISUZU Chassis Lighting Fire Truck 4X2 Drive 8 Ton 8X2 kw Lamps ZM50

ZM50 lighting fire truck is a new generation of the fire truck designed and developed independently. The vehicle adopts Isuzu chassis. Equipped with 50 kW high-power vehicle mounted generator ,Italian FIRECO SRL 8× 2kW metal halide lamps and 12m pneumatic lifting pole. The vehicle integrates many functions such as lighting, demolition, power output, etc., with reliable performance, applicable functions, and convenient use.

1. Vehicle

Dimension (L×W×H) 6705×2200×3210mm
Gross weight 8150kg
Complete vehicle shipping mass 3925kg
Electric generator rated power 50kw
Seat (inc. driver) 3
Rated power 139kw

2.Chassis of the lighting fire truck

Manufacturer Isuzu
Model QL11009KARY
Drive type 4x2
Cab Original X-P301
Wheelbase 3815mm
Max. speed 95km/h
Min. turning diameter ＜15
Engine type In-line four-cylinder, high pressure common rail, water inter-cooling
Model 4HK1-TCG40
Max. power 139kw
Max. torque 510N•m
Emission standard China IV
Clutch Diaphragm spring, monolithic, dry, hydraulic power assisted
Gearbox model Manual, 6 forward gear

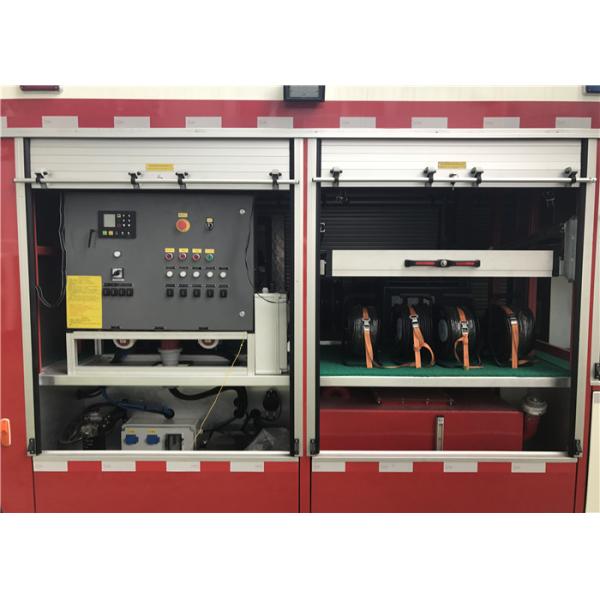

3. Main lighting system of the lighting fire vehicle

50kw electric generator, 2x8kw main lamp, pneumatic lifting poker, holder, controller, air compressor, power distribution system, auxiliary lighting.

Electric generator model ZD50TFY/4
Rated power 50 kw
Rated current 72.2A
Rated speed 1500 r/min
Poles 4
Rated line voltage 400VAC
Rated phase voltage 230VAC
Frequency 50Hz

4. Main lamp of the lighting fire truck

Manufacturer FIRECO SRL
Qty 8
Power 8×2 kW
Voltage 380VAC
Poles 4
Rated line voltage 400VAC
Rated phase voltage 230VAC
Frequency 50Hz
Light source Metal halide lamp
Protection grade IP65
Shell material Toughened glass
Weight 132kg(except ballast, holder)
Lighten time

Cold start: about 10mins

Warm start: immediately

8 Ton Lighting Fire Truck with 8x2 KW Main Lamps

FAQ:

1. Q:Are you a factory or a trade company?

A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.

2. Q:Where is your factory located?

A:We are located in Shanghai Province,China.

3. Q:What's your payment method?

A: T/T and L/C are preferred.

4.Q:Do you arrange shipment for the vehicles?

A:Yes, we can arrange shippment based on trade terms.

5. Q: How is the packing?

A:All the packing comply with exporting standard.

6. Q: What's your main product?

A: Our main product include : water & foam tank trucks, CAFS fire trucks, chemical fire trucks, emergency rescue vehicles, lighting trucks, aerial ladder and platform trucks, airport fire trucks, water tower fire trucks and other general fire trucks. The products have been sold to more than 20 countries.
