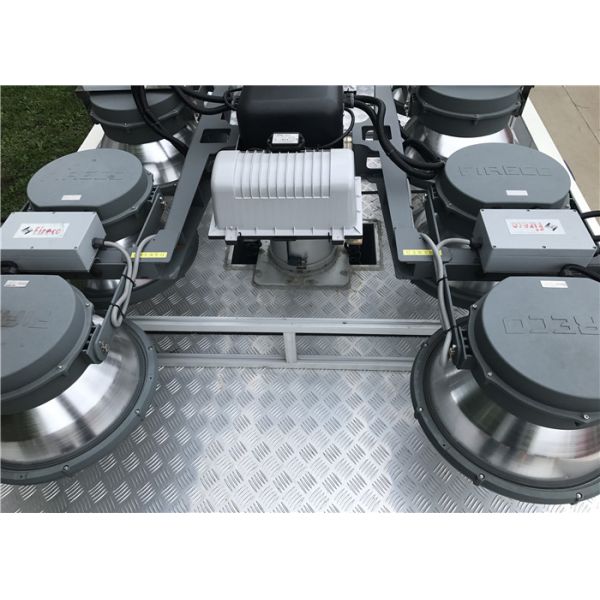

8x2Kw Lights Wireless Control ISUZU Chassis 8 Ton Lighting Fire Truck 4x2 Drive
8x2Kw Lights Wireless Control ISUZU Chassis 8 Ton Lighting Fire Truck 4x2 Drive
8x2Kw Lights Wireless Control ISUZU Chassis 8 Ton Lighting Fire Truck 4x2 Drive
8x2Kw Lights Wireless Control ISUZU Chassis 8 Ton Lighting Fire Truck 4x2 Drive
8x2Kw Lights Wireless Control ISUZU Chassis 8 Ton Lighting Fire Truck 4x2 Drive
8x2Kw Lights Wireless Control ISUZU Chassis 8 Ton Lighting Fire Truck 4x2 Drive
Specifications
Brand Name :
Jindun
Model Number :
JDX5080TXFZM50
Certification :
ISO9001/CCC
Place of Origin :
SHANGHAI,CHINA
MOQ :
1 UNIT
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
90 days after sign contract
Supply Ability :
350 units/year
Packaging Details :
Exporting standard package or customized packing
Chassis brand :
ISUZU
Chassis Model :
OL11009KARY
Dimension :
6705×2200×3210mm
Number of Seats :
3
Generator Model :
STC-50
MaxSpeed :
95 km/h
Rated power :
139kw
Product name :
8x2kw Lighting fire truck
Description

8x2Kw Lights Wireless Control ISUZU Chassis 8 Ton Lighting Fire Truck 4x2 Drive


Vehicle

Dimension (L×W×H) 6705×2200×3210mm
Gross weight 8150kg
Complete vehicle shipping mass 3925kg
Electric generator rated power 50kw
Seat (inc. driver) 3
Rated power 139kw

Chassis

Manufacturer Isuzu
Model QL11009KARY
Drive type 4x2
Cab Original X-P301
Wheelbase 3815mm
Max. speed 95km/h
Min. turning diameter ＜15
Engine type In-line four-cylinder, high pressure common rail, water inter-cooling
Model 4HK1-TCG40
Max. power 139kw
Max. torque 510N•m
Emission standard China IV
Clutch Diaphragm spring, monolithic, dry, hydraulic power assisted
Gearbox model Manual, 6 forward gear

Onboard equipments

Item Description Qty
1 2kg dry powder extinguisher 1
2 Wheel chock block 2
3 triangle warning board 1
4 chassis onboard tools original
5 Fire axe 1
6 Spade 1
7 Crowbar 1

Painting

Red paint: cab, body (shutter doors, except decorative strip)

White: wheel fender

Onboard document

  1. Vehicle operation and maintenance manual
  2. Chassis operating manual
  3. Chassis operation and maintenance manual
  4. Chassis quality warranty card
  5. Chassis certificate, vehicle certificate, 3C logo
  6. Engine code copy
  7. Chassis code copy
  8. Onboard equipment list
  9. Follow-up service card
  10. Hand-over list

8x2Kw Lights Wireless Control ISUZU Chassis 8 Ton Lighting Fire Truck 4x2 Drive
