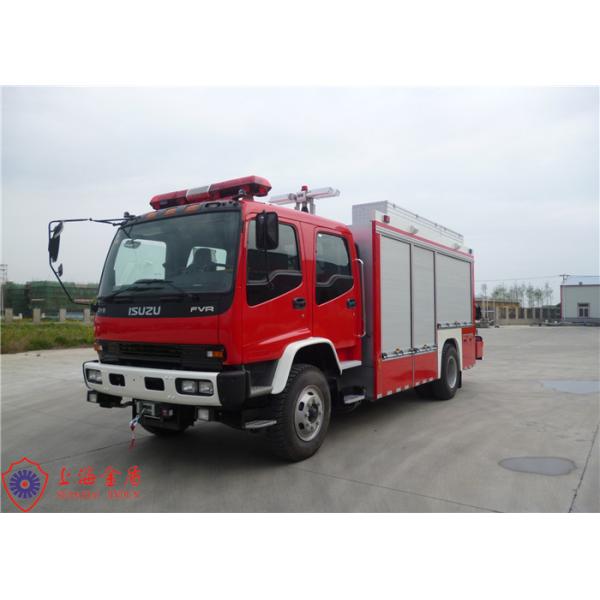

ISUZU Chassis Emergency Rescue Fire Truck Mounted Crane on Rear Traction Rope Length 28M

JDX5130TXFJY98 rescue fire truck adopts ISUZU QL1160AMFRY chassis, equipped with a 4X1000W lighting system, Honda ET12000 generator, Finland HIAB 111 B-2CLX cranes and emergency lighting equipment, vehicle structure and reasonable layout, convenient operation and maintenance, applicable to large and medium city public security fire brigade, petrochemical enterprises and airport fire brigade for emergency vehicle. Its shape, structure , the performance of the maintenance system to achieve the level of similar imported vehicles and life expectancy.

1. Fire Vehicle specification

1.Dimensions: length x width x height 8340×2460×3380

2.The full authorized total mass(kg): 13000kg

3.Vehicle kerb mass(kg): 12550kg

4.The number of rescue equipment(pieces): 98

5.Crew number(including driver)(person): 6

6.Maximum power(kW/hp): 177/240

2. Fire truck Chassis:

3. Fire truck ift lighting system:

Lift lighting electrical system by 13KW Honda generator, 4.0kW main lighting, 2X0.5KW mobile lighting lamps, raised about 8m (off) the pneumatic lift system, electrical control cabinet and other components.

4. Fire truck Generator:

Model: Gasoline generator ET12000 (Honda power)

Rated output power(kVA): 10(Three-phase),2.7kVA×3(Single-phase)

Maximum output power(kVA): 11(Three-phase),3.0kVA×3(Single-phase)

Power factor: 0.8

Voltage(V): 380/220

Electric current(A): 11.6A×3(Single-phase),14.4A

Frequency(HZ): 50

Fuel: Gasoline

Continuous working time(hr): 6.5

Lifting lighting system:

Manufacturer: Zhejiang SENKEN

Model: SG 65-41000G

Lifting height: 6.5M

AGL: ≥7.6m

Control system voltage: DC24V

Lamp voltage: 220V

Lamp power: 4 × 1000W

Lamps horizontal rotation angle: 380 °

Lamps vertical rotation angle: 330 °

Lamp luminous flux: 220000lm

5. fire truck traction system (right)

Manufacturer: American Champion

Model N12000

Voltage (V) 24

The largest single rope traction (Kg) 5443

Traction rope length 28M

Traction rope diameter 9.5mm

Installation position at the front bumper (right)

6. fire truckTruck Cranes

Manufacturer: Finland (HIAB) Company

Model HIAB 111 B-2CLX type

Lifting capacity: 9.9tm

Rotary torque: 14.1KN.m

Rotation angle: 406 ° (rear side of safe operating range 180 °)

Outrigger span: 4.8 m

Crane weight: 1480 kg
