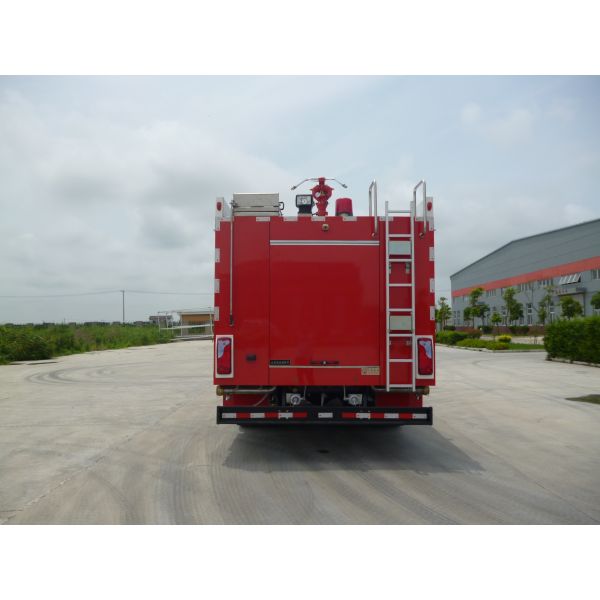

4X2 Drive Road and Rail Two Functions CAFS Compressed Air Foam System Fire Truck
4X2 Drive Road and Rail Two Functions CAFS Compressed Air Foam System Fire Truck
4X2 Drive Road and Rail Two Functions CAFS Compressed Air Foam System Fire Truck
4X2 Drive Road and Rail Two Functions CAFS Compressed Air Foam System Fire Truck
Specifications
Brand Name :
Jindun
Model Number :
JDX5180GXFAP12/MLG
Certification :
ISO9001, CCC
Place of Origin :
Shanghai,China
MOQ :
1 unit
Price :
Factory price, negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
350 units/year
Delivery Time :
90 days after sign contract
Packaging Details :
Exporting standard package or customized packing
Size :
9850×2500×3200 mm
Max. speed :
Road: 90km/h; Rail: 30km/h
Tread :
Front:1990，Rear:1804
Wheelbase :
5100mm
Max. power :
265kW/360hp @1900rpm
Seats :
6
Drive type :
4x2
Product name :
CAFS fire truck, Compressed Air Foam System fire truck
Description

CAFS compressed air foam system fire truck imported chassis road and rail 4X2 drive

Compressed air foam systems (CAFS) are, without a doubt, the most significant innovation in fire suppression technology since the horse-drawn pumper. It has changed the way fires are attacked, how quickly fires can be extinguished and vastly limits the damage that fires can inflict. No one understands this better and pushes the potential of CAFS further than Waterous. For 15 plus years, Waterous has led the charge in CAFS deployment and development worldwide.

The vehicle

Max. speed Road: 90km/h(electronic speed limit) Rail: 30km/h
Min. turning diameter road:18m ,Rail: 100m
Approach angle 19°
Departure angle 10°
Seat Cab: 2 Compartment:8

Compressed air foam system
brand Darley
Mix proportion
  1. ～1%
Dry-wet adjuster Supply dry/wet compressed air foam, max. gas-water ratio up to 20:1
Max. air flow 4000L/min
Operation Separate operating display in pump room and cab, all data was preestablished.
Self-protective system Sprayer set on the front and side of the vehicle, control in the cab, total rate ＞60L/min

Rail system performance

Max. speed Km/h 30
Lifting time on rail S ≤60
Fold time of rail wheel S ≤60
0-30km/h Acceleration time s ≤30
0-30km/h Acceleration distance m ≤160
30-0km/h Braking time s ≤8
30-0km/h Braking length m ≤80

Mension data

Overall mm 9850×2500×3200
Front overhang mm 1500
Wheel base mm 5100
Rear overhang mm 2750
Front Protraction mm 500
Tread mm Front:1990 Rear:1804

4X2 Drive Road and Rail Two Functions CAFS Compressed Air Foam System Fire Truck

FAQ:

1. Q:Are you a factory or a trade company?

A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.

2. Q:Where is your factory located?

A:We are located in Shanghai Province,China.

3. Q:What's your payment method?

A: T/T and L/C are preferred.

4.Q:Do you arrange shipment for the vehicles?

A:Yes, we can arrange shippment based on trade terms.

5. Q: How is the packing?

A:All the packing comply with exporting standard.

6. Q: What's your main product?

A: Our main product include : water & foam tank trucks, CAFS fire trucks, chemical fire trucks, emergency rescue vehicles, lighting trucks, aerial ladder and platform trucks, airport fire trucks, water tower fire trucks and other general fire trucks. The products have been sold to more than 20 countries.

Any other questions, please do not hesitate to contact with us.
