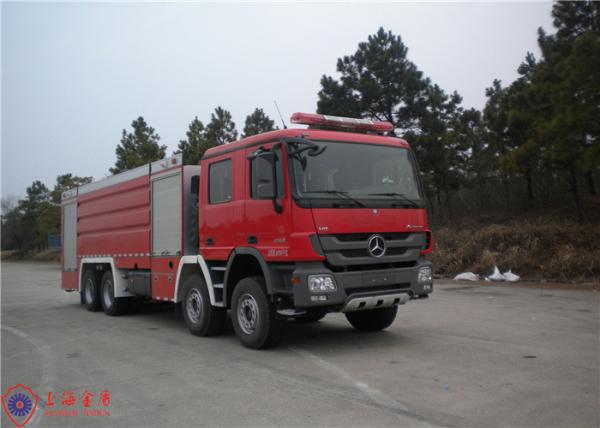

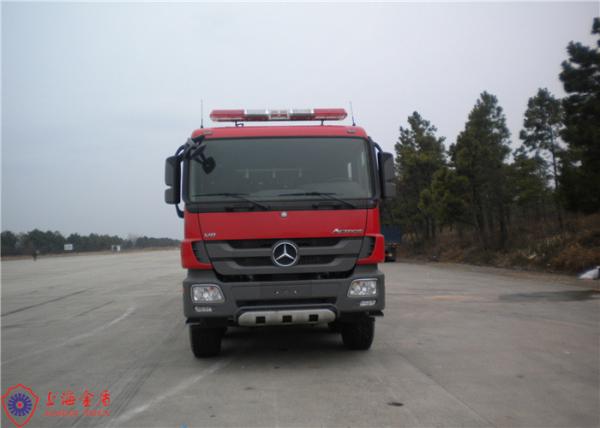

Mercedes Chassis Foam Fire Fighting Vehicles Monitor Flow 100L/S Tiltable Cabin
Mercedes Chassis Foam Fire Fighting Vehicles Monitor Flow 100L/S Tiltable Cabin
Mercedes Chassis Foam Fire Fighting Vehicles Monitor Flow 100L/S Tiltable Cabin
Mercedes Chassis Foam Fire Fighting Vehicles Monitor Flow 100L/S Tiltable Cabin
Specifications
Brand Name :
CIMC Jindun
Model Number :
JDX5390GXFPM200/B
Certification :
ISO9001/CCC
Place of Origin :
shanghai,China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300 units/year
Delivery Time :
90 days after sign contract
Packaging Details :
Exporting standard package or customized packing
Chassis brand :
Mercedes Benz
Size :
11425×2500×3860mm
G.V.W (kg) :
39250kg
Max. speed :
100km/h
Drive type :
8x4
seat :
6
Cab structure :
Double rows cab
Product name :
Foam fire fighting vehicles
Description

Mercedes Chassis Foam Fire Fighting Vehicles Monitor Flow 100L/S Tiltable Cabin


Vehicle

Dimension (L×W×H) 11425×2500×3860mm
Gross weight 39250kg
Complete vehicle shipping mass 19100kg
Seat (inc. driver) 6
Max. power 440kw

Chassis

Manufacturer Diamler
Model Actros4160
Drive type 8x4
Cab double row, overturning type
Wheelbase 1700+4300+1350mm
Max. speed 100km/h
Min. turning diameter <27m
Approach angle 29°
Departure angle 11°
Engine type V type eight-cylinder, pressure combustion, four-stroke, inter-cooling.
Model OM502LA.IV/3
Max. power 440kw
Max. torque 2800N•m
Emission standard China IV/Euro IV
Clutch Monolithic, dry
Gearbox model Manual, 16 forward gear
Tyre

4x 385/65R22.5

8x 315/80R22.5

Cab

Structure Double row
Seat 2+4
Equipment Except the original equipments. There is a storage box with cover under the seat, embedded 4x9L air breathing apparatus fixed mount in the seats

Electrical system

The main lights in the cab at the top of the long row of lights, configure the 100W alarm control system;

A strobe lights installed on both sides and the middle of each compartment (two red and blue).

Painting

Red paint: cab, body (shutter doors, except decorative strip)

Other : according to customers requirements

Mercedes Chassis Foam Fire Fighting Vehicles Monitor Flow 100L/S Tiltable Cabin
