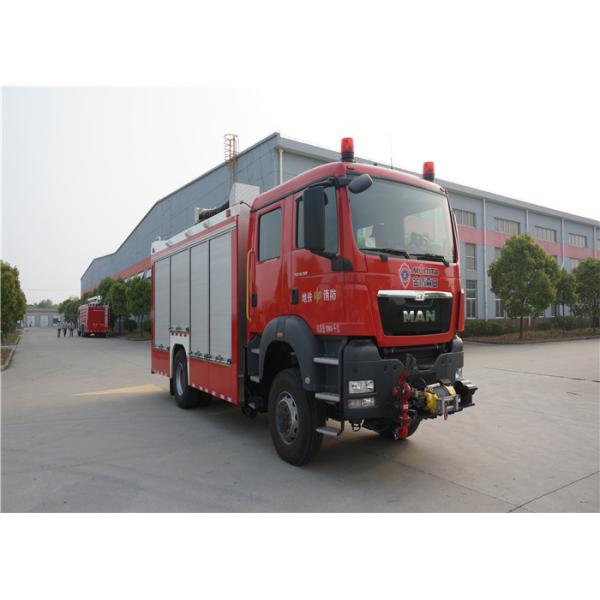

MAN Chassis 4x2 Drive Road and Rail Bifunction Fire Engine Fire Fighting Trcuk
MAN Chassis 4x2 Drive Road and Rail Bifunction Fire Engine Fire Fighting Trcuk
MAN Chassis 4x2 Drive Road and Rail Bifunction Fire Engine Fire Fighting Trcuk
MAN Chassis 4x2 Drive Road and Rail Bifunction Fire Engine Fire Fighting Trcuk
Specifications
Brand Name :
CIMC Jindun
Model Number :
JDX5180GXFAP12/MLG
Certification :
ISO9001/CCC
Place of Origin :
shanghai,China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
350 units/year
Delivery Time :
90 days after sign contract
Packaging Details :
Nude packing
Chassis brand :
MAN
G.V.W :
38650kg
Max speed on road :
90km/h(electronic speed limit)
Max speed on rail :
30km/h
Drive type :
4x2
seats :
2
Wheel base :
5100mm
Max. power :
265kW/360hp @1900rpm
Product name :
Road and rail bifunction fire fighting truck
Description

MAN Chassis 4x2 Drive Road and Rail Bifunction Fire Engine Fire Fighting Trcuk

The vehicle

Max. speed Road: 90km/h(electronic speed limit) Rail: 30km/h
Min. turning diameter 18m Rail: 100m
Approach angle 19°
Departure angle 10°
Seat Cab: 2 Compartment:8

Chassis

Model TGS18.360
Manufacturer MAN
Cab TGSM standard cab
Seat 6
Driver’s seat Comfortable air springs seat
Copilot’s seat Single adjustable seat
Air-condition Automatic temperature control system(R134A refrigerant, Freon-free)
Car window Electric window
Rearview mirror Electric heating

Overall dimensions

Overall mm 9850×2500×3200
Front overhang mm 1500
Wheel base mm 5100
Rear overhang mm 2750
Front Protraction mm 500
Tread mm Front:1990 Rear:1804

Rail system performance

Max. speed Km/h 30
Lifting time on rail S ≤60
Fold time of rail wheel S ≤60
0-30km/h Acceleration time s ≤30
0-30km/h Acceleration distance m ≤160
30-0km/h Braking time s ≤8
30-0km/h Braking length m ≤80

Onboard accessory documents.

Vehicle maintenance manual (Chinese)

Chassis operation instruction (Chinese)

Chassis warranty card

Chassis certification, Vehicle certification, 3C Logo

Engine number copy

Chassis number copy

Onboard equipment list

Fire vehicle follow-up service card

List of delivery order and receipt

MAN Chassis 4x2 Drive Road and Rail Bifunction Fire Engine Fire Fighting Trcuk

FAQ

1. Q: Why should we choose you ?

A: a. We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting.

b. We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur.

c. We have our own R&D team, production workshop, QC management team,international marketing team and after service team.

2. Q:What's the delivery time?

A: a. 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.

b. ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.

c. European brand chassis 9 months upon receipt of advance deposit.

3. Q:What's your payment method?

A: T/T and L/C are preferred.

4.Q:Do you arrange shipment for the vehicles?

A:Yes, we can arrange shippment based on trade terms.

5. Q: How is the packing?

A:All the packing comply with exporting standard.

Any other questions, please do not hesitate to contact with us.
