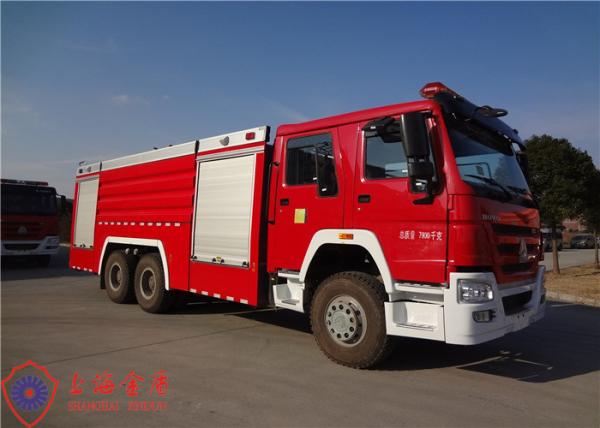

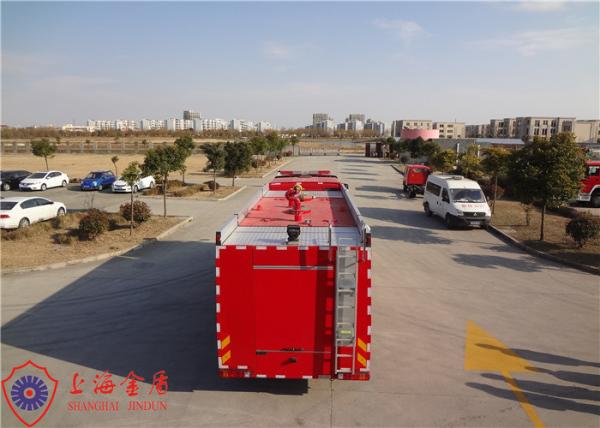

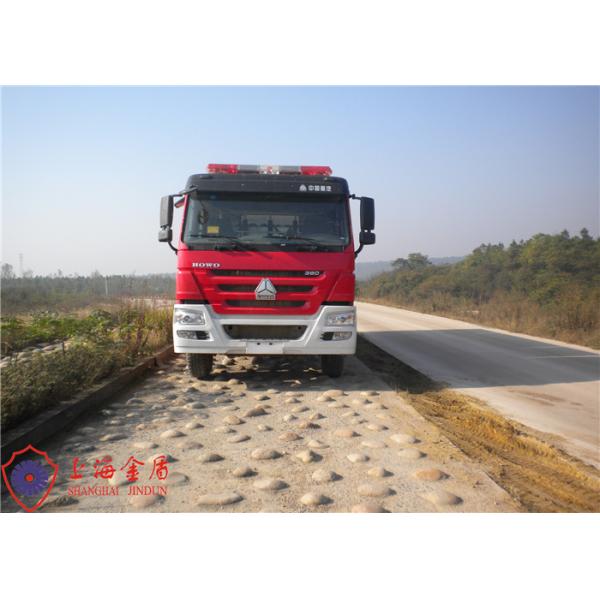

Six Seats China Chassis 6x4 Drive Departure Angle 12 Degree Foam Fire Truck
Six Seats China Chassis 6x4 Drive Departure Angle 12 Degree Foam Fire Truck
Six Seats China Chassis 6x4 Drive Departure Angle 12 Degree Foam Fire Truck
Six Seats China Chassis 6x4 Drive Departure Angle 12 Degree Foam Fire Truck
Specifications
Brand Name :
Jindun
Model Number :
JDX5280GXFPM120/H
Certification :
ISO9001,CCC
Place of Origin :
shanghai China
MOQ :
1 unit
Price :
Factory price, negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
90 days after sign contract
Supply Ability :
350 units/year
Packaging Details :
Nude packing
Chassis brand :
Sinotruk Howo
Dimension :
9920×2500×3600mm
Color :
Customized
Gross weight :
27550kg
shipping mass :
14900kg
Seat (inc. driver) :
6
Drive type :
6x4
Wheelbase :
4325+1350mm
Product name :
China chassis foam fire truck
Description

Six Seats China Chassis 6x4 Drive Departure Angle 12 Degree Foam Fire Truck 27 Ton Huge Capacity

Vehicle

Dimension (L×W×H) 9920×2500×3600mm
Gross weight 27550kg
Complete vehicle shipping mass 14900kg
Seat (inc. driver) 6
Max. power 276kw

Chassis

Manufacturer Sinotruk HOWO
Model ZZ5347V4347D5
Drive type 6x4
Cab Flattop metal forward turnover
Wheelbase 4325+1350mm
Max. speed 90km/h
Min. turning diameter <22m
Approach angle 16°
Departure angle 12°
Engine type In-line six-cylinder, water inter-cooling, direct injection diesel engine
Model D10.38—40
Max. power 276kw
Max. torque 1560N•m
Emission standard China IV
Clutch Pull, dry
Gearbox model Manual, 9 forward gear
Tyre 12.00R20/10

Fire monitor

Model Elkhart, Vulcan 8500-02
Position Rear roof
Flow 80L/s
Pressure 1.0MPa
Range water≥75m ,foam≥70m
Rotation angle

Level ≥360°

Max. elevation angle ≥+45°

Max. depression angle ≥-7°

Pedal plate

Location: At the bottom of roller shutter door.

Material: Steel frame covered by aluminum alloy checkered plate.

Structure: adopt the gas springs plus shutter fasten, safe and reliable, each petal plate bearing ≥150Kg.


Six Seats China Chassis 6x4 Drive Departure Angle 12 Degree Foam Fire Truck

FAQ

1. Q: Why should we choose you ?

A: a. We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting.

b. We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur.

c. We have our own R&D team, production workshop, QC management team,international marketing team and after service team.

2. Q:What's the delivery time?

A: a. 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.

b. ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.

c. European brand chassis 9 months upon receipt of advance deposit.

3. Q:What's your payment method?

A: T/T and L/C are preferred.

4.Q:Do you arrange shipment for the vehicles?

A:Yes, we can arrange shippment based on trade terms.

5. Q: How is the packing?

A:All the packing comply with exporting standard.

Any other questions, please do not hesitate to contact with us.
