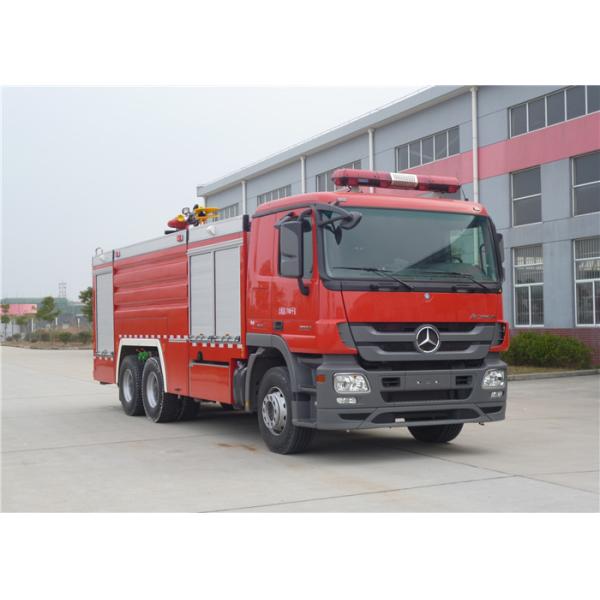

Manual Operation Fire Fighting Truck Max Speed 95KM/H with Diesel Fire Pump
Manual Operation Fire Fighting Truck Max Speed 95KM/H with Diesel Fire Pump
Manual Operation Fire Fighting Truck Max Speed 95KM/H with Diesel Fire Pump
Manual Operation Fire Fighting Truck Max Speed 95KM/H with Diesel Fire Pump
Specifications
Brand Name :
Mercedes Benz
Model Number :
JDX5280GXFPM120/B
Certification :
ISO9001,CCC
Place of Origin :
SHANGHAI,CHINA
MOQ :
1 unit
Price :
Factory price, Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300 units/year
Delivery Time :
90 days after sign contract
Packaging Details :
Nude packing
Size :
9690x2500x3280 mm
GVW :
28000KG
Seats :
Two, include driver
Max. power :
265kw
Max. speed :
95km/h
Cab :
Manual operation hydraulic forward turnover
Throw range :
Water≥75m ,foam≥70m
Key words :
Fire truck with diesel fire pump
Product name :
Manual control fire fighting truck
Description

Manual Operation Fire Fighting Truck Max Speed 95KM/H with Diesel Fire Pump


Fire fighting Vehicle

Dimension (L×W×H) 9720×2500×3700mm
Gross weight 28000kg
Complete vehicle shipping mass 15350kg
Seat (inc. driver) 2
Max. power 265kw

Fire monitor for fire fighting truck

Model POK, PLC6000
Position Rear roof
Flow 80L/s
Pressure 1.0MPa
Range water≥75m ,foam≥70m
Rotation angle

Level ≥270°

Max. elevation angle ≥+45°

Max. depression angle ≥-7°

Chassis for fire fighting truck

Manufacturer Daimler
Model Actros3336
Drive type 6x4
Cab Manual operation hydraulic forward turnover
Wheelbase 4500+1350mm
Max. total mass 18000kg
Max. speed 95km/h
Min. turning diameter <21m
Approach angle 17°
Departure angle 13°
Engine type V type six-cylinder, inter-cooling, electronic unit pump diesel engine
Model OM501LA.IV/2
Max. power 265kw
Max. torque 1850N•m
Emission standard China IV/ Euro IV
Clutch Monolithic, dry
Gearbox model Manual 16 forward gear

Pedal plate for fire fighting truck

Location: At the bottom of roller shutter door.

Material: Steel frame covered by aluminum alloy checkered plate.

Structure: adopt the gas springs plus shutter fasten, safe and reliable, each petal plate bearing ≥150Kg.

Manual Operation Fire Fighting Truck Max Speed 95KM/H with Diesel Fire Pump

FAQ

1, Q: Why should we choose you ?
A: We are professional manufacture located in Shanghai city for firefighting trucks
products which nearby Pudong International Airport, is easily for customer coming
and visiting.
B: We can export directly to overseas customer, no need to deal with trading company
and the second price increase will not occur
C: We have our own R&D team, production workshop, QC management team,
international marketing team and after service team.
D: We will provide the most professional and the best service on every business
discussion and operation procedure.
E: We can provide special design for different specification requirement according to
different orders or tender documents.
G: We have jointed ventures with Morita for 4 years, so the technology, design and
quality are same with Morita.
H: We have collaboration with various top enterprises of fire protection sector, Such as
Darley, Rosenbauer, HALE, AKRON, Ekhart, etc.
I: Our Certifications: ISO, TUV, CCCF, SONCAP, CNAS, SGS,MH /T5002-9, MEP, CQC.
2, Q: What's your Payment method?
A: T/T 30% deposit, balance will be paid by T/T before delivery
B: 100% L/C before start production
3, Q: What logistics ways we can work for shipment?
A:We can ship fire trucks by various transportation tools
B:We will go by sea to all main continents such as South America, Middle East, Africa,
Oceania and Europe etc.
C:Also we can ship trucks by road or railway to the neighborhood countries of China such
as Russia, Mongolia, Kazakhstan, Uzbekistan etc.
