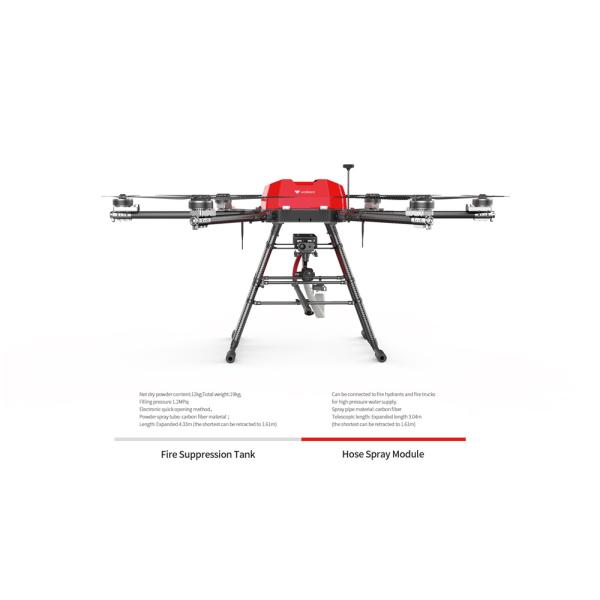

7.86 Inch Screen Remote Controller 7.4V Fire Fighting Drone
7.86 Inch Screen Remote Controller 7.4V Fire Fighting Drone
7.86 Inch Screen Remote Controller 7.4V Fire Fighting Drone
7.86 Inch Screen Remote Controller 7.4V Fire Fighting Drone
Specifications
Brand Name :
JD
Model Number :
JD2000
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
USD
Supply Ability :
500 UNITS PER YEAR
Delivery Time :
2 MONTHS
Packaging Details :
AS EXPORT STANDARD PACKAGE
motor wheelbase :
1900mm
Overall dimension :
1800x2070x1050
Blade size :
(34 *11.2) inch
weight of Blade :
160g
Drone weight :
19kg
Max take-off weight :
54 kg(Max)
Standard take-off weight :
34 kg
Positioning mode :
5m/s
Movement mode :
10m/s
Cruise mode :
10m/s
Description

7.86 Inch Screen Remote Controller Fire-Fighting Drone 7.4V Working Voltage

1. Gimbal

Input voltage: 12V

Size: 136 * 98 * 139 mm

Weight: 452g

Stabilizing system: 3-axis (pitch, roll, yaw)

Angle control accuracy: static: ±0.008°; Dynamic: + / - 0.02 °; Stabilization: + / - 0.008 °

Controllable rotation range: pitch: -110° to +60°; Level: + 150 °; Roll: plus or minus 10 °

Maximum control speed: pitch: 30°/s°; Level: 30 ° / s; Roll: direct Angle control

Operating frequency: 5725MHz to 5850MHz

2400 MHz to 2483.5 MHz

Maximum image transmission distance: 6KM (open without shielding and electromagnetic interference)

Modulation mode: OFDM and MIMO

Video code: H.264

Definition: 1080p 30 downward compatible

2. LIDAR ranging obstacle avoidance

Distance measuring range:100m

Range of obstacle perception: 8m

FOV : Level 20 ° and 3 ° vertically

Measuring frequency: 10 KHZ

3. Balance Charger

AC input: 200-240V

Charging power: 1260W(630W*2)

Discharge power: 100W (50W x 2)

Charging current range: 1.0-12.0 A x 2

Discharge current: 2.0 A*2

Balanced current: 1.0-1.5A

Types of rechargeable batteries: lithium battery (LiPo)/high voltage lithium battery (LiHV)

Number of lithium batteries: 12 Cells x 2

Charging Mode: Fast Charging, Precise Charging, Battery Storage

7.86 Inch Screen Remote Controller 7.4V Fire Fighting Drone
