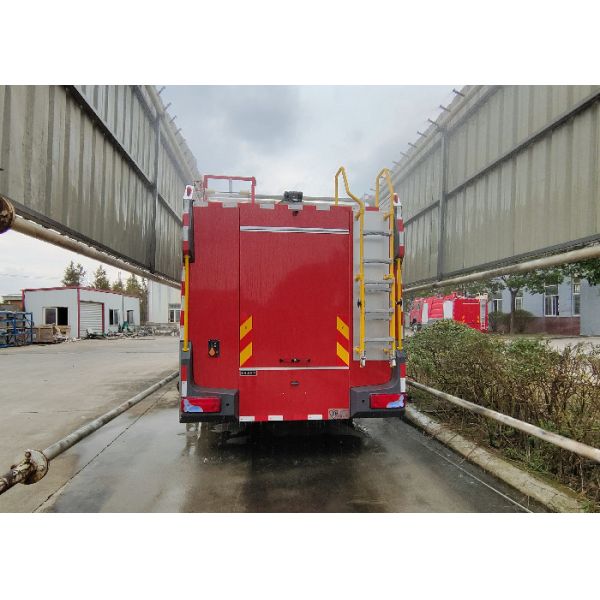

Euro 3 Emission standard 15ton Water And Foam Fire Truck Gross Weight 33000kg
Euro 3 Emission standard 15ton Water And Foam Fire Truck Gross Weight 33000kg
Euro 3 Emission standard 15ton Water And Foam Fire Truck Gross Weight 33000kg
Euro 3 Emission standard 15ton Water And Foam Fire Truck Gross Weight 33000kg
Specifications
Brand Name :
Jindun
Model Number :
PM150M
Certification :
ISO9001/CCC
Place of Origin :
SHANGHAI,CHINA
MOQ :
1 UNIT
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
90 days after sign contract
Supply Ability :
350 units/year
Packaging Details :
Exporting standard package or customized packing
Water volume :
10000L
Foam volume :
2000L
Fire monitor :
Rosenbauer brand
Monitor flow :
90L/s
Priming time :
≤80s
Pressure :
1.0MPa
Material :
High quality 304 stainless steel
Foam mixer :
3% or 6%
Product name :
15 tons water and foam fire truck
Description

Euro 3 Emission standard 15ton Water And Foam Fire Truck Gross Weight 33000kg

Euro 3 Emission standard 15ton Water And Foam Fire Truck Gross Weight 33000kg

Pipeline

Outlet pipeline

2×DN80 ordinary pressure outlet

1×DN50 ball valve
Suction inlet

1×DN150 suction coupling

1×DN150 pneumatic butterfly valve
Monitor pipeline

1×DN125 monitor pipeline

1×DN125 butterfly valve
Residual water outlet Water cock
Pump drive system NMV200
Drive shaft High balance precision

Liquid tank

Capacity Water: 10000kg Foam: 2000kg
Material 304 high quality corrosion resistant plate
Structure Total side girder
Pressure 1.0MPa
Device

2 manhole

1 overflow device

2 liquid level sensor

2 DN50 drain outlet with valve

4 filling pipe end

Conform to rule GA39.4-92

Dry powder tank

Dry powder filling capacity: 500Kg

Working pressure: 1.2 ~ 1.4MPa

Dry powder tank is a pressure vessel which is mainly welded by Q345R material. It is made of feeding powder port, discharging powder port, nitrogen delivery pipe and discharge powder tube, tank nitrogen delivery pipe is a ring shape which is equipped with multiple intake valves, so that gas and powder can mixing uniformly, with fluidized state. The design of intake valve makes dry powder be inaccessible to nitrogen gas delivery pipe.

All cylinders are placed in a bottle rack to supply gas for dry powder tank. Nitrogen cylinder group is consisting of nitrogen cylinder, bottle valve, high pressure gauge, air inflation connection, high pressure ball valves and other components.
