30 Pieces Rescue Equipment Emergency Rescue Fire Truck 5 Person 4425mm Wheelbase
30 Pieces Rescue Equipment Emergency Rescue Fire Truck 5 Person 4425mm Wheelbase
30 Pieces Rescue Equipment Emergency Rescue Fire Truck 5 Person 4425mm Wheelbase
30 Pieces Rescue Equipment Emergency Rescue Fire Truck 5 Person 4425mm Wheelbase
Specifications
Brand Name :
CIMC Jindun
Model Number :
JY30
Certification :
ISO9001,CCC
Place of Origin :
shanghai China
MOQ :
1 unit
Price :
Factory price, negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300 units/year
Delivery Time :
150 days
Packaging Details :
roll roll
Dimensions :
6705×2200×3210mm
Full load mass :
18000kg
crew cab :
5
Drive type :
4x2
Max. speed :
96Km/h
Wheelbase :
4425mm
Engine :
213 kW
Voltage :
380VAC
Product name :
Emergency rescue fire vehicle
Description

30 Pieces Rescue Equipment Emergency Rescue Fire Truck 5 Person 4425mm Wheelbase

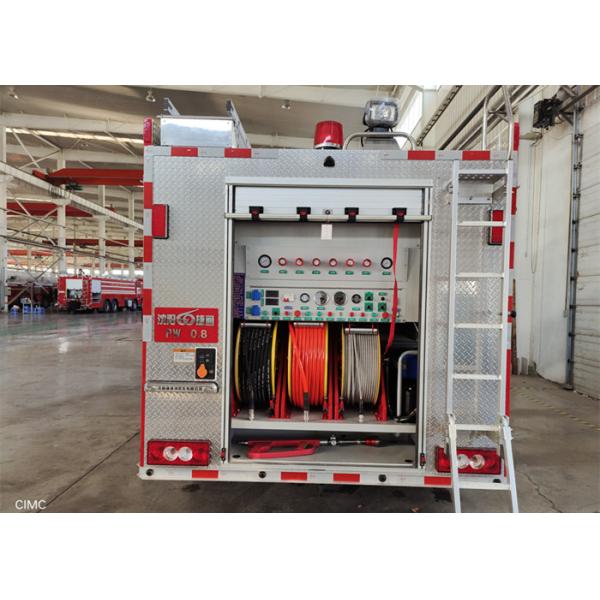

The vehicle is equipped with various fire rescue equipment, special protective equipment for firefighters, fire breaking tools and fire detector, which is a dedicated fire truck for emergency rescue.

Traction system

Model M12000
Manufacturer Warn
Winch cable max. length ≥38m
Voltage 24V
Winch cable diameter 9.5m
Winch max. pull 5440kg
Position Front bumper

Chassis

Manufacturer MAN
Model TGM 18.290
Drive type 4x2
Cab Crew cab
Wheelbase 4425mm
Max. total mass 18000kg
Max. speed 96km/h
Min. turning diameter <15.6m
Engine type In-line six-cylinder, inter-cooling, high pressure common rail, electronic control
Model D0836LFL30
Max. power 213kw
Max. torque 1150N.M
Emission standard China IV
Gearbox model ZF 9S-1310 OD Manual

Lift lighting system

Manufacturer American WB imported with original packaging
Model NS6.4-20-4000
Above ground level 8m
Classification of wind resistance 110km/h(China level 11)
Lamps specification Quartz halogen lamp
Lifter material Maraging 6061 T6
Lamps power 4×1000w
Lamps horizontal rotating angle 360°
Lamps vertical rotating angle 360°
Lighting life ≥2000 hours
Illumination ≥86000lx
Contraction time ≤60S
Warranty period 2 years
Remote control type Drive by wire
Specialty Master reset function

30 Pieces Rescue Equipment Emergency Rescue Fire Truck 5 Person 4425mm Wheelbase
