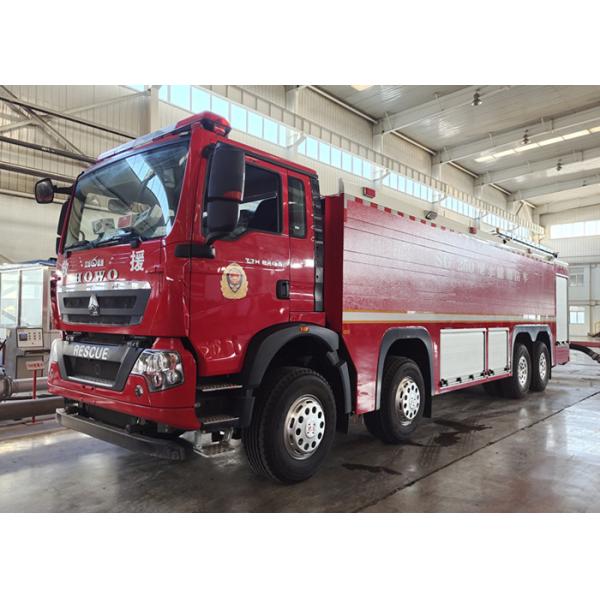

Chinese Chassis 6×4 Drive 276kw Engine Motorized Water Tanker Fire Truck
Chinese Chassis 6×4 Drive 276kw Engine Motorized Water Tanker Fire Truck
Chinese Chassis 6×4 Drive 276kw Engine Motorized Water Tanker Fire Truck
Chinese Chassis 6×4 Drive 276kw Engine Motorized Water Tanker Fire Truck
Specifications
Brand Name :
CIMC Jindun
Model Number :
SG150
Certification :
ISO9001,CCC
Place of Origin :
Shanghai,china
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300 units/year
Delivery Time :
120 days
Packaging Details :
Exporting standard package or customized packing
Chassis brand :
SINOTRUK HOWO or MAN (optional )
Dimension :
10135×2500×3500mm
Gross weight :
31800kg
working height :
25m
Max power :
276 kw
Seat :
2+4
Driving :
6×4
Water :
18550L
Foam :
4000L
Product name :
6x4 water tanker fire truck
Description

Chinese Chassis 6×4 Drive 276kw Engine Motorized Water Tanker Fire Truck



Vehicle

Dimension (L×W×H) 10135×2500×3500mm
Gross weight 31800kg
Complete vehicle shipping mass 15600kg
Seat (inc. driver) 6
Max. power 276kw

Cab

Structure Double row, four-door, lengthen cab
Seat 2+4
Equipment Except the original equipments. There is a storage box with cover under the seat, embedded 4x9L air breathing apparatus fixed mount in the seats

Pipeline

Outlet pipeline

4×DN80 ordinary pressure outlet

1×DN50 ball valve
Suction inlet

1×DN150 suction coupling

1×DN150 valve
Monitor pipeline

1×DN125 monitor pipeline

1×DN125 butterfly valve
Residual water outlet Water cock
Cooling water pipeline The PTO equipped with a cooling water pipeline connected with the in-outlet pipeline.

Fire monitor

Model Weisite PL64
Position Rear roof
Flow 64L/s
Pressure 1.0MPa
Range water≥70m ,foam≥60m
Rotation angle

Level ≥270°

Max. elevation angle ≥+45°

Max. depression angle ≥-7°

Pedal plate

Location: At the bottom of roller shutter door.

Material: Steel frame covered by aluminum alloy checkered plate.

Structure: adopt the gas springs plus shutter fasten, safe and reliable, each petal plate bearing ≥150Kg.

Chinese Chassis 6×4 Drive 276kw Engine Motorized Water Tanker Fire Truck

Chinese Chassis 6×4 Drive 276kw Engine Motorized Water Tanker Fire Truck
