Industrial 206kw Water Foam Fire Truck Double Cabin Howo Chassis 4×2 Drive
Industrial 206kw Water Foam Fire Truck Double Cabin Howo Chassis 4×2 Drive
Industrial 206kw Water Foam Fire Truck Double Cabin Howo Chassis 4×2 Drive
Industrial 206kw Water Foam Fire Truck Double Cabin Howo Chassis 4×2 Drive
Specifications
Brand Name :
Jindun
Model Number :
PM80
Certification :
ISO9001,CCCF, TUV, SGS, SCONCAP, PC
Place of Origin :
Shanghai,China
MOQ :
1 unit
Price :
Factory price, Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
800 units per year
Delivery Time :
90 days after sign contract
Packaging Details :
Exporting standard package or customized packing
Dimension :
8475×2500×3400 mm
Drive type :
4×2
Chassis brand :
Sinotruk Howo
Seats :
2+4
Water capacity :
6000L
Foam capacity :
2000L
Fire pump :
Normal pressure pump
Max power :
206 kw
Product name :
Water Foam Fire Fighting Truck
Description

Industrial 206kw Water Foam Fire Truck Double Cabin Howo Chassis 4×2 Drive

PM80 foam fire Truck is modified from SINOTRUK 2nd class chassis. The vehicle layout is reasonable. Equipment compartment,liquid tank and pump room are split structured.Structure is compact and convenient to operate and maintenance.

The fire vehicle loaded with huge capacity of extinguishant and with fast speed. It's widely used in petrochemical enterprises, oil dock, oil depot, airports and large and medium-sized cities' fire brigade.

Main configuration

Whole vehicle Dimensions 8475×2500×3400 (mm)
　 Full load permissible weight 19000 kg
　 Vehicle total weight 11600 kg
　 Fire-extinguishing agents water+foam:8000 kg
　 Max. Power (kw/hp) 206kw

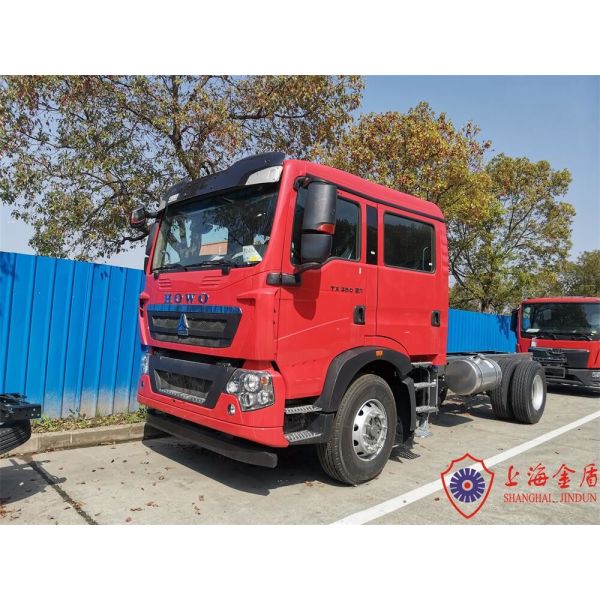

Chassis Manufacturer HOWO chassis
　 Drive type 4x2
　 Cab double cabin (1+1+4)
　 Wheelbase 4600mm
　 Clutch pull type diaphragm
Fire pump Manufacturer China local brand
　 Model PL48
　 Flow 60L/s
　 Pressure 1.0MPa
Tank Capacity Water: 6000kg, foam:2000kg
　 Material high quality stainless steel

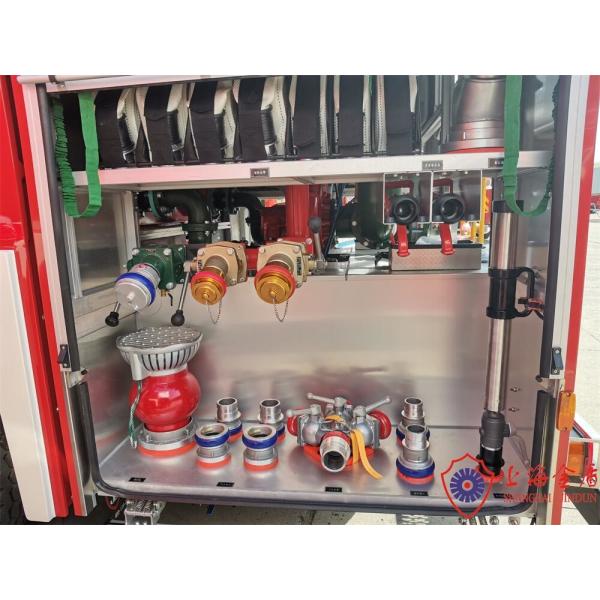

Equipment tank

Material Q235A high quality steel
Structure Welding structure
Equipment compartment door the light quality aluminum alloy, with shutter doors, lightweight and reliable.
Internal structure the inner frame for the introduction of aluminum lap technology, can maximize space utilization and variability within the equipment, users can request allocation of various sliding bracket, carriage, rotating frame, and high strength plastic storage box and so on, the structure from the space utilization, aesthetic appearance, ease of handling equipment have reached the international advanced level.

Electrical system

The main lights in the cab at the top of the long row of lights, configure the 100W alarm control system; a strobe lights installed on both sides and the middle of each compartment (two red and blue), on both sides of the vehicle is provided with LED side lights installed below the rear side marker lamps, after the installation of the contour light.

Industrial 206kw Water Foam Fire Truck Double Cabin Howo Chassis 4×2 DriveIndustrial 206kw Water Foam Fire Truck Double Cabin Howo Chassis 4×2 Drive

FAQ:

1. Q:Are you a factory or a trade company?

A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.

2. Q:Where is your factory located?

A:We are located in Shanghai Province,China.

3. Q:What's your payment method?

A: T/T and L/C are preferred.

4.Q:Do you arrange shipment for the vehicles?

A:Yes, we can arrange shippment based on trade terms.

5. Q: How is the packing?

A:All the packing comply with exporting standard.

Any other questions, please do not hesitate to contact with us.
