Chicken Blast Freezer Room, Walkin Cooler Room, Industrial Blast Freezers Storage

Cold Storage Room just like a big dimension of fridge to keep food fresh and store long time.it is popuar and wide used in hotel,restaurant,supermarket,fruit & vegetable whole sale center,meat & fish processing station,slaughter house,sea food market etc.
1.Cold Storage room chamber:We call small dimension cold room as cold chamber from 5CMB to 50CBM and the compressor power is from 0.5HP to 5HP mono-block refrigeration unit. this kind of refrigeration unit already finished installation before shipment. customer just need to open a hole from wall panel or ceiling panel.fix the mono-block unit in the hole,connect power supply and open switch to run compressor.it has two temperature range.one is moddle high temperature from 0C to -5C to store fruit & vegetable.one is -18C to store frozen meat.
2.Cold Storage room chiller:We also call it middle & high temperature cold room from +5C to 0C to store fruit & vegetable. customer just need to inform us cold room outside dimension. we will work out compressor power and evaporaor cooling capacity and quote best price.
3.Cold Storage room freezer:We call it middle & low temperaure cold room from 0C to -18C to store frozen meat and fish. customer just need to inform us cold room outside dimension.we will offer compressor model and evaporator model with technical parameter and quote best price.
4.Cold Storage Cold room deep freezer:We call it low temperature cold room from -18C to -25C store sea food and special meat and ice-cream.customer just need to inform us cold room outside dimension or how many tons of food. we will offer all solutions with best price.
5.Blast freezer:It freezes fresh meat or fish to -35C in the cold room and meat center one point temperaure is from -15C to -18C in a short time.Actually. blast freezer is a meat processing equipment.

Options:

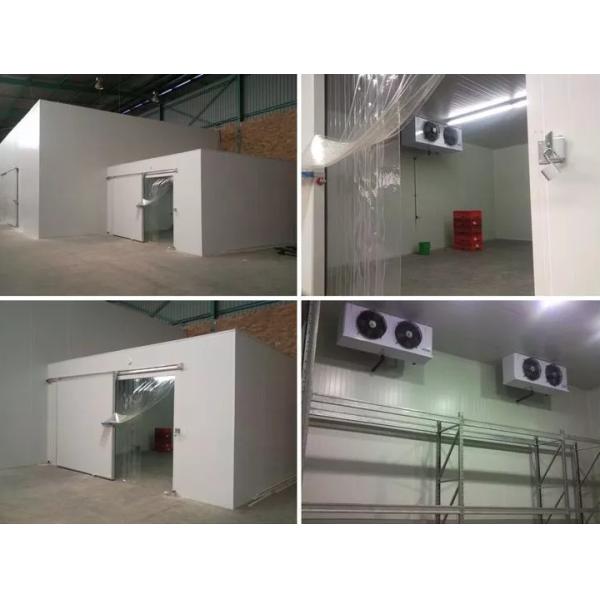

Product pictures:

Cold Storage Doors:
1).Swing door and Sliding door available.
2).Swing door: Manual, Automatic available etc.
3).Door panel made with special pressing technology PU material.
4).Door frame: color steel or stainless steel.
5).With Heater and anti-stuck system.
Hinged doors are of various types such as single leaf or double leaf , overlapping or flush . These doors are always open in the outward direction towards either left or the right .

Polyurethane sandwich panels are polyurethane insulation sandwich panels for buildings, also known as leakproof sandwich roof panels, PU panels, etc. It is a widely used and potential energy-saving building envelope material. It is also a new energy-saving plate advocated and promoted by the Ministry of National Construction.The PU panel can be customized according to customers' requirement of cold room temperature.The panel thickness ranges from 50 -200 mm(50 mm,75 mm,100 mm,120 mm,150 mm,200 mm)

Packaging and Loading:
