Supermarket Frozen Food Storage Room PU Modular Chiller
Supermarket Frozen Food Storage Room PU Modular Chiller
Supermarket Frozen Food Storage Room PU Modular Chiller
Supermarket Frozen Food Storage Room PU Modular Chiller
Specifications
Brand Name :
EASYCOOL
Model Number :
SR-2M
Certification :
ISO2001
Place of Origin :
Foshan City
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50000pcs/year
Delivery Time :
10 days
Packaging Details :
Carton
Name： :
Cold storage
Temperature: :
Adjustable
Refrigerant: :
R404A/R22 or others
Panel: :
Cold room panels with cam lock
Dimension(L*W*H): :
Customized
Compressor brand: :
Emerson Copeland or Bitzer or others
Doors: :
Hinged door , swing door , sliding door
Panels Cover: :
Painted steel sheet , stainless , aluminum
Warranty :
1 Year
Weight :
Customized
Product name :
Cold Storage / Cold room
Usage :
Meat,Food,Fish
Functions :
Frozen Foods,Fresh-keep
Control system :
Defrosting Automatic Control
Description

Supermarket Frozen Food Storage Room PU Modular Chiller

The cold storage is a warehouse creating the suitable humidity and cold condition with the use of cooling facility which is also known as the refrigerated storage. It is a place to process and store the products. It can get rid of the influence of the climate , prolong the storage period of various products to adjust the market supply.
Easyman cold room solutions is mainly used for the constant-temperature storage of food, dairy products, meat, aquatic products,poultry, fruit and vegetable, cold drink, flower, green plant, tea,medicine, chemical raw material, electronic instrument, etc. Easyman team would like to provide you best one-stop solutions.

Options:

Refrigeration system

Compressor: Bitzer, Copeland etc for choice,
Condenser units: Water cooled, air cooler or water and air cooled for choice.
Evaporator: Air cooler and grid evaporator for choice.

Electric system

Siemens electric components or the other brand for choice.

Insulation panel, cold store panels

Material: Polyurethane (PU), metal sheet.
Density of PU: 38~40 kg/m3, 40~42kg/m3, 42~45kg/m3 for choice,
Metal sheet: Painted steel sheet, stainless steel sheet, aluminium steel sheet or mixed together for choice.
Thickness of panel: 75mm, 100mm, 110mm, 150mm and 200mm for choice.

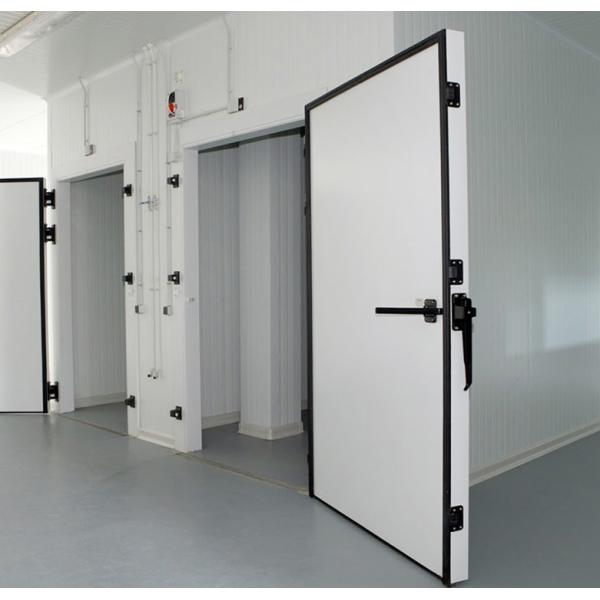

Cold store door

Sliding door and swing door for choice,
Sliding door: Manual opened, automatic opened for choice.

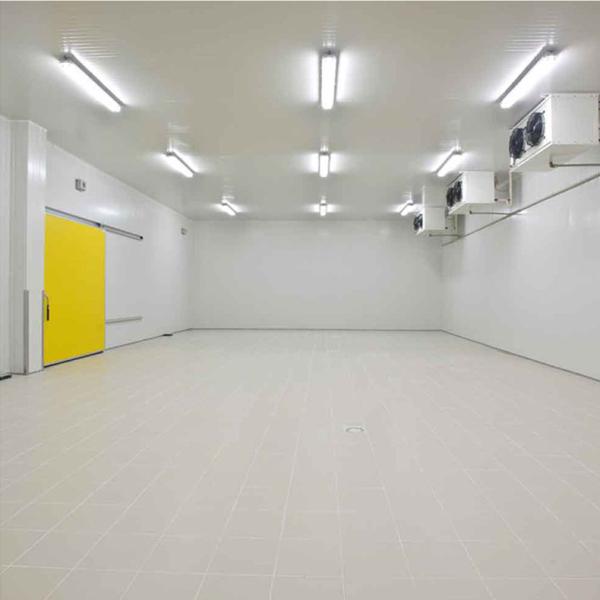

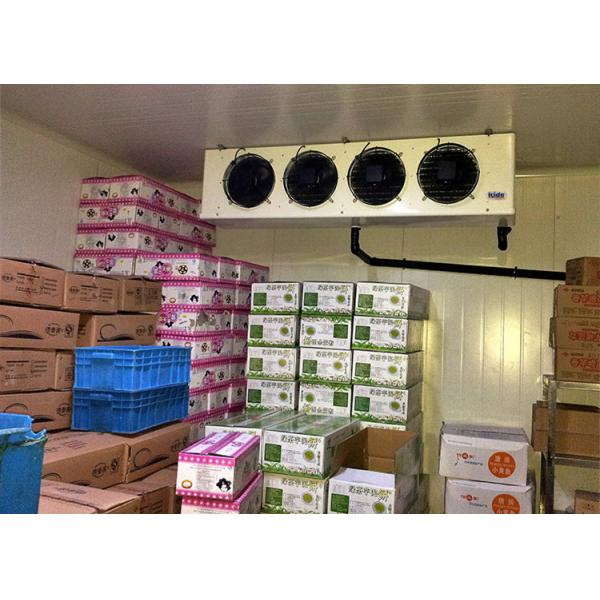

Our previous projects:

Supermarket Frozen Food Storage Room PU Modular Chiller

Supermarket Frozen Food Storage Room PU Modular Chiller

Supermarket Frozen Food Storage Room PU Modular Chiller

Detailed description:

Supermarket Frozen Food Storage Room PU Modular Chiller

PU Sanddwich Panel
1. The panel is coated with stainless steel and plastic color steel.The metal plate and the heat insulating core material are injected with heavy pressure injection machine one time and bolding .Strengthen the strength and rigidity of the board.
2.Adopt the concave and convex groove form,and the inner eccentric fishing lock box is use and two boards are sealed with a sealing material,so that our panel have good heat insulation.

Cold Room Panel (fish/meat/vegetable/medical using cold room)

Thickness of cold storage panel

Application temperature

50mm

Temperature ≥10°C

75mm

Temperature -5°C or above

100mm

Temperature -5'C~-20°C or above

150mm

Temperature -18'C~-35°C or above

200mm

Temperature ≤-35°C

Supermarket Frozen Food Storage Room PU Modular Chiller

Condensing Unit
Main Features
1. Save energy ,provide cooling capacity on demand,and operate at half load.
2.Modular combination, compact structure and small footprint
3.Automatic control system,simple operation.
4.Wide range of applications,total power from 40HP to 640HP ,temperature 12.5℃ to -60℃.
5. Divided into high temperature screw unit ,low temperature screw unit,integral chiller,single machinedouble stage screw unit ,suitable for various occasion.

Supermarket Frozen Food Storage Room PU Modular Chiller

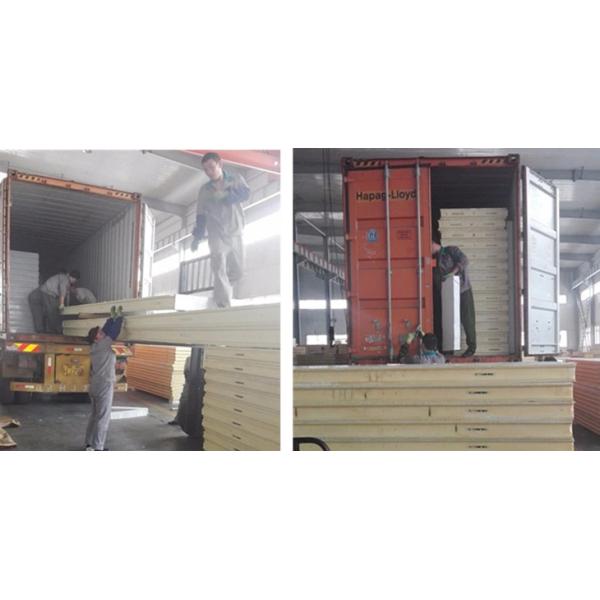

Packing and Delivery:

Supermarket Frozen Food Storage Room PU Modular Chiller
