Prefabricated Energy-saving Cold Room Food Storage Room
Prefabricated Energy-saving Cold Room Food Storage Room
Prefabricated Energy-saving Cold Room Food Storage Room
Prefabricated Energy-saving Cold Room Food Storage Room
Specifications
Brand Name :
EASYCOOL
Model Number :
SR-1M
Place of Origin :
Foshan City
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50000pcs/year
Delivery Time :
10 days
Packaging Details :
Carton
Certification :
ISO2001
Name： :
cold room, cold storage room
Temperature: :
25C~-20C
Voltage: :
318V
Wall panel: :
PU Panel
Cold room doors: :
Sliding door
Condenser: :
Air Cooled Type
Refrigerant: :
R22,R404A or others
After-sales Service Provided: :
Food Freezer Storage
Warranty: :
1 year
Description

Prefabricated Energy-saving Cold Room Food Storage Room

Our modular walk in cold storage series is an integrated family of sandwich panels designed for quick cold room assembly. The panel configuration has been reduced to a minimum, so the overall effect is to offer the clients maximum design possibilities for cold rooms with a minimum amount of panels required on the site. All products from the modular range can be easily assembled without the need for special tools.

Our advantage:
1. Over 10 years manufacturing experience, products sell well in many countries, full experience support to give you most suitable system
2. Compressor, we use all new origin famous brand, Bitzer, Copeland, Tecumseh, Maneruop or brand you appointed. other accessories are same,
3. Professional engineer support, can assist you from design to after sale service.

Specification for Cold room:

Dimension

Length x width x height customized

Panel

Polyurethane foam insulation panel,38~42kg/m3, fire resistance

Thickness of panel

75mm,100mm, 120mm,150mm,180mm,200mm optional

Surface steel

color steel or stainless steel option

Panel Connection

cam lock connection

Door type

sliding door, hinged door option, size can be customized

Cold room temperature

-35~+15'C

Refrigeration unit

Bitzer Tecumseh, Copeland compressor for options

refrigerant

R134a, R404a, R507c

voltage

380V/3ph/50~60hz, 230V/3PH/50~60HZ.

application

Seafood, meat quick freezing, and fruit and vegetable fresh keeping

Polyurethane foam panel advantage and specification:

Thickness(mm)

Temperature application(°C)

Weight(kg/m²)

R-value(m².k/w)

50

Above -5'C

12.8

2.28

75

above-15'C

13.8

3.42

100

above-15'C

14.8

4.55

120

above-15'C

15.7

5.6

150

above-15'C

16.8

6.82

200

above-15'C

18.8

9.12

Tolerance Control:

Length(mm)

Tolerance(mm)

Straightness

Length

Width

Thickness

500~3600

±3

0~3

±1

1/500

3600~6000

±4

0~3

6000~12000

±6

0~3

Our project:

Prefabricated Energy-saving Cold Room Food Storage Room

Prefabricated Energy-saving Cold Room Food Storage Room

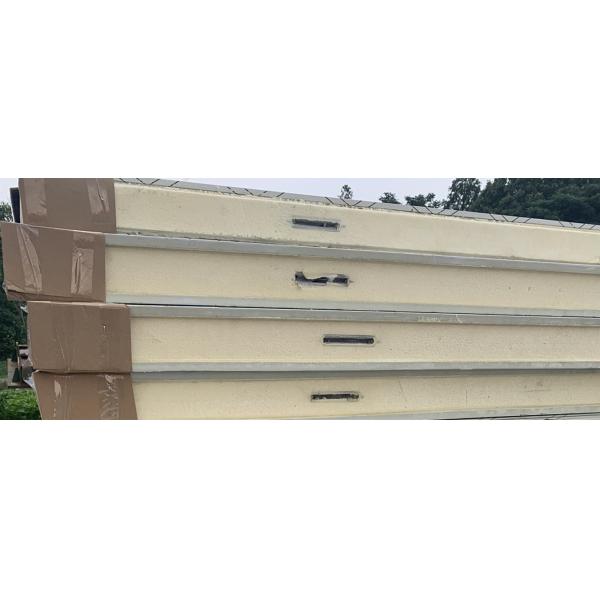

Thermal insulation panel:

Prefabricated Energy-saving Cold Room Food Storage Room

Compressor unit:

Prefabricated Energy-saving Cold Room Food Storage Room

Air cooled:

Prefabricated Energy-saving Cold Room Food Storage Room

Packaging and installation:

Prefabricated Energy-saving Cold Room Food Storage Room

Cold storage installation steps:

Step 1. Assembled all floor panels
Step 2. Assemble the wall panels
Step 3. Put up the roof panels and hang the air cooler to the roof panel
Step 4. Assemble the door[sliding door and hinged door optional]
Step 5. Fix the compressor unit at a place with good ventilation
Step 6. Connect the compressor unit and air cooler, vacuum the system and charge refrigerant
Step 7. All cable finally connected to the electricity box, get the power connected
Step 8. Finished and get ready for turning on after the compressor have been warmed up
