Specifications
Brand Name :
EASYCOOL
Model Number :
SR-IN284
Place of Origin :
Guangzhou
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000pcs/year
Delivery Time :
20 days
Packaging Details :
Carton
Certification :
ISO2001
Name： :
Cold Storage / Cold room
Door type: :
Sliding / Swing / Hinged Door
Temperature: :
-60-15 C
Voltage: :
220V/380V
Dimension(L*W*H): :
Customized according to your needs
Compressor brand: :
Biltzer or Copeland
Panel thickness: :
50mm/75mm/100mm/120mm/150mm/200mm
Control system: :
Electric Controlling Box
Warranty: :
1 year
Description

Custom Meat Cold Rooms Containerized Blast Freezer Walk In Cooler Refrigeration Equipment

Industrial Cold Storage Room just like a big dimension of fridge to keep food fresh and store long time.it is popuar and wide used in large hotel, restaurant, supermarket, fruit & vegetable whole sale center,meat & fish processing station,slaughter house,sea food market etc.

Customized cold storage:

Dimension

Length (m) *Width (m)*Height (m)

Refrigeration unit

Copeland / Bitzer/Frascold DORIN XUEMEI etc

Refrigeration type

air cooled / water cooled / evaporation cooled

Refrigerant

R134,R12,R22, R404A, R407,etc

Defrost Type

Electric/water/hot fluorine defrosting

Voltage

220V/50HZ,60HZ,380V/50HZ,60HZ

Panel

PU panel, 38~40±2Kg/m³, fire retardant:B2

thickness:50mm,75mm,100mm,120mm,150mm,200mm

Choose from according to the type of cold room

Type of door

Semi-buried door,sliding door,electric sliding door,Automatic return door,double swing door etc

Temperature

According to the type of goods

Application

Cold room,frozen room,Medical cold storage,Constant temperature room,etc.

Specification:

Type

Temperature

Storage goods

Panel thickness

Cold room

+5~-5℃

friut,vegetable,flower,wine,chocolate,egg,meat

100mm

frozen room

-10~-18℃

frozen fish,frozen meat,frozen poultry,etc

120mm

Low temperature room

-20~-35℃

fresh fish,fresh meat,fresh seafood,Blood

150mm

Extremely frozen room

0~+-80℃

electric,laboratory,Chemical industry,biopharmaceutical

200mm

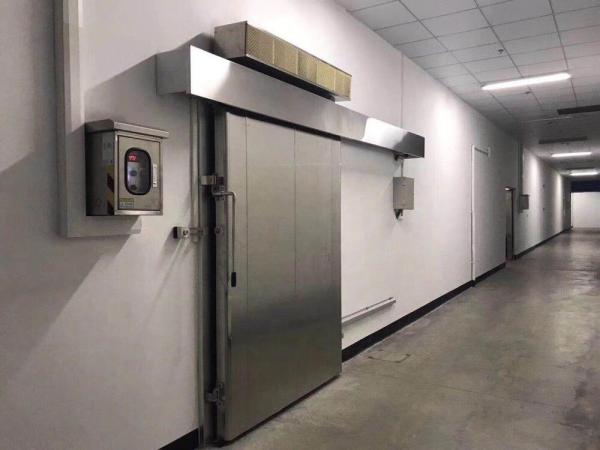

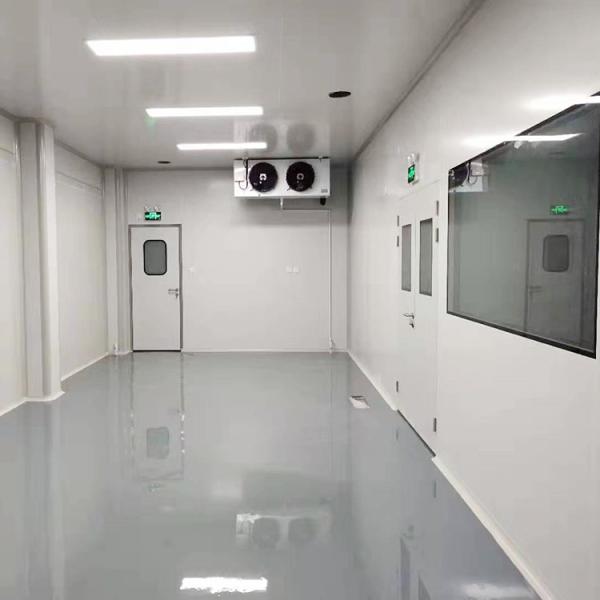

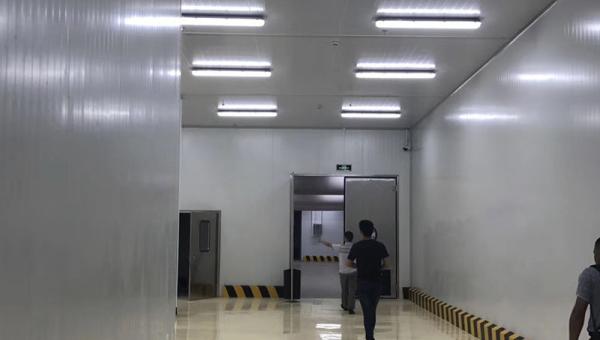

Our project:

Custom Meat Cold Rooms Containerized Blast Freezer Walk In Cooler Refrigeration Equipment

Compressor unit:

Custom Meat Cold Rooms Containerized Blast Freezer Walk In Cooler Refrigeration Equipment

Features:

1.Save energy ,provide cooling capacity on demand；
2.Modular combination, compact structure and small footprint
3.Automatic control system,simple operation.

Air cooled:

Custom Meat Cold Rooms Containerized Blast Freezer Walk In Cooler Refrigeration Equipment

Features: High strength; Excellent finish; Precisely designed;
Coil: use new high efficient aluminum wave fin, high heat conductivity, fast water discharge, use the high efficient copper pipe, high heat transfer; use the new liquid distributor, uniform frost.
Fan: low cost, high reliability, lower temperature- resistant and low noise external Rotor fans.
Defrost: use electric heating stainless steel pipe, high leak proofs at the end, anti-electric leakage and long life.
Casing: use the aluminium plate and stainless steel or cold plastic spraying plate, nice appearance and durable.
Maintenance: flexible to disassemble and lean.

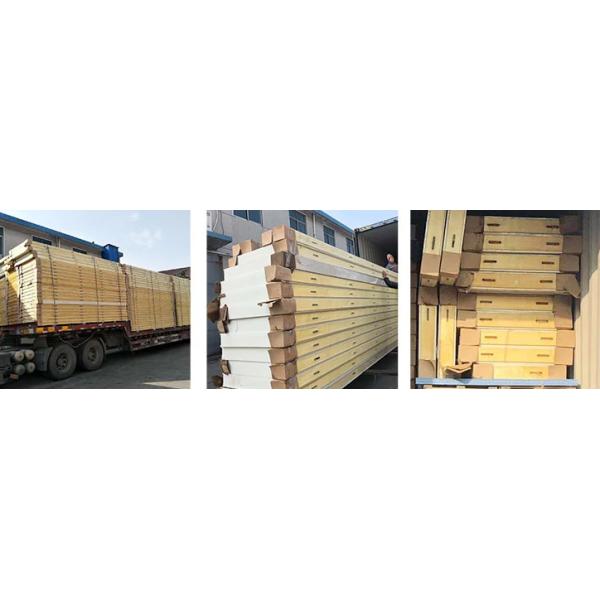

Thermal insulation panel:

Custom Meat Cold Rooms Containerized Blast Freezer Walk In Cooler Refrigeration Equipment

Cold room insulation panel:use 100%polyurethane insulation panel,density about 38~46kg/m3,with gasket,with flame retardant,panel thickness:100mm~200mm, standard width of panel is 960mm

Cold Room Tempreture

Thickness Of The Cold Room Wall and Proof

5—15 ℃

75mm

-15—5 ℃

100mm

-30—-15℃

150mm

Low the -30℃

200mm

Low temperature explosion-proof lamp:

Custom Meat Cold Rooms Containerized Blast Freezer Walk In Cooler Refrigeration Equipment

Cold storage lock:

Custom Meat Cold Rooms Containerized Blast Freezer Walk In Cooler Refrigeration Equipment

Cold storage installation:

Custom Meat Cold Rooms Containerized Blast Freezer Walk In Cooler Refrigeration Equipment

Our Services
1) Video service for installation
2) Accept OEM,ODM
3) 24 hours technical support and after sales services
4) Lifetime with professional engineer support.
5) Within 1 year, supply spare parts for free if the cold room for vegetables has manufacturer quality problem with convincing evidence.

Could you please provide information as below when you send the inquiry:
1. What’s the size of cold room?(Length×Width×Height(M))
2. What kind of products will put into the cold room?
3. Does the products freeze before put into the cold room?
4. What’s the stored time for products?
5. What’s the installation site of cold room?
